Circuit Diagram
WARNING:
This page is about a different car, the 2006 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

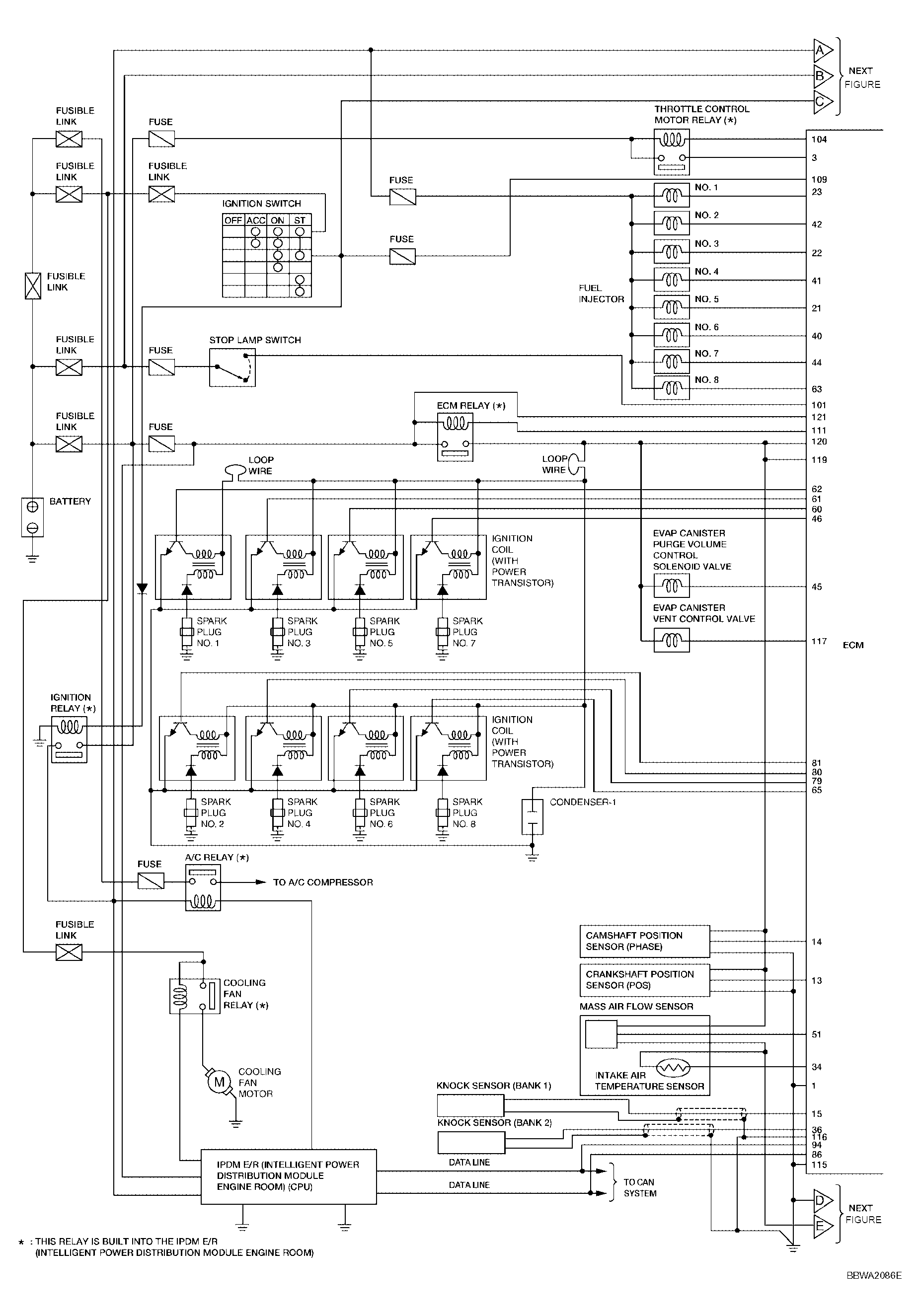

Fig 1: Circuit Diagram (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

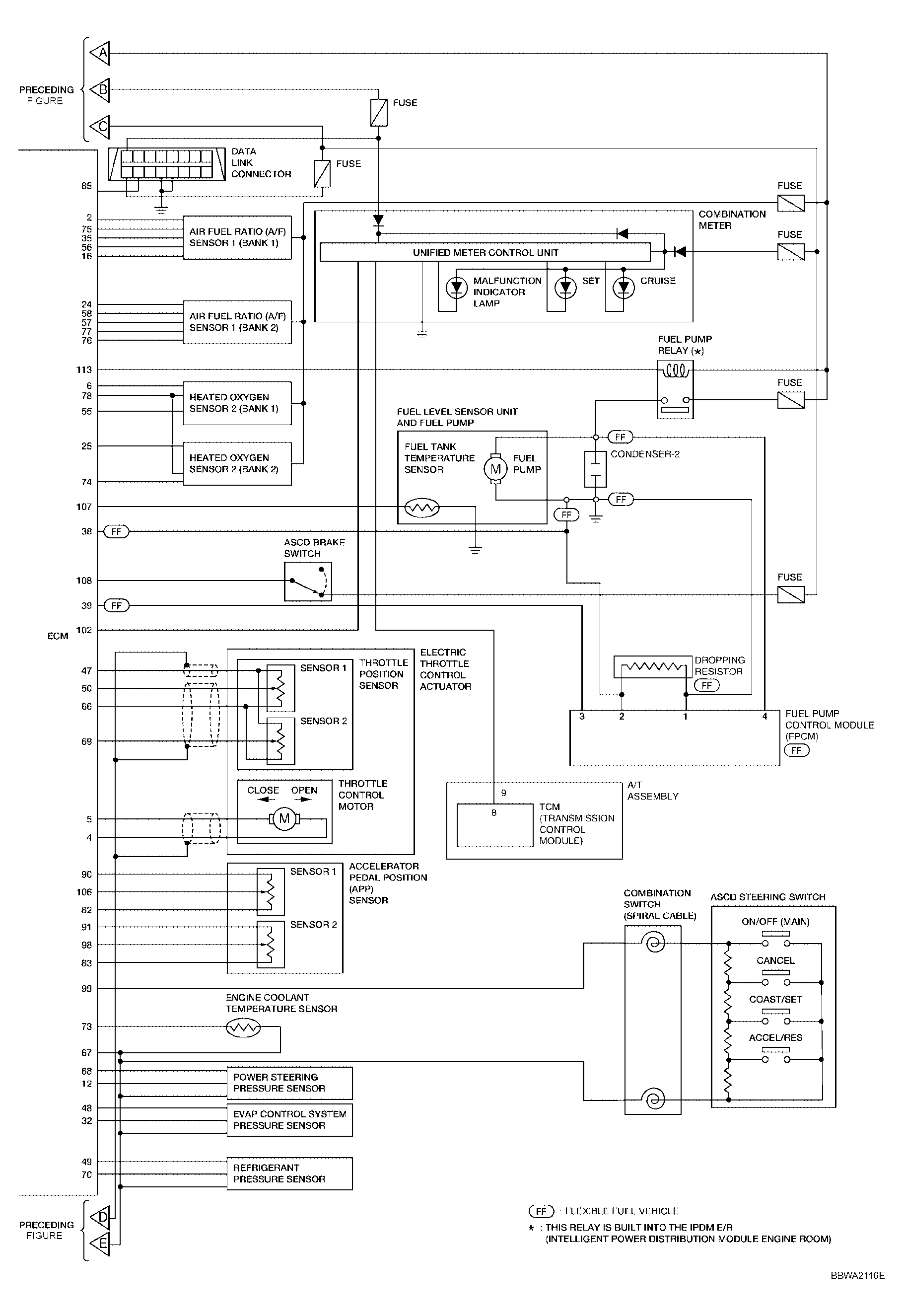

Fig 2: Circuit Diagram (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
