ASCD Clutch Switch

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Turn ignition switch OFF.
Disconnect ASCD clutch switch harness connector.
Check harness continuity between ASCD clutch switch terminals 1 and 2 under the following conditions.

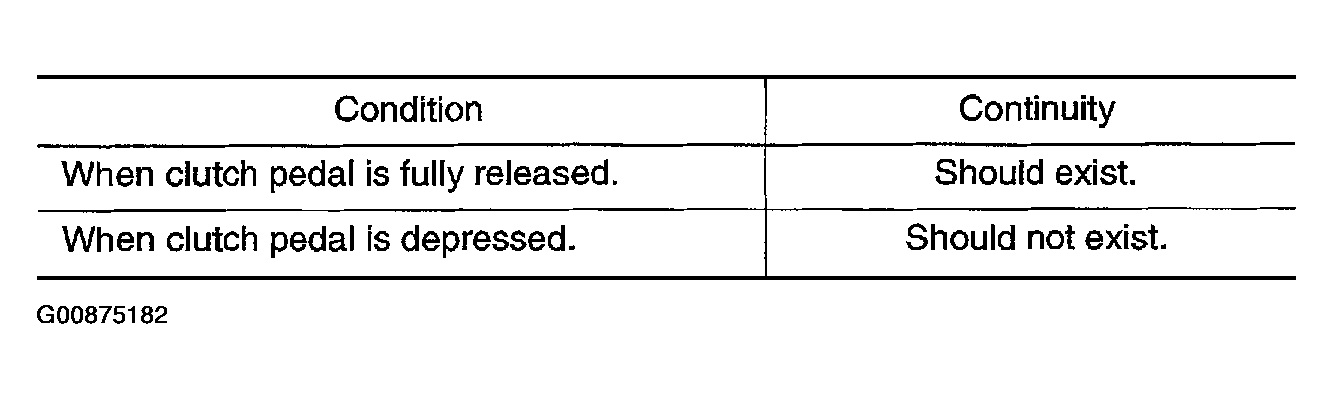

Fig 1: Test Parameters
Courtesy of NISSAN MOTOR CO., U.S.A.

If NG, adjust ASCD clutch switch installation, refer to "CLUTCH PEDAL ", and perform step 3 again.

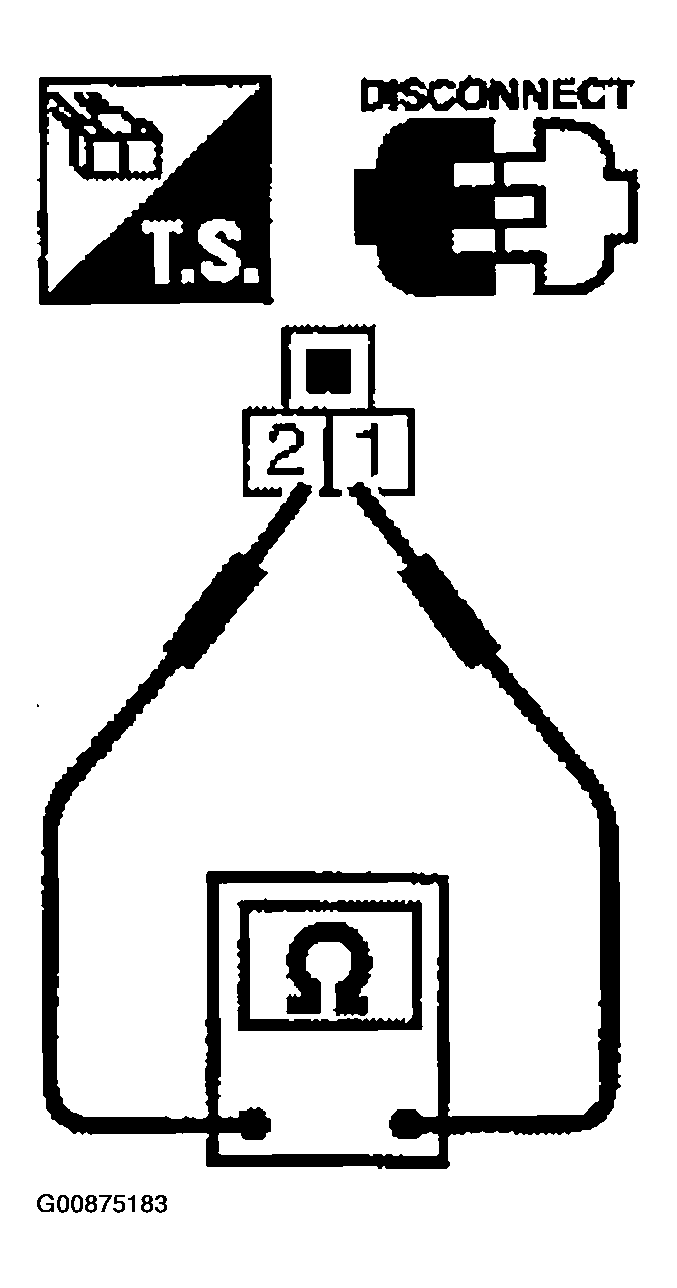

Fig 2: Checking Continuity
Courtesy of NISSAN MOTOR CO., U.S.A.
