Stop Lamp Switch

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch OFF.
  2. Disconnect stop lamp switch harness connector.
  3. Check harness continuity between stop lamp switch terminals 1 and 2 under the following conditions.

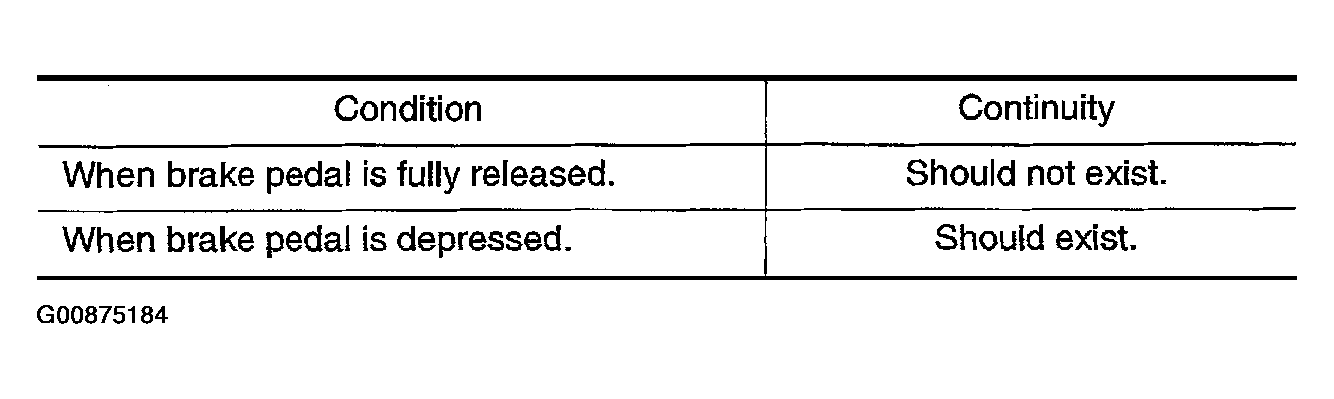

    Fig 1: Test Parameters
    G00875184Courtesy of NISSAN MOTOR CO., U.S.A.

    If NG, adjust stop lamp switch installation, refer to BRAKE PEDAL "ADJUSTMENTS ", and perform step 3 again.

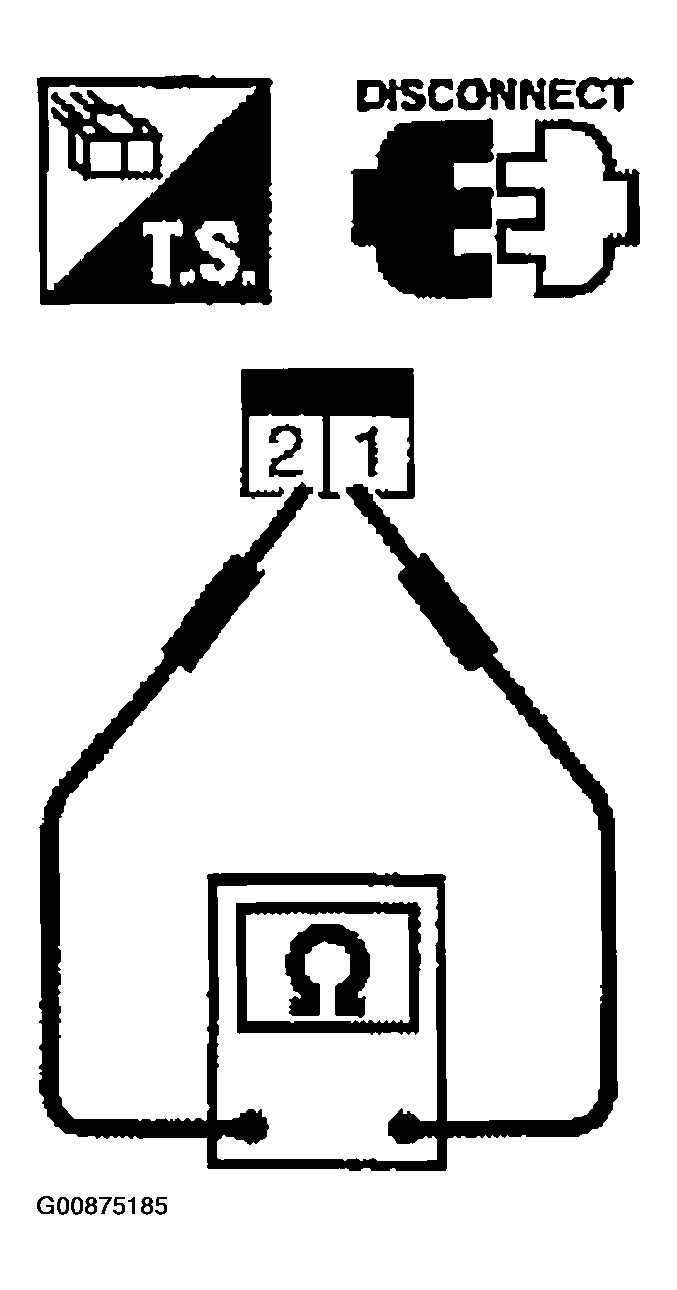

    Fig 2: Checking Continuity
    G00875185Courtesy of NISSAN MOTOR CO., U.S.A.
