1. Check Overall Function

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Check ASCD indicator under the following conditions.

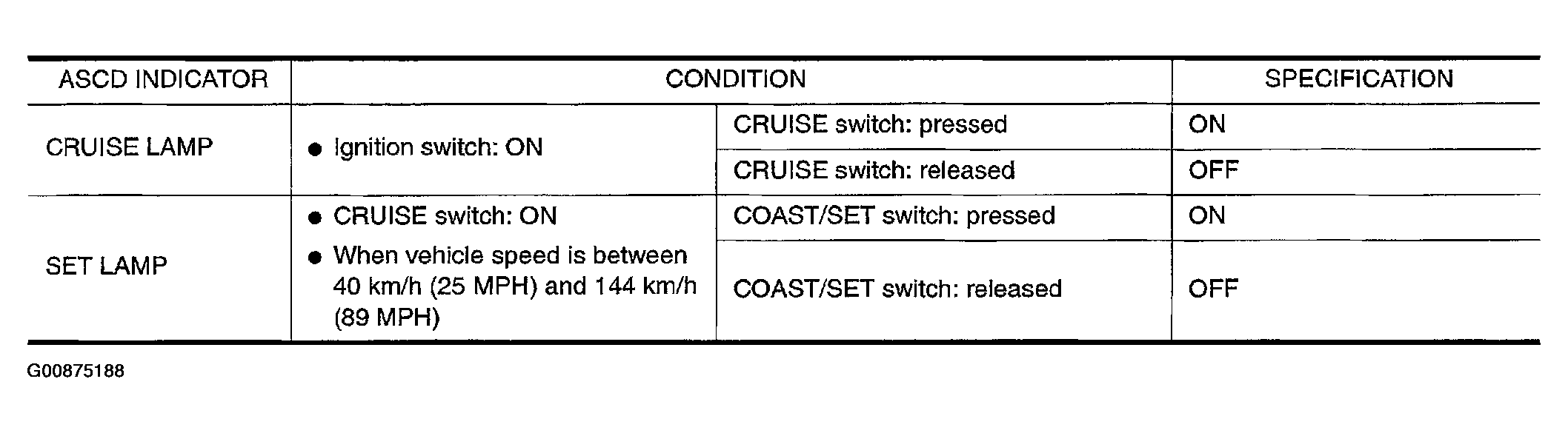

Fig 1: Check ASCD Indicator
G00875188Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

  1. OK : INSPECTION END  .
  2. NG : GO TO 2.
