Component Inspection: Condenser

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch OFF.
  2. Disconnect condenser harness connector.
  3. Check resistance between condenser terminals 1 and 2.

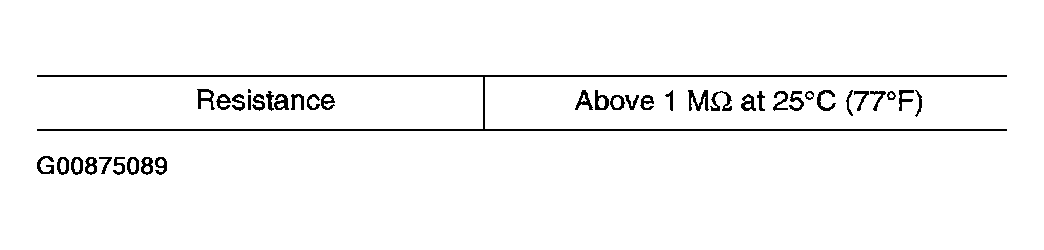

Fig 1: Test Specifications
G00875089Courtesy of NISSAN MOTOR CO., U.S.A.

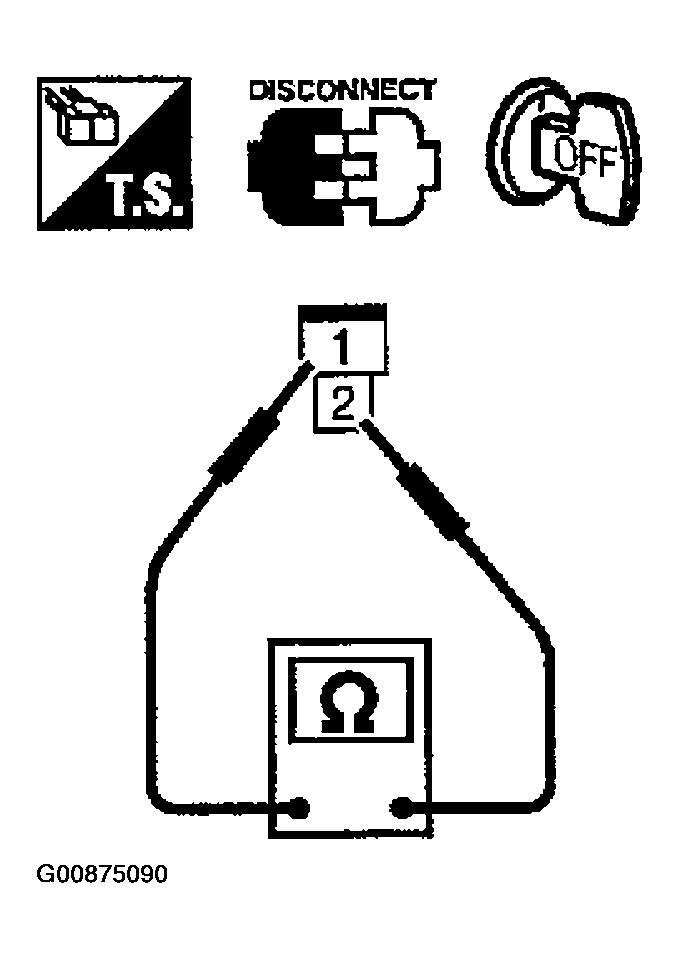

Fig 2: Check Resistance Between Condenser Terminals 1 And 2
G00875090Courtesy of NISSAN MOTOR CO., U.S.A.
