Component Inspection: Injector

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect injector harness connector.
  2. Check resistance between terminals as shown in Fig 1.
    1. Resistance: 13.5 - 17.5Ω [at 20°C (68°F)]

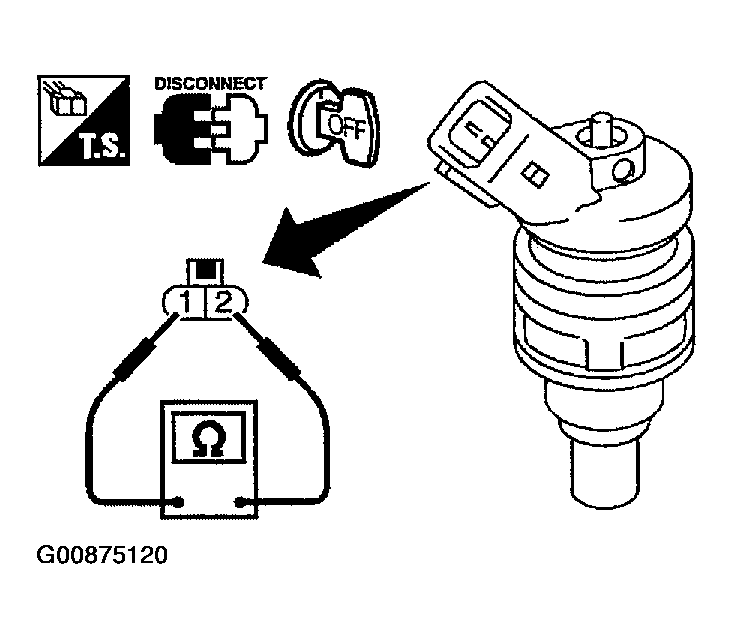

Fig 1: Check Resistance
G00875120Courtesy of NISSAN MOTOR CO., U.S.A.
