Component Description

WARNING: This page is about a different car, the 2006 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

A turbine type design fuel pump is used in the fuel tank.

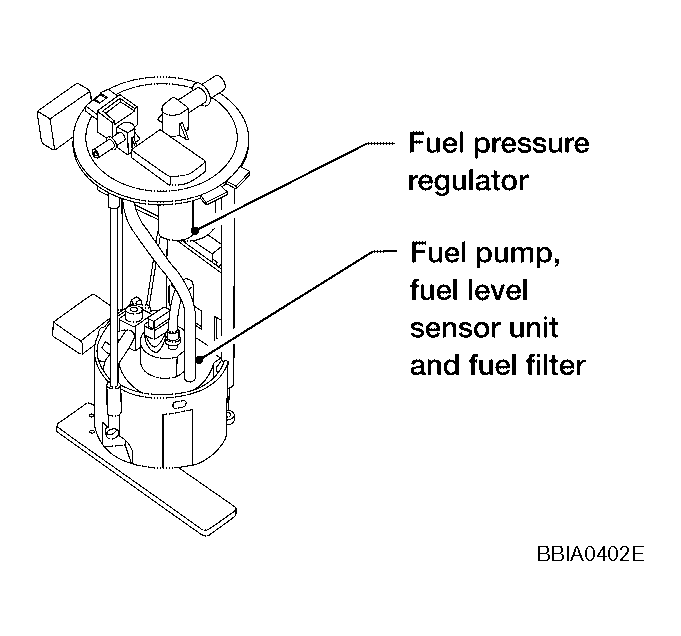

Fig 1: Identifying Fuel Pump, Fuel Level Sensor Unit And Fuel Filter
G04185613Courtesy of NISSAN MOTOR CO., U.S.A.
