Disassembly and Assembly: Assembly

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

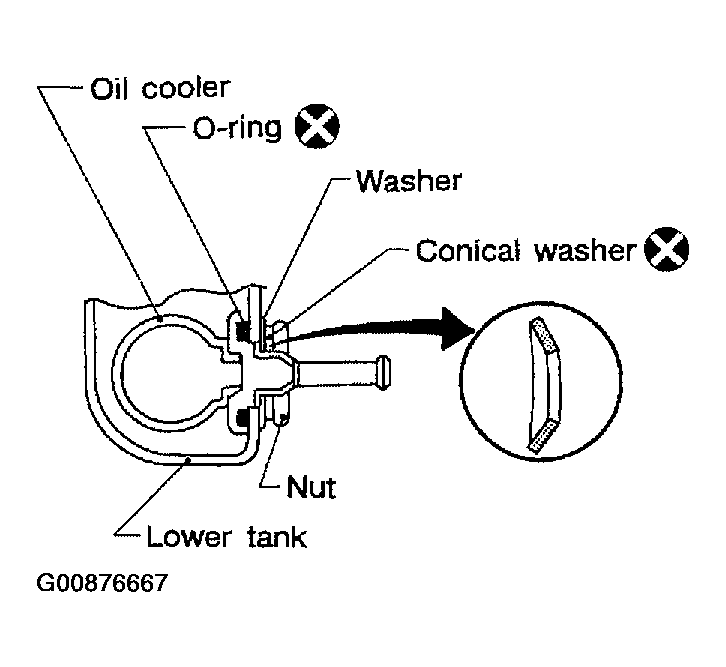

Install the oil cooler (if equipped).
NOTE: Pay attention to direction of conical washer.

Fig 1: Assembly (1 Of 7)
Courtesy of NISSAN MOTOR CO., U.S.A.

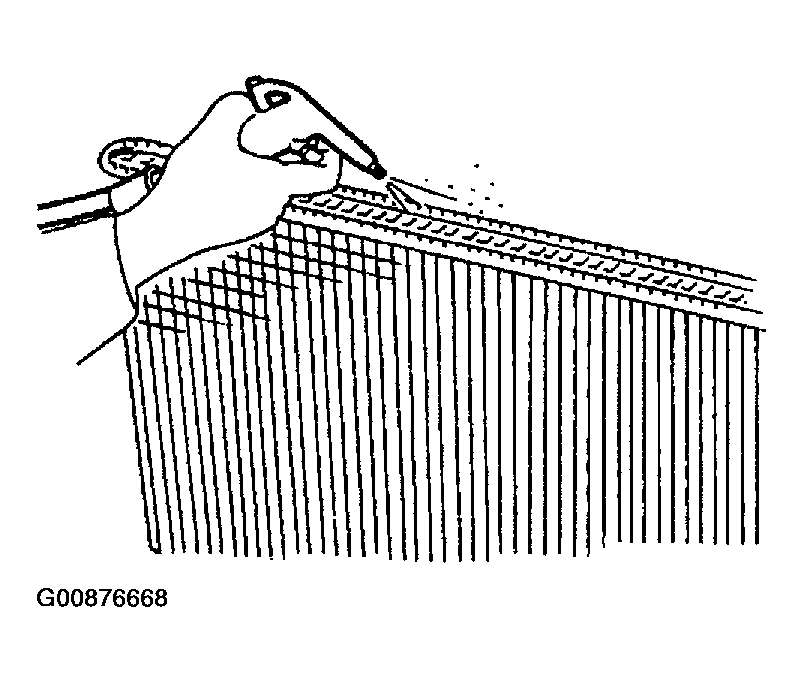

Clean the contact portion of the tank.

Fig 2: Assembly (2 Of 7)
Courtesy of NISSAN MOTOR CO., U.S.A.

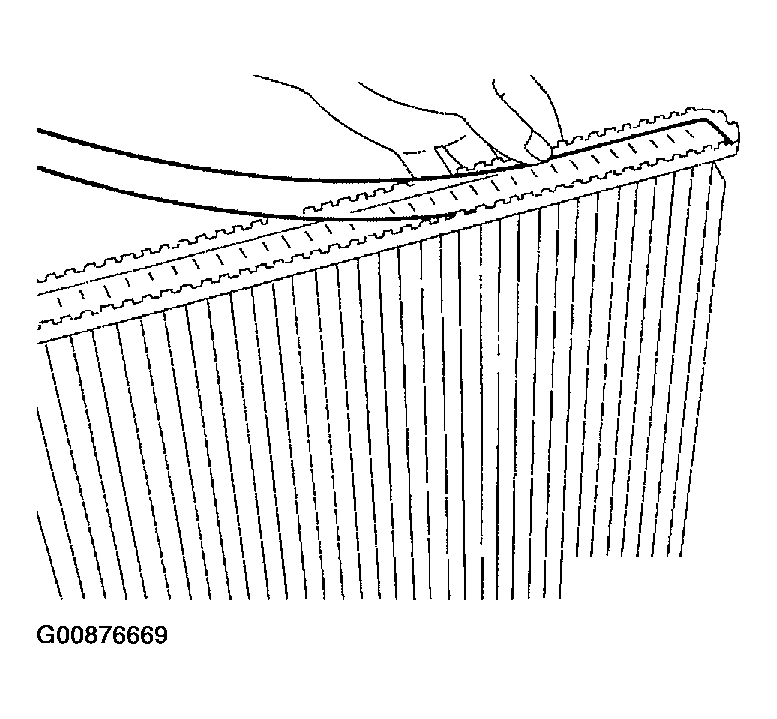

Install sealing rubber by pushing it in with your fingers.
CAUTION: Be careful not to twist sealing rubber gasket.

Fig 3: Assembly (3 Of 7)
Courtesy of NISSAN MOTOR CO., U.S.A.

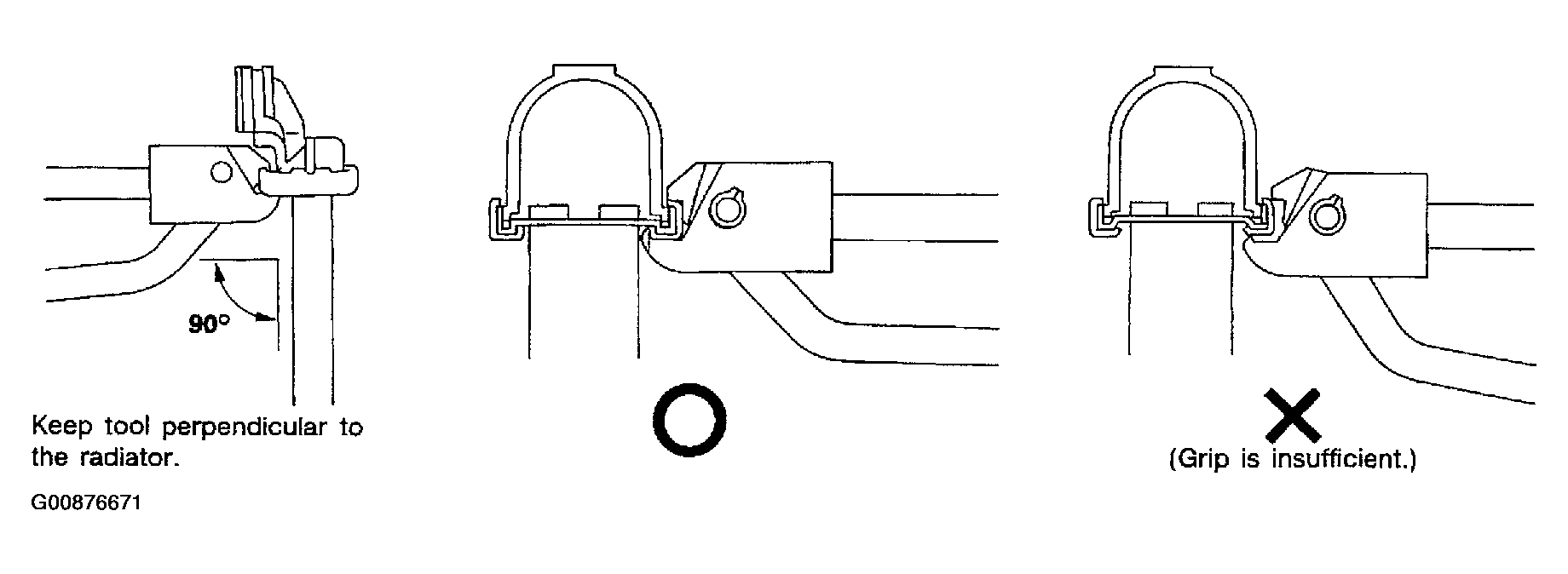

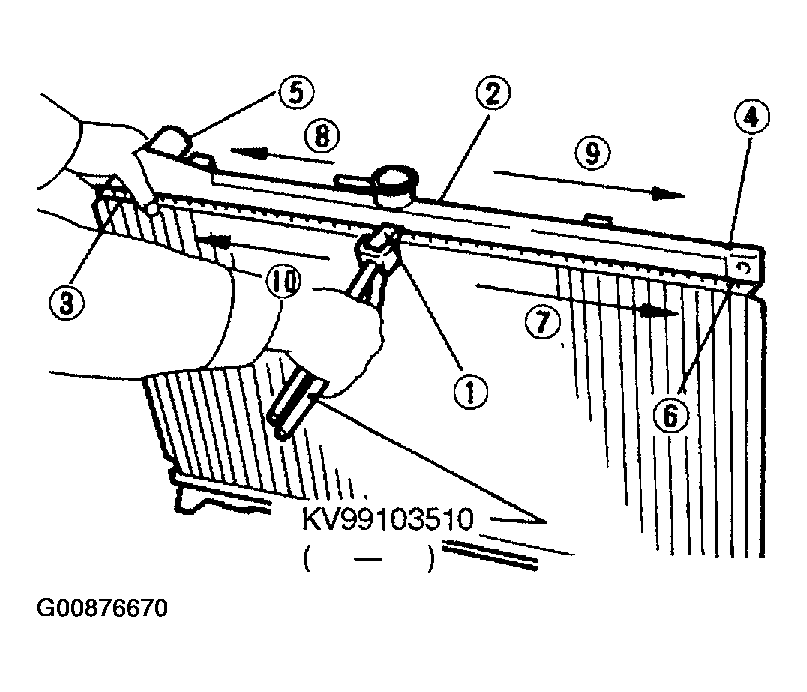

Crimp tank in specified sequence using Tool.

Fig 4: Assembly (4 Of 7)
Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 5: Assembly (5 Of 7)
Courtesy of NISSAN MOTOR CO., U.S.A.

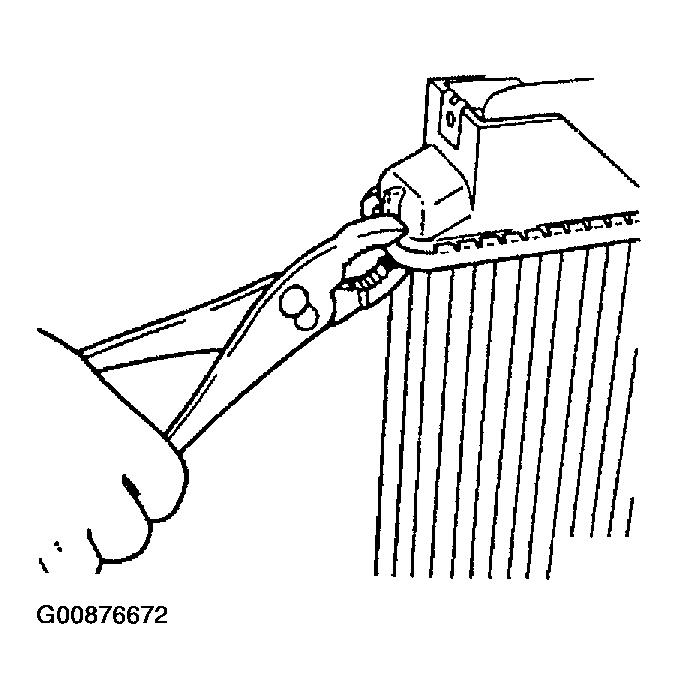

- Use pliers in the locations where Tool cannot be used.

  Fig 6: Assembly (6 Of 7)
  Courtesy of NISSAN MOTOR CO., U.S.A.
Make sure that the rim is completely crimped down.

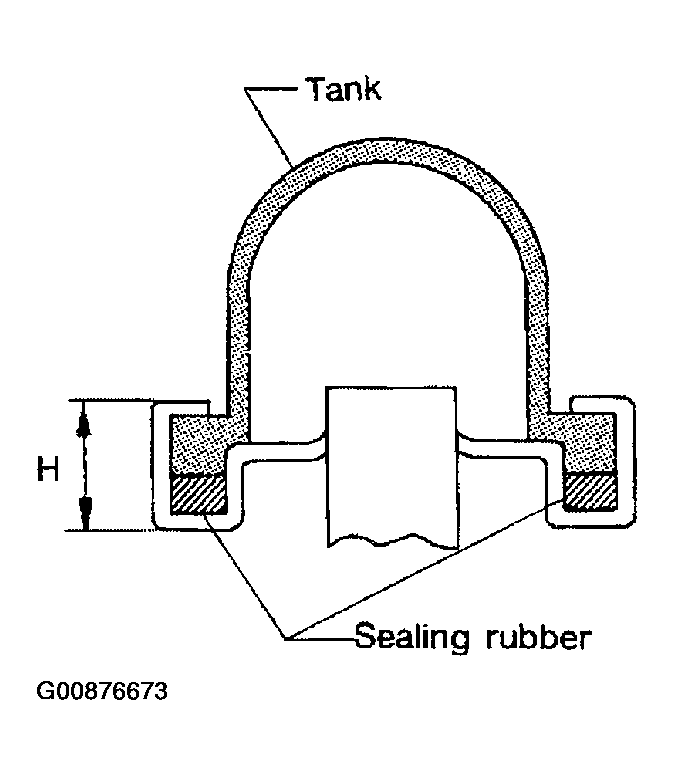

1. Standard height "H": 8.0 - 8.4 mm (0.315 - 0.331 in)
Confirm that there is no leakage.
Refer to "INSPECTION ".

Fig 7: Assembly (7 Of 7)
Courtesy of NISSAN MOTOR CO., U.S.A.
