Section 8 (Wheel Alignment Specifications & Adjustment Procedures): Specifications

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Use illustration for front wheel alignment specifications. See Fig 1.

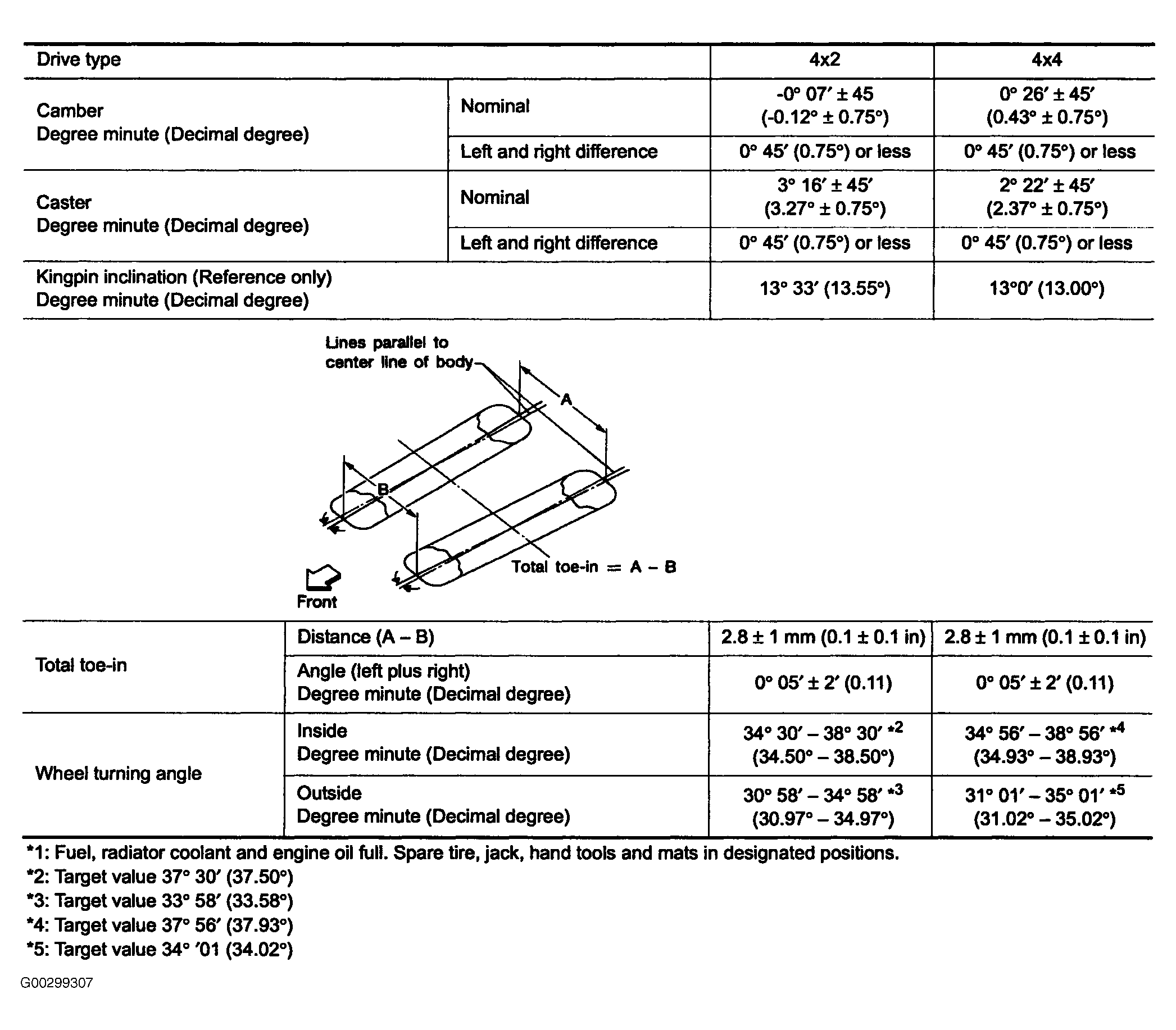

Fig 1: Front Wheel Alignment Specifications (Titan)

Courtesy of NISSAN MOTOR CO., U.S.A.
