Engine Coolant Temperature Sensor

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Check resistance as shown in the figure.

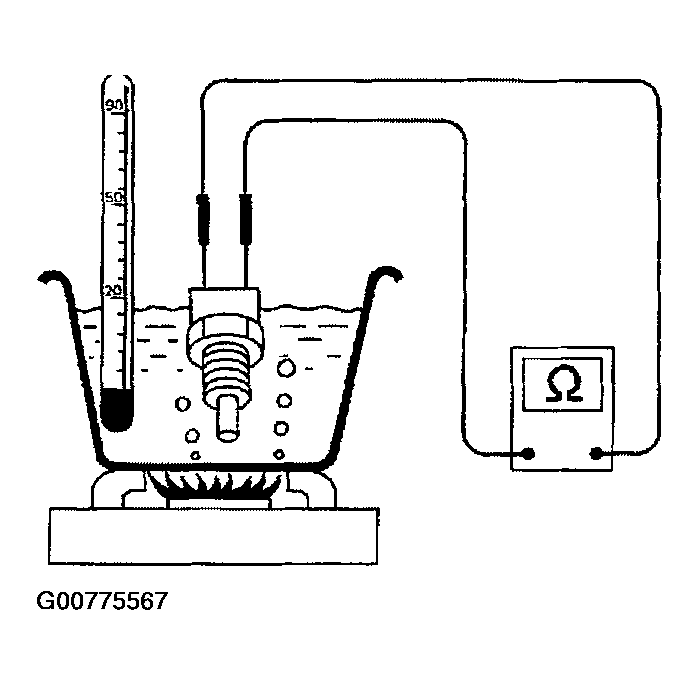

Fig 1: Checking Engine Coolant Temperature Sensor

Courtesy of NISSAN MOTOR CO., U.S.A.

< Reference Data >

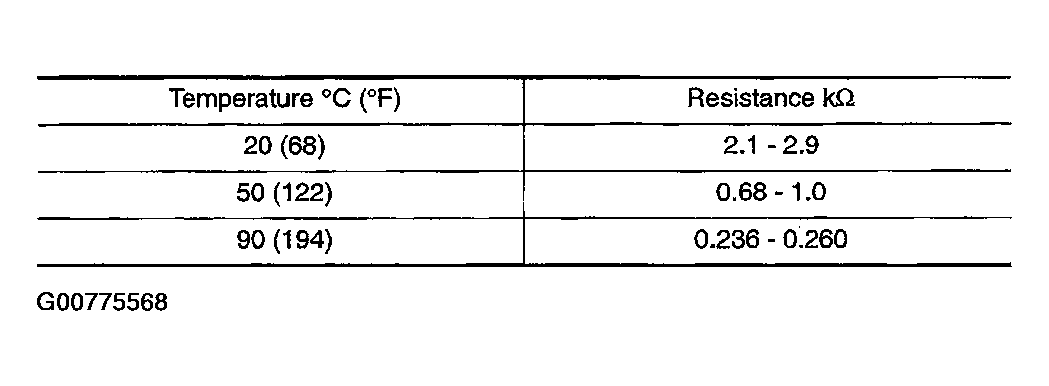

Fig 2: Reference Data Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

If NG, replace engine coolant temperature sensor.

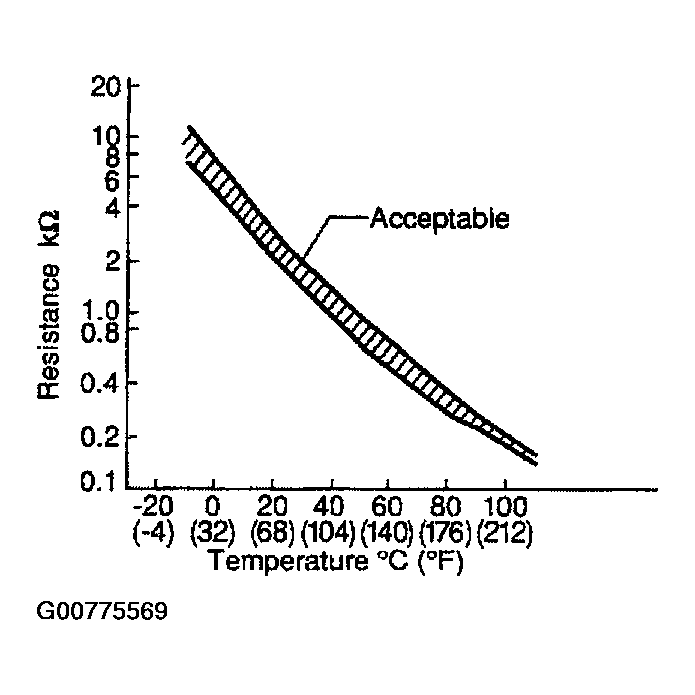

Fig 3: Acceptable Resistance And Temperature Graph

Courtesy of NISSAN MOTOR CO., U.S.A.
