With CONSULT-II

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch ON.
  2. Select "DATA MONITOR" mode with CONSULT-II.
  3. Start engine and let it idle for at least 60 seconds.
  4. If 1st trip DTC is detected, go to DIAGNOSTIC PROCEDURE  .

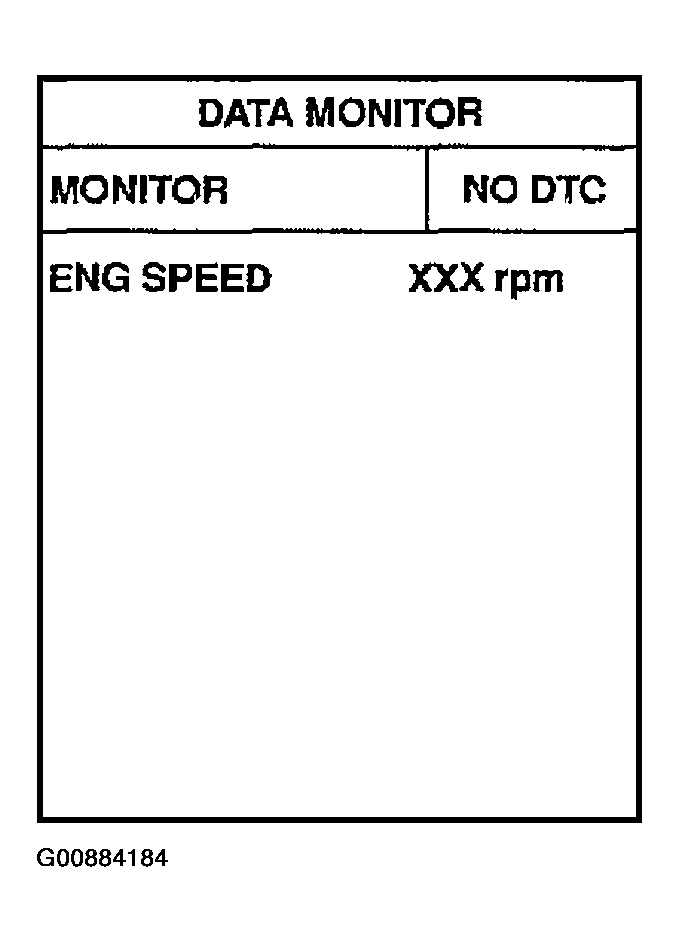

    Fig 1: Displaying Data Monitor Screen
    G00884184Courtesy of NISSAN MOTOR CO., U.S.A.
