With CONSULT-II

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Start engine (TCS switch or VDC switch OFF).
  2. Select "DATA MONITOR" mode with CONSULT-II.
  3. Drive the vehicle for at least 5 consecutive seconds under the following condition.

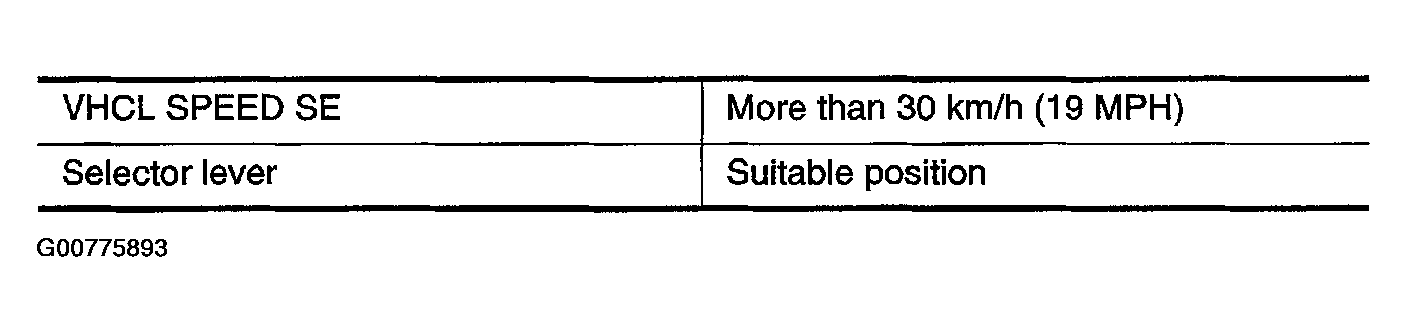

    Fig 1: Vehicle Conditions For Testing
    G00775893Courtesy of NISSAN MOTOR CO., U.S.A.

    If DTC is detected, go to DIAGNOSTIC PROCEDURE  .

    If DTC is not detected, go to the following step.

  4. Drive the vehicle for at least 5 consecutive seconds under the following condition.

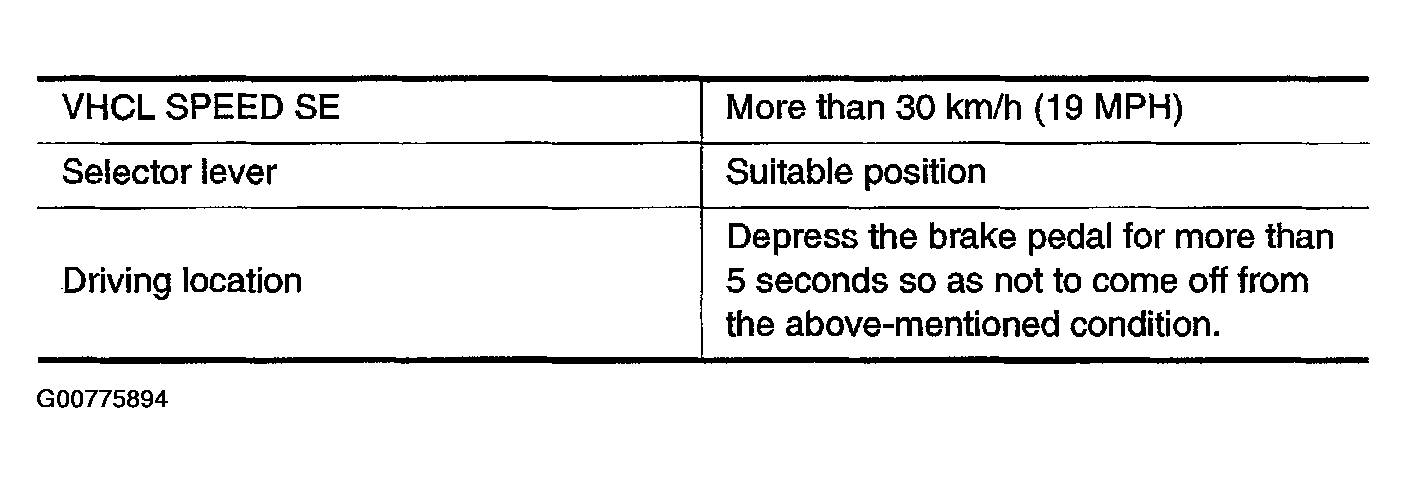

    Fig 2: Vehicle Conditions For Testing
    G00775894Courtesy of NISSAN MOTOR CO., U.S.A.
  5. If DTC is detected, go to DIAGNOSTIC PROCEDURE  .
