DTC P2135: TP Sensor: Wiring Diagram

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

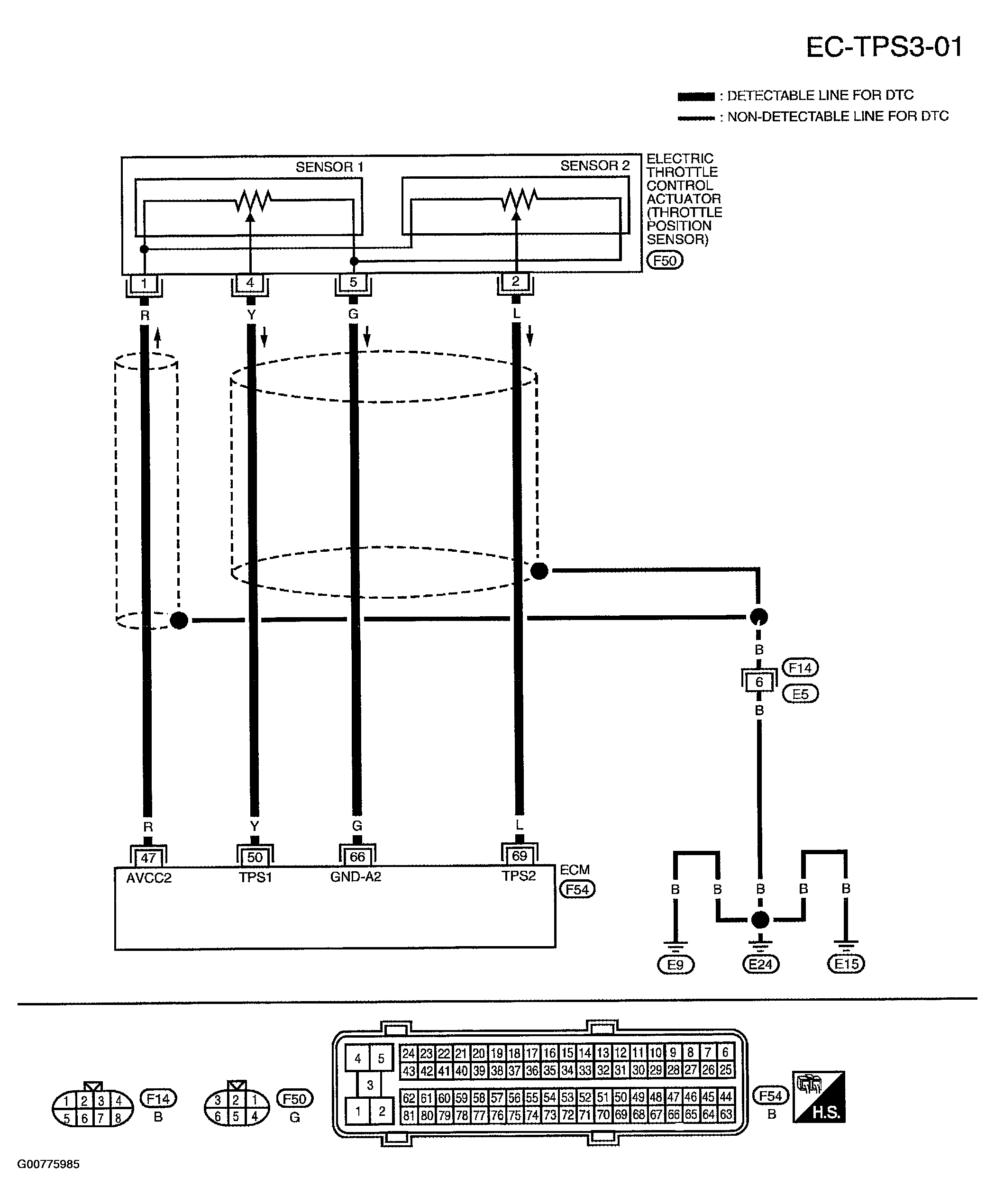

Fig 1: Displaying EC-TPS3-01 Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

Specification data are reference values and measured between each terminal and ground.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

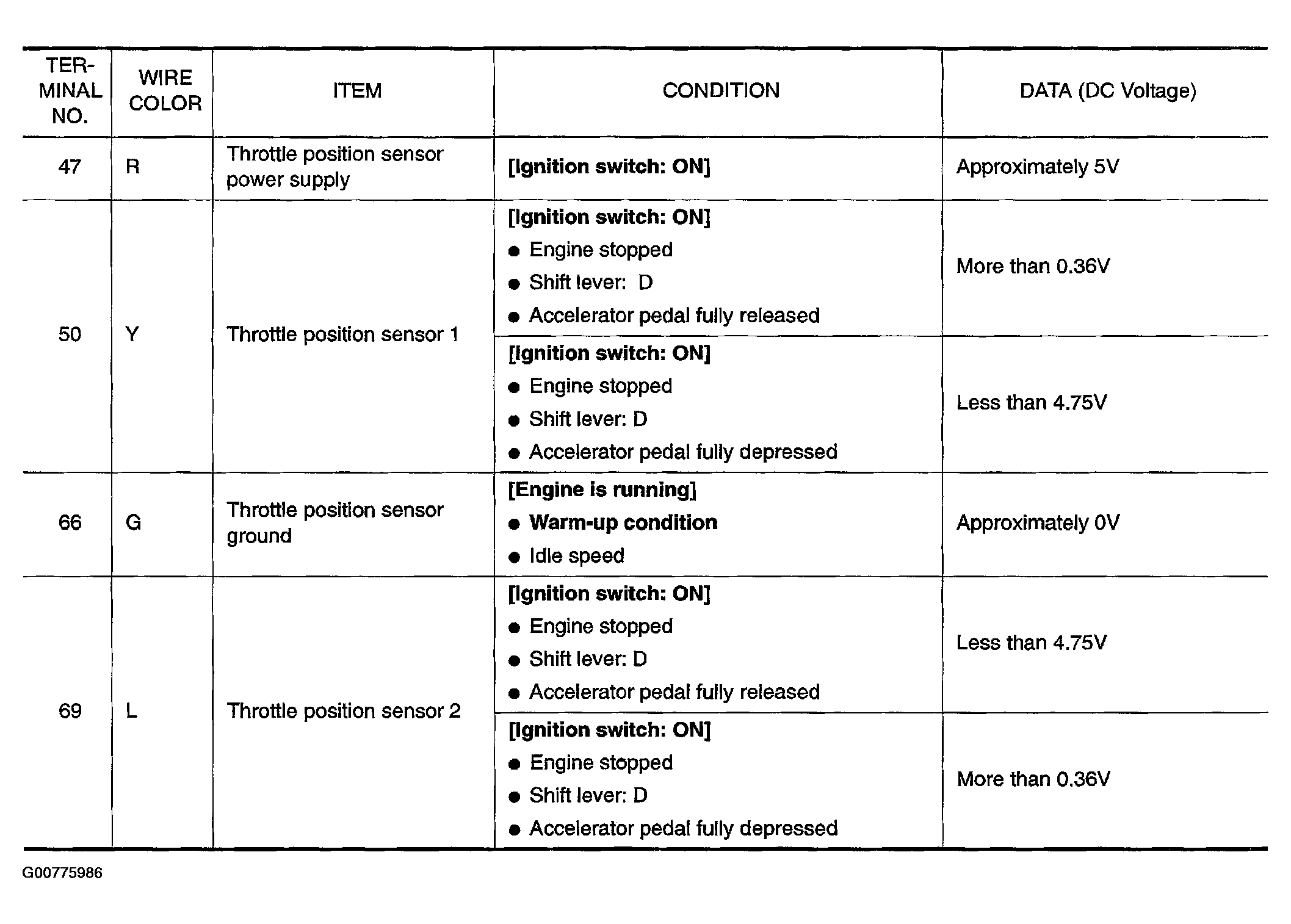

Fig 2: Identifying Terminal Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.
