Diagnostic Procedure

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK GROUND CONNECTIONS
    1. Turn ignition switch OFF.
    2. Loosen and retighten ground three screws on the body. Refer to GROUND INSPECTION  .

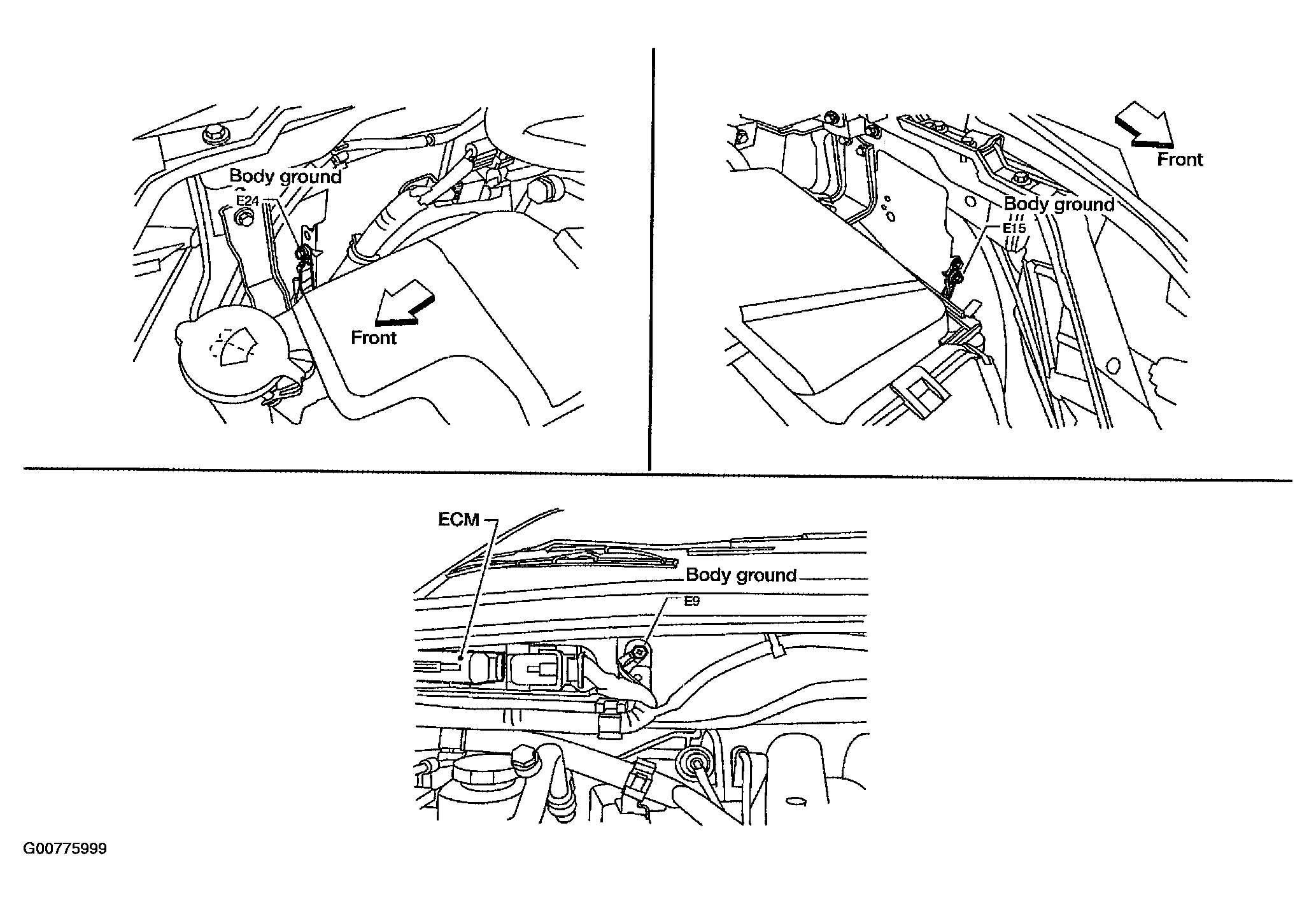

      Fig 1: Checking Ground Connections
      G00775999Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK: GO TO 2.
    2. NG: Repair or replace ground connections.
  2. CHECK APP SENSOR POWER SUPPLY CIRCUIT
    1. Disconnect accelerator pedal position (APP) sensor harness connector.

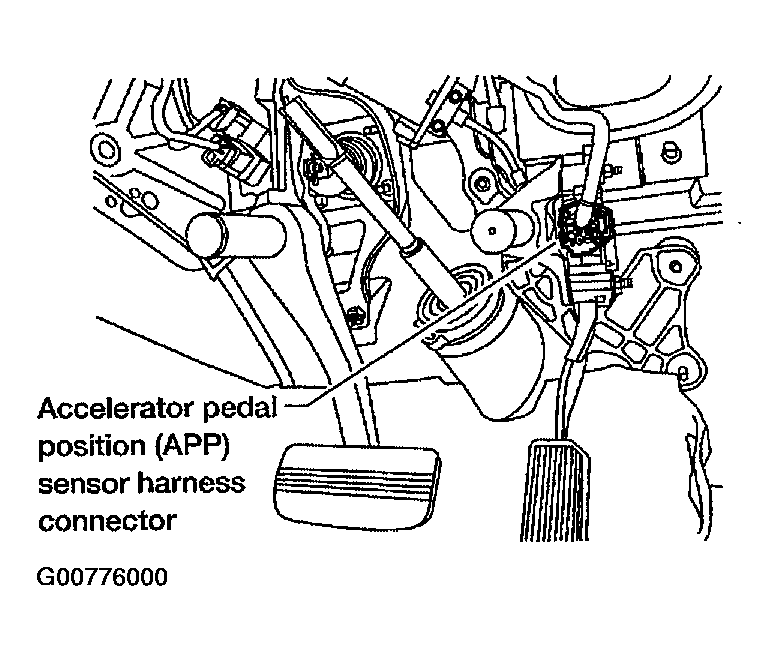

      2. Fig 2: Disconnecting Accelerator Pedal Position (APP) Sensor Harness Connector
      G00776000Courtesy of NISSAN MOTOR CO., U.S.A.
    2. Turn ignition switch ON.
    3. Check voltage between APP sensor terminals 6, 7 and ground with CONSULT-II or tester.

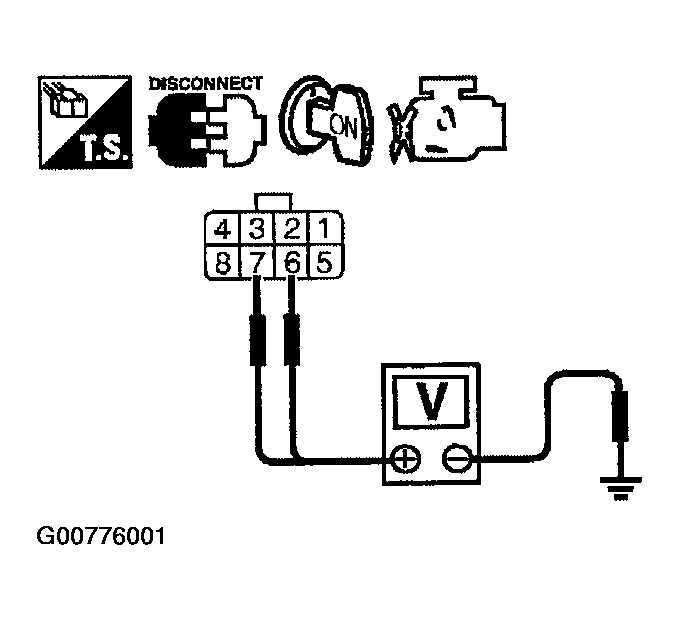

      Fig 3: Checking Voltage Between APP Sensor Terminals 6, 7 And Ground
      G00776001Courtesy of NISSAN MOTOR CO., U.S.A.
      1. Voltage: Approximately 5V

    OK or NG

    1. OK: GO TO 3.
    2. NG: Repair open circuit or short to ground or short to power in harness or connectors.
  3. CHECK APP SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
    1. Turn ignition switch OFF.
    2. Disconnect ECM harness connector.
    3. Check harness continuity between ECM terminal 82 and APP sensor terminal 1, ECM terminal 83 and APP sensor terminal 3.

      Refer to WIRING DIAGRAM  .

      1. Continuity should exist.
    4. Also check harness for short to ground or short to power.

    OK or NG

    1. OK: GO TO 4.
    2. NG: Repair open circuit or short to ground or short to power in harness or connectors.
  4. CHECK APP SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
    1. Check harness continuity between ECM terminal 106 and APP sensor terminal 2, ECM terminal 98 and APP sensor terminal 5. Refer to WIRING DIAGRAM  .
      1. Continuity should exist.
    2. Also check harness for short to ground and short to power.

    OK or NG

    1. OK: GO TO 5.
    2. NG: Repair open circuit or short to ground or short to power in harness or connectors.
  5. CHECK APP SENSOR

    Refer to COMPONENT INSPECTION  .

    OK or NG

    1. OK: GO TO 6.
    2. NG: Replace accelerator pedal assembly.
  6. CHECK INTERMITTENT INCIDENT

    Refer to TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT  .

    1. INSPECTION END
