Component Inspection: Condenser

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Turn ignition switch OFF.
Disconnect condenser harness connector.
Check resistance between condenser terminals as 1 and 2.

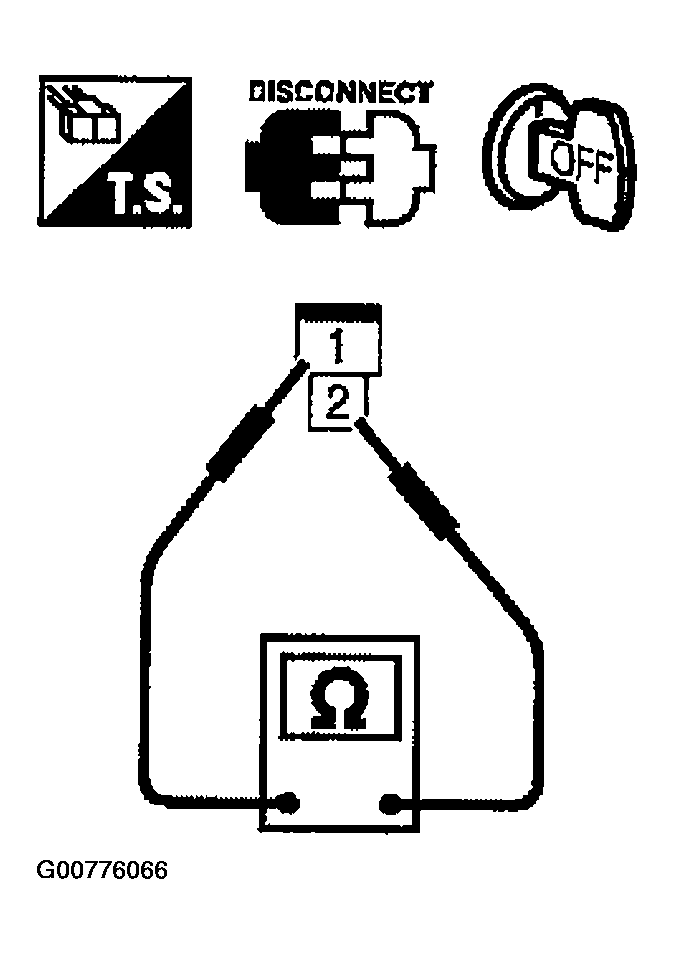

Fig 1: Check Resistance Between Condenser Terminals As 1 And 2
Courtesy of NISSAN MOTOR CO., U.S.A.

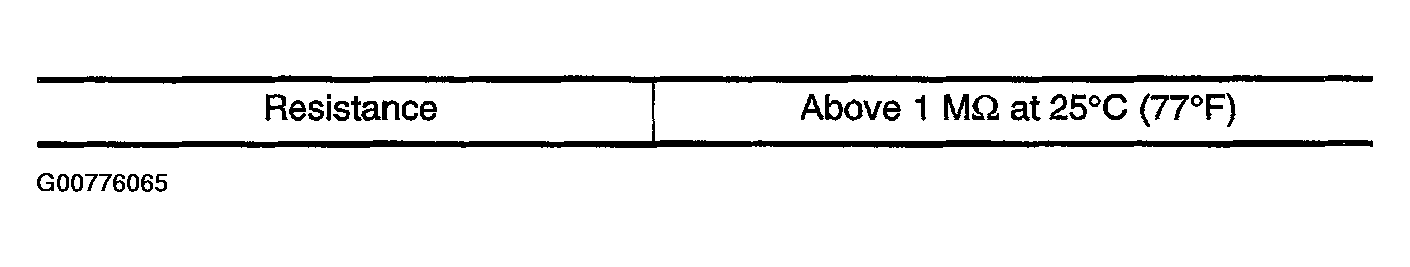

Fig 2: Condenser Resistance Specification
Courtesy of NISSAN MOTOR CO., U.S.A.
