Electrical Component Locator: Miscellaneous
MISCELLANEOUS LOCATION
| Component | Location |
|---|---|
| A/C Amplifier | Behind center of dash. See Figure. |
| Brake Control Power Supply | Left rear corner of luggage compartment. See Figure. |
| Brake Stroke Simulator | Left rear corner of engine compartment. See Figure. |
| Curtain Shield Airbag Squib Circuit LH | Left side of roof. See Figure. |
| Curtain Shield Airbag Squib Circuit RH | Right side of roof. See Figure. |
| DLC3 | Below left side of dash. See Figure. |
| Driver Side Knee Airbag | Lower left side of dash. See Figure. |
| Driver Side Squib Circuit | Behind left side of dash. See Figure. |
| Driver Side Squib 2nd Step Circuit | Behind left side of dash. See Figure. |
| Electrical Key Oscillator (Front) | Under rear of center floor console. See Figure. |
| Electrical Key Oscillator (Front Door LH) | Near left front door outside handle. See Figure. |
| Electrical Key Oscillator (Front Door RH) | Near right front door outside handle. See Figure. |
| Electrical Key Oscillator (Rear) | In left "C" pillar. See Figure. |
| Electrical Key Oscillator (Rear Door LH) | Near left rear door outside handle. See Figure. |
| Electrical Key Oscillator (Rear Door RH) | Near right rear door outside handle. See Figure. |
| Front Passenger Side Squib Circuit | Behind right side of dash. See Figure. |
| Front Passenger Side Squib 2nd Step Circuit | Behind right side of dash. See Figure. |
| Front Pretensioner LH | Near base of left "B" pillar. See Figure. |
| Front Pretensioner RH | Near base of right "B" pillar. See Figure. |
| Front Seat Heater LH | In left front seat back. See Figure. |
| Front Seat Heater RH | In right front seat back. See Figure. |
| Front Side Airbag Squib Circuit LH | Under left front seat. See Figure. |
| Front Side Airbag Squib Circuit RH | Under right front seat. See Figure. |
| Front Tension Reducer LH | Near base of left "B" pillar. See Figure. |
| Front Tension Reducer RH | Near base of right "B" pillar. See Figure. |
| Front Wiper Deicer | Left rear of engine compartment. See Figure. |
| Fuel Pump Resistor | Left side of engine compartment. See Figure. |
| Generator | Right front of engine. See Figure. |
| High Pitched Horn | Left front of engine compartment. See Figure. |
| ID Code Box | Behind left side of dash. See Figure. |
| IEEE Connector | Under left side of dash. See Figure. |
| Ignition Coil (No. 1) | Above No. 1 spark plug. See Figure. |
| Ignition Coil (No. 2) | Above No. 2 spark plug. See Figure. |
| Ignition Coil (No. 3) | Above No. 3 spark plug. See Figure. |
| Ignition Coil (No. 4) | Above No. 4 spark plug. See Figure. |
| Ignition Coil (No. 5) | Above No. 5 spark plug. See Figure. |
| Ignition Coil (No. 6) | Above No. 6 spark plug. See Figure. |
| Ignition Coil (No. 7) | Above No. 7 spark plug. See Figure. |
| Ignition Coil (No. 8) | Above No. 8 spark plug. See Figure. |
| Junction Connector A66 | Behind right kick panel. See Figure. |
| Junction Connector E55 | Under left front seat. See Figure. |
| Junction Connector F20 | In right rear seat back. See Figure. |
| Junction Connector F20 | In right rear seat back. See Figure. |
| Junction Connector F36 | In left rear seat back. See Figure. |
| Junction Connector L94 | Behind right side of dash. See Figure. |
| Junction Connector L100 | Behind left center of dash. See Figure. |
| Junction Connector R48 | Behind right kick panel. See Figure. |
| Junction Connectors A60, A61, A62 & A70 | Left front of engine compartment. See Figure. |
| Junction Connectors A63 & A64 | Right side of engine compartment. See Figure. |
| Junction Connectors A65 & A67 | Behind left kick panel. See Figure. |
| Junction Connectors E51, E52 & E53 | Left front of engine compartment. See Figure. |
| Junction Connectors E56, E57 & R57 | Under right front seat. See Figure. |
| Junction Connectors L95 & L96 | Behind left end of dash. See Figure. |
| Junction Connectors L96, L98 & L99 | Behind right side of dash. See Figure. |

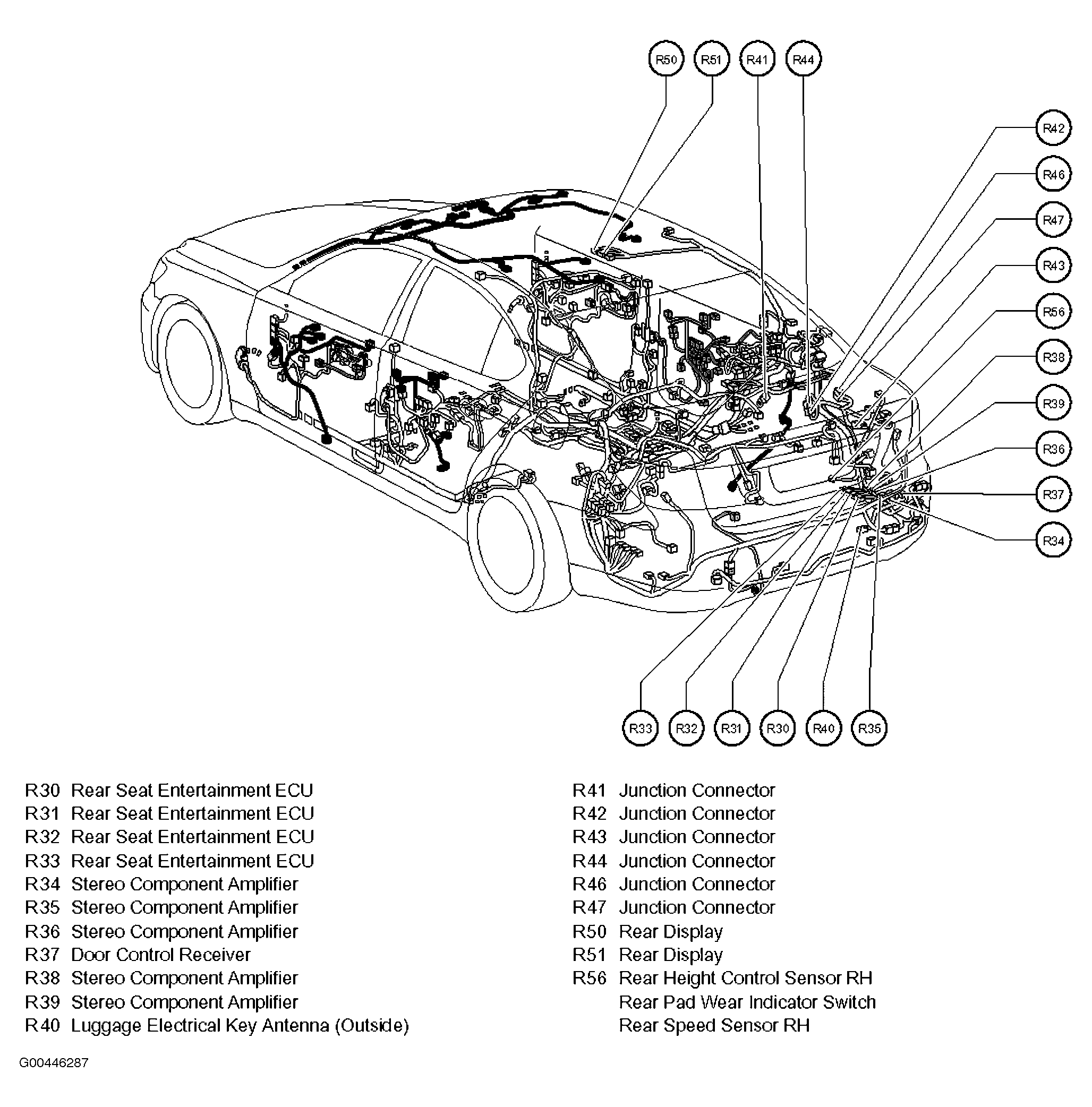

| Junction Connectors R41, R42, R43, R44, R46 & R47 | Right side of luggage compartment. See Figure. |
| Junction Connectors S55 & S56 | Left rear corner of luggage compartment. See Figure. |
| Junction Connectors S57 & S58 | Left front of luggage compartment. See Figure. |
| Junction Connector S54 | Left side of luggage compartment. See Figure. |
| Junction Connector S60 | Behind left kick panel. See Figure. |
| Low Pitched Horn | Right front of engine compartment. See Figure. |
| Luggage Electrical Key Antenna (Inner) | Left rear corner of luggage compartment. See Figure. |
| Luggage Electrical Key Antenna (Outside) | Behind right side of rear bumper. See Figure. |
| Mayday Battery (Backup Battery) | Left rear corner of luggage compartment. See Figure. |
| Noise Filter | On R/B No.3. See Figure. |
| Noise Filter | Right side of engine compartment. See Figure. |
| Noise Filter (High Mounted Stop Light) | In left "C" pillar. See Figure. |
| Noise Filter (Ignition Bank 1) | Left rear of engine. See Figure. |
| Noise Filter (Ignition Bank 2) | Right rear of engine. See Figure. |
| Noise Filter (Rear Window Defogger) (S19) | In left "C" pillar. See Figure. |
| Noise Filter (Rear Window Defogger) (W1) | In right "C" pillar. See Figure. |
| Option Connector (Airbag Cutoff Switch) | Behind right side of dash. See Figure. |
| Passenger Side Knee Airbag | Lower right side of dash. See Figure. |
| Power Steering DC/DC Converter | Right rear corner of engine compartment. See Figure. |
| Radio Antenna | Below center of dash. See Figure. |

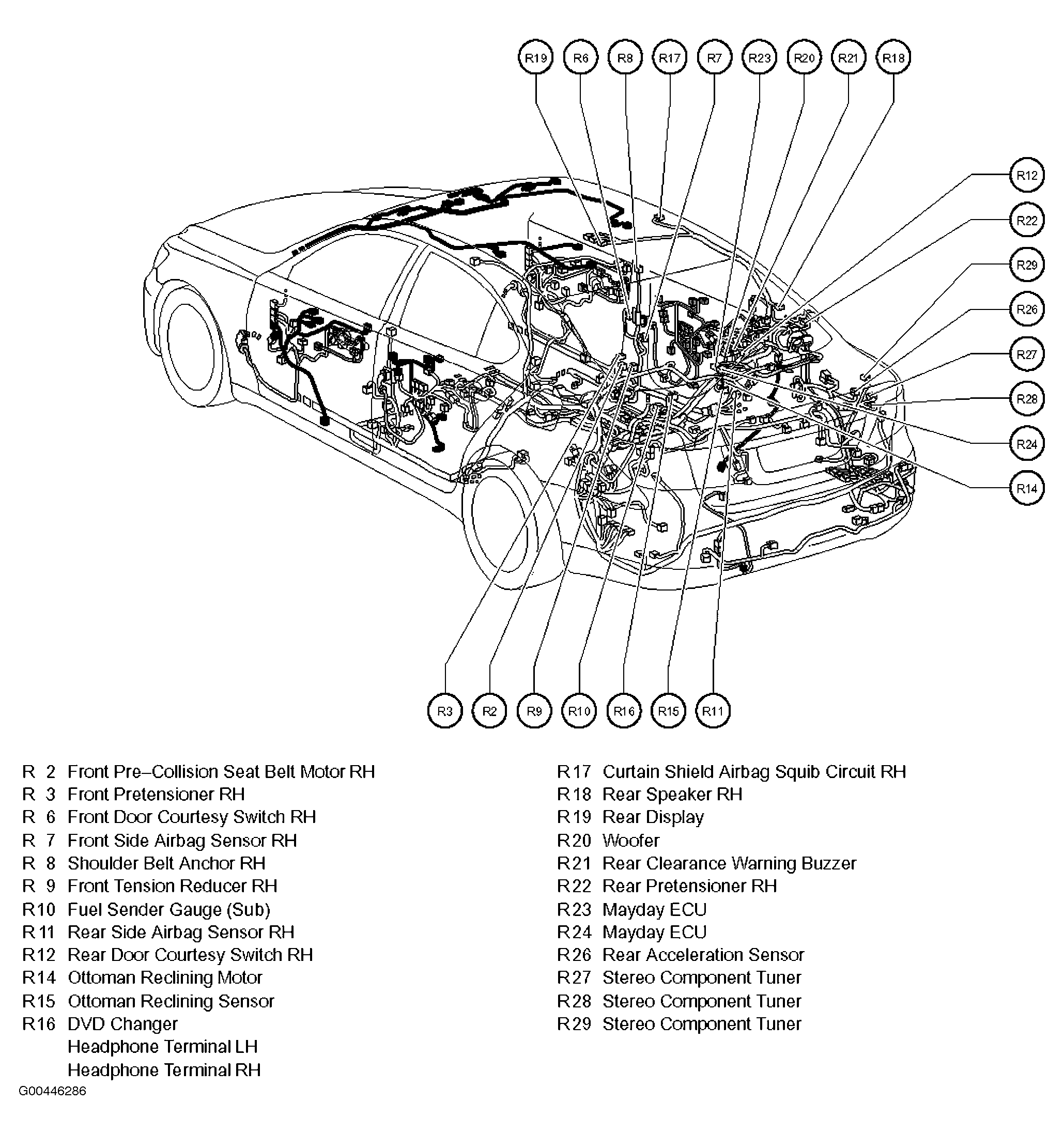

| Rear Pretensioner LH | In left "C" pillar. See Figure. |
| Rear Pretensioner RH | In right "C" pillar. See Figure. |
| Rear Seat Cushion Airbag Squib Circuit RH | Under right rear seat. See Figure. |
| Rear Seat Heater LH | In left rear seat back. See Figure. |
| Rear Seat Heater RH | In right rear seat back. See Figure. |
| Rear Side Airbag Squib Circuit LH | In left rear seat back. See Figure. |
| Rear Side Airbag Squib Circuit RH | In right rear seat back. See Figure. |
| Security Horn | Left rear corner of engine compartment. See Figure. |
| Short Connector (Cigarette Lighter) | Behind left center of dash. See Figure. |
| Short Connector (Height Control) | Behind right kick panel. See Figure. |
| Shoulder Belt Anchor LH | Near top of left "B" pillar. See Figure. |
| Shoulder Belt Anchor RH | Near top of right "B" pillar. See Figure. |
| Spiral Cable | In steering column. See Figure. |
| Stereo Component Amplifier | Right rear corner of luggage compartment. See Figure. |
| Stereo Component Tuner | Right rear corner of luggage compartment. See Figure. |
| Television Camera | Center rear of luggage compartment lid. See Figure. |
| Tire Pressure Warning Antenna & Receiver | Rear center of roof. See Figure. |
| Voltage Inverter | Under front of ottoman. See Figure. |
