HDD Navigation CDDB Update Process (L-SB-0075-14)

Publication date: 2014-10-01
Reference number: L-SB-0075-14

HDD NAVIGATION CDDB UPDATE PROCESS

HDD NAVIGATION CDDB UPDATE PROCESS

TECHNICAL SERVICE BULLETIN

Reference Number(s): L-SB-0075-14, Date of Issue:  October 1, 2014
LEXUS: 2007 - 2009 LS460; 2008 - 2009 LS600H, LX570
SERVICE CATEGORY: Audio/Visual/Telematics
SECTION: Navigation/Multi Info Display
COPYRIGHT: © 2018 Lexus, a division of Toyota Motor Sales, USA License Agreement TMS1002

APPLICABILITY

APPLICABILITY

YEAR(S) MODEL(S) ADDITIONAL INFORMATION
2007 - 2009 LS460
2008 - 2009 LS600H, LX570
NOTE: SUPERSESSION NOTICE The information contained in this bulletin supersedes SB No. L-SB-0182-09.
  • The Required Tools & Equipment and the Version Verification sections have been updated.

Service Bulletin No. L-SB-0182-09 is Obsolete and any printed versions should be discarded. Be sure to review the entire content of this bulletin before proceeding.

INTRODUCTION

Some 2007 - 2009 model year Lexus vehicles equipped with a Hard Disk Drive (HDD) Navigation System contain a jukebox feature that allows up to 2000 audio recordings to be transferred from their original CD media to the HDD on-board the vehicle. Detailed information about the audio recordings is attached to each track at the time of transfer. When each audio track is presented on the touch screen, informational details including Genre, Artist, Album, and Title are presented. This detailed track information is stored on the HDD in the Compact Disc Database (CDDB).

CDDB data updates will be released quarterly through TIS and can be uploaded to the vehicle using the Navigation Update Tool and Navigation Programs Installer software. CDDB data only needs to be loaded onto the Navigation Update Tool once per quarterly release. Vehicle CDDB updates are performed using the Navigation Update Tool.

Follow the procedures listed in this bulletin to:

WARRANTY INFORMATION

WARRANTY INFORMATION

OP CODE DESCRIPTION TIME OFP T1 T2
N/A Not Applicable to Warranty - - - -

SERVICE INFORMATION

SERVICE INFORMATION

OP CODE DESCRIPTION TIME OFP T1 T2
CDDBUD CDDB Update 0.2 - - -

SERVICE APPLICABILITY

This service will be provided under the Lexus Courtesy Maintenance program for 48 months, unlimited mileage. Each update may only be performed once per quarter per vehicle. Please refer to the Lexus Service & Parts Operations Communications (SPOC) bulletin "2007-18: Compact Disc Data Base (CDDB) Updates."

REQUIRED TOOLS & EQUIPMENT

REQUIRED TOOLS & EQUIPMENT

REQUIRED EQUIPMENT QTY
PC with Windows® XP, Windows® 7, or Windows® 8 Operating System 1
REQUIRED TOOLS & EQUIPMENT

SPECIAL SERVICE TOOLS (SST) PART NUMBER QTY
Navigation Update Tool Kit(1) 95079-00003-KIT  1
GR8 Battery Diagnostic Station(1) 00002-MCGR8  1
(1) Essential SST.

VERSION VERIFICATION

NOTE:
  • In order to perform the procedures outlined in this bulletin, you MUST have completed the setup procedure, "HDD Navigation Program Setup."
  • Before performing this procedure, disconnect all other USB peripheral and external storage devices (i.e., USB thumb drives, hard drives, cameras, mice, etc.).
  • For additional details, refer to the applicable Navigation Update Tool Operating Manual on the Technical Information System (TIS): Diagnostics - Tools & Equipment - Navigation - Reference Documents  .
    • Windows 7/8 Navigation Update Tool Operating Manual
    • Windows XP Navigation Update Tool Operating Manual

Before performing a CDDB update, confirm that the Navigation Update Tool and/or the vehicle's Navigation System are NOT up-to-date.

CHECKING FOR CURRENT CDDB VERSION ON NAVIGATION UPDATE TOOL

  1. Open the Navigation Programs Installer  .
    NOTE:
    • When properly installed, the Navigation Programs Installer icon will be found on the Techstream desktop.
    • If the application is NOT properly installed, refer to, "HDD Navigation Program Setup."
    G09583064Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Click Version Check  on the Navigation Update Tool Main Menu  .
    G09583065Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. Connect the Navigation Update Tool.
    1. Make sure the USB cable is secured in both the PC and the Navigation Update Tool USB ports.
    2. Confirm that the Navigation Update Tool is powered correctly.
    3. Turn power ON.
    4. Click Continue.

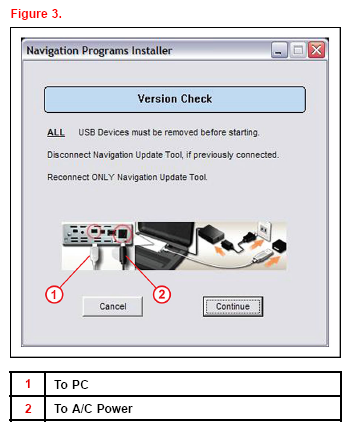

      G09583066Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

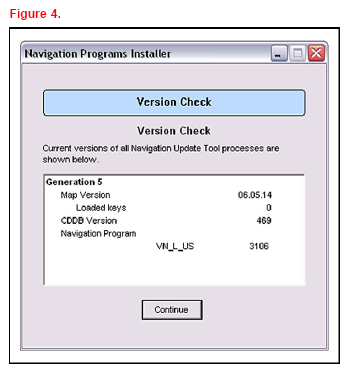

  4. Compare the CDDB version with the CDDB version shown on TIS.
    NOTE:
    • If the CDDB version on the Navigation Update Tool is the same as shown on TIS, then go to the "VEHICLE LOAD " section in this bulletin.
    • If the CDDB version on the Navigation Update Tool is NOT the same as shown on TIS, then go to the "TOOL LOAD " section in this bulletin.
    G09583067Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

CHECKING CDDB VERSION ON VEHICLE HDD NAVIGATION SYSTEM

  1. Press the "ENGINE START STOP" switch two times with the brake pedal released to cycle the ignition to the ON mode (Engine/Hybrid system OFF).
  2. From the multi-information display, select I Agree  .
    G09583068Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

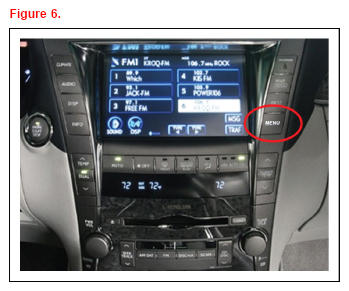

  3. Press the MENU  button.
    G09583069Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

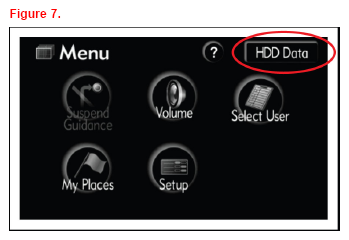

  4. From the multi-information display, select HDD Data  .
    G09583070Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. Compare the CDDB version on the Navigation System to that on the Navigation Update Tool.
    NOTE:
    • If the CDDB version on the vehicle is the same as shown on the Navigation Update Tool, then the vehicle does NOT need the update.
    • If the CDDB version on the vehicle is NOT the same as shown on the Navigation Update Tool, then go to the "VEHICLE LOAD " section in this bulletin.

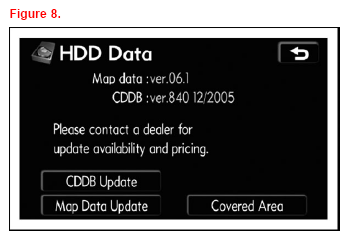

    G09583071Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TOOL LOAD

Loading CDDB Data onto Navigation Update Tool

NOTE: There are two separate processes used to update the CDDB data on the vehicle:
  • Loading the CDDB data onto the Navigation Update Tool.
  • Loading the CDDB data into the vehicle HDD Navigation System.

If the CDDB version on the Navigation Update Tool is the same as shown on TIS, then go to the "VEHICLE LOAD " section in this bulletin.
If the CDDB version on the Navigation Update Tool is NOT the same as shown on TIS, then follow the instructions below.
NOTE:
  • In order to perform the following procedure, the PC being used MUST be in Administrator Mode. Software will NOT complete CDDB download if this is not met.
  • Before performing this procedure, disconnect all other USB peripheral and external storage devices (i.e., USB thumb drives, hard drives, cameras, mice, etc.).
  1. Log into TIS.
  2. Download the CDDB data file.
    1. Click on the TIS  tab.
    2. Click on the Diagnostics  tab.
    3. Click on the Tools & Equipment  tab.
    4. Click on the Navigation  tab under Tools  .
    5. Click on CDDB Data under Available Software Updates  .

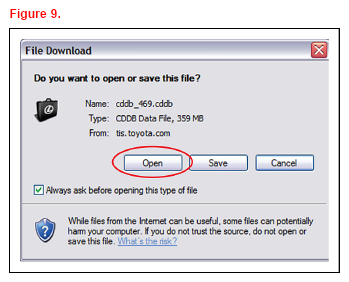

  3. Click Open to begin the download.
    NOTE: The file is large and may take up to 10 minutes to download.
    G09583072Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

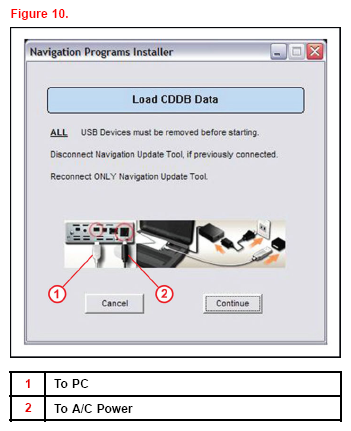

  4. Connect the Navigation Update Tool.
    1. Make sure the USB cable is secured in both the PC and the Navigation Update Tool USB ports.
    2. Confirm that the Navigation Update Tool is powered correctly.
    3. Turn the power ON.
    4. Click Continue  .

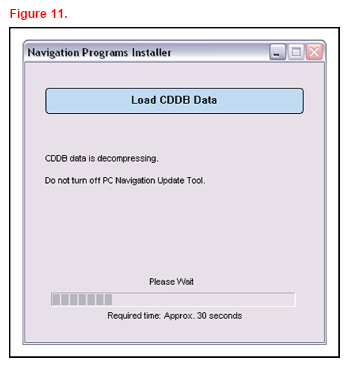

      CDDB data will decompress before it is copied onto the Navigation Update Tool.

      G09583073Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      G09583074Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

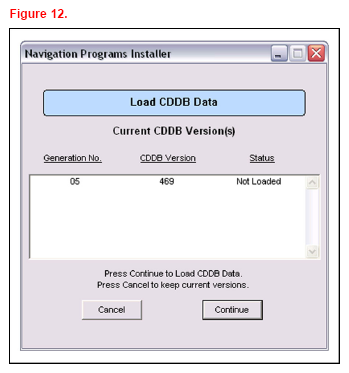

  5. Verify the correct version of CDDB data to load onto the Navigation Update Tool.
    G09583075Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

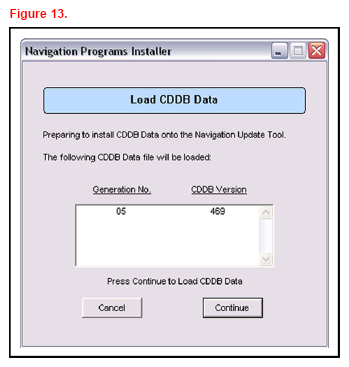

  6. Click Continue  to load CDDB data onto the Navigation Update Tool.

    CDDB data will then copy to the Navigation Update Tool (requires about 5 minutes).

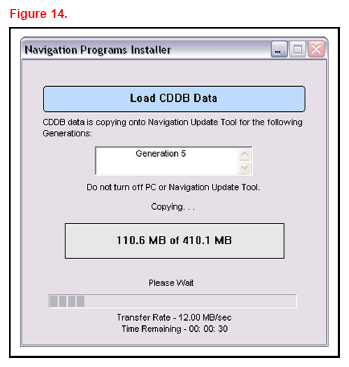

    G09583076Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    G09583077Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

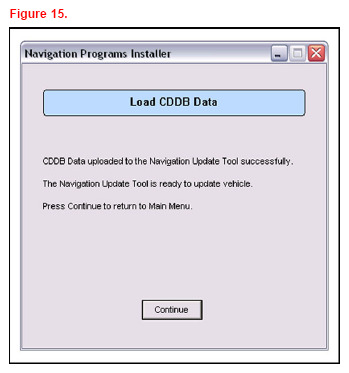

  7. Verify the CDDB data is loaded onto the Navigation Update Tool and can now be used to update the vehicle.
    G09583078Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

VEHICLE LOAD

Loading CDDB Data onto Vehicle HDD Navigation System

NOTE:
  • Prior to connecting to the vehicle, you MUST disconnect the Navigation Update Tool from the PC.
  • Connect the GR8 Battery Diagnostic Station to the vehicle prior to beginning the process to ensure constant battery voltage.

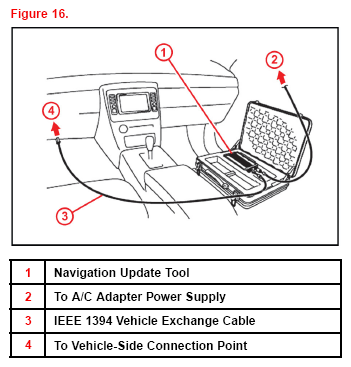

  1. Connect the Navigation Update Tool to the vehicle.
    1. Make sure the IEEE 1394 cable is secured in both the Navigation Update Tool and the vehicle connector.
    2. Confirm the Navigation Update Tool is powered correctly.
    3. Turn power ON.
      G09583079Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Press the "ENGINE START STOP" switch two times with the brake pedal released to cycle the ignition to the ON mode (Engine/Hybrid system OFF).
  3. From the multi-information display, select I Agree  .

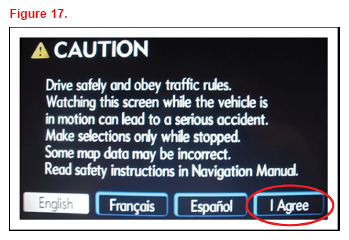

    G09583080Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. Press the MENU  button.
    G09583081Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. From the multi-information display, select HDD Data  .
    G09583082Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

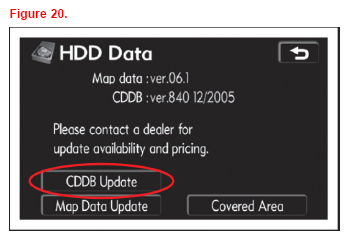

  6. Select CDDB Update  .
    G09583083Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. Select I Agree  .

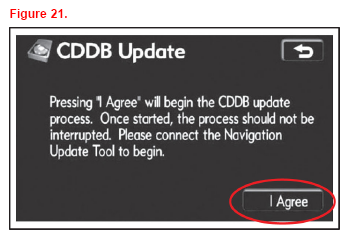

    G09583084Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. Allow CDDB data to copy (requires about 5 minutes).

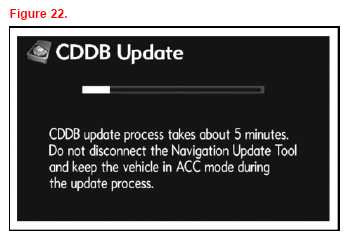

    G09583085Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

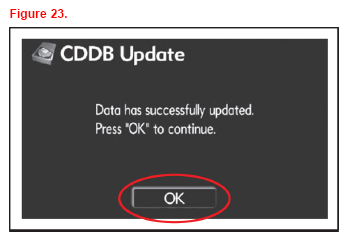

  9. Select OK.
    G09583086Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. Disconnect the Navigation Update Tool from the vehicle.

UPDATE MUSIC

Updating Music Data AFTER CDDB Data Installation

After a successful CDDB update, some albums may still display without the updated information. These albums will need to be manually updated using the following procedure.

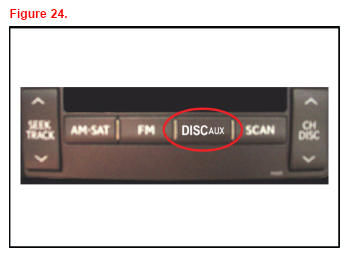

  1. Press the DISC AUX  button.
    G09583087Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Select ALBUM LIST  .

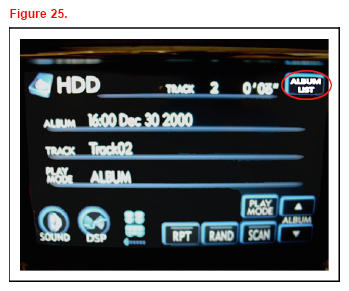

    G09583088Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

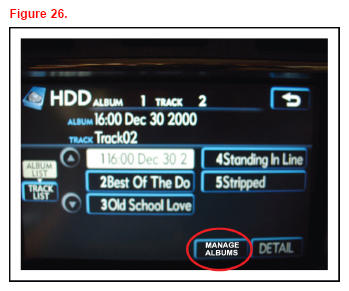

  3. Select MANAGE ALBUMS  after selecting desired album to update.

    HINT

    Only albums without a name label need to be updated.

    G09583089Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

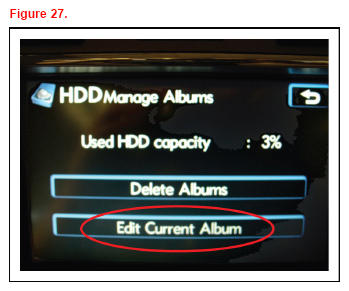

  4. Select Edit Current Album  .
    G09583090Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

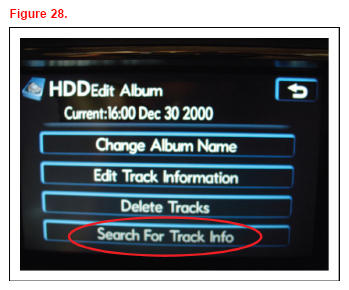

  5. Select Search For Track Info  .

    Notice that selected album shows up as a Time and a Date.

    G09583091Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. Once the HDD CD Title Confirmation  screen appears, select OK  .
    NOTE: If album information still displays a time and a date as the album title, then the CD was released after the current data was updated.

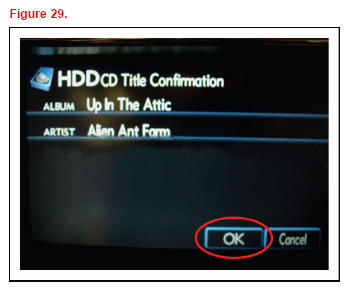

    G09583092Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

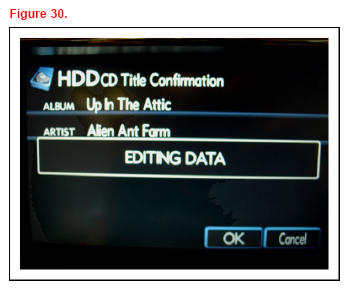

  7. Allow data to update.
    G09583093Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. Press the back arrow.

    Notice the selected album now has a title.

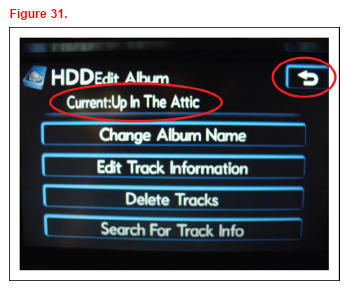

    G09583094Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

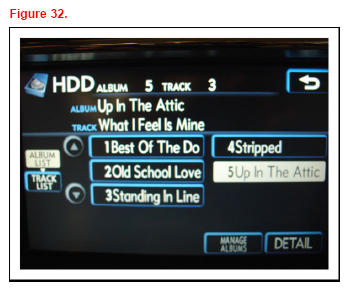

  9. Verify the updated album information is now in the HDD ALBUM  list.
    G09583095Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
