HDD Navigation Program Setup (SS003-07)

Publication date: 2007-11-06
Reference number: SS003-07

HDD NAVIGATION PROGRAM SETUP

HDD NAVIGATION PROGRAM SETUP

Technical Service Bulletin

Reference Number(s): SS003-07, Date of Issue:  November 06, 2007
Affected Models: 2007-08 LS 460/460L & 2008 LS 600h
Section: SPECIAL SERVICE TOOLS
Superceded Bulletin(s): SS003-07, Date of Issue:  May 11, 2007
NOTE: TSIB REVISION NOTICE:
  • November 06, 2007: A warning has been added to the beginning of Tool Setup. The illustration in step 3 of Tool Setup has been updated.
  • October 10, 2007: 2008 model year LS 460/460L vehicles have been added to Applicable Vehicles. The illustrations in steps 4 - 5 of Application Installation have been updated. Step 6 of Application Installation has been updated. Steps 7 - 9 of Application Installation have been added. Step 5 (including illustration) of Tool Setup has been updated.

Previous versions of this TSIB should be discarded.

Introduction

Lexus models equipped with Hard Disk Drive (HDD) Navigation may have their map data, Compact Disc Database (CDDB), and navigation head unit software updated using the Navigation Update Tool and the HDD Navigation Programs Installer.

The Navigation Programs Installer is a PC application available on the Technical Information System (TIS) and must be installed on TIS Techstream or an equivalent PC. The Navigation Update Tool is an essential service tool and the device must be properly configured before initial use.

Follow the procedures in this bulletin to locate and install the HDD Navigation Programs Installer and properly configure the Navigation Update Tool. The HDD Navigation Programs Installer is a mandatory application that will be used to update the vehicles' map data, as well as the CDDB data.

This TSIB will outline two processes that must be completed to prepare the Navigation Update Tool for initial use:

NOTE:
  • In order to perform the following procedure, the PC being used MUST be put in ADMINISTRATOR MODE. Software will NOT complete setup if this is not met.
  • Before performing this procedure, disconnect all other USB peripheral and external storage devices (i.e., USB thumb drives, hard drives, cameras, mice, etc.)
  • For Additional details, refer to the Navigation Update Tool Operator's Manual on TIS.

Applicable Vehicles

Warranty Information

WARRANTY INFORMATION

OP CODE DESCRIPTION TIME OFP T1 T2
N/A Not Applicable to Warranty - - - -

Required Tools & Equipment

REQUIRED TOOLS & EQUIPMENT

REQUIRED EQUIPMENT SUPPLIER PART NUMBER QTY
TIS Techstream*
G05443943Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
 ADE TSUNT 1
REQUIRED SPECIAL SERVICE TOOLS

REQUIRED SPECIAL SERVICE TOOLS (SSTs) SUPPLIER PART NUMBER QTY DRW(2)
Navigation Update Tool (1)
G05443944Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
 SPX/OTC 95079-00002-KIT 1 8
(1) Essential SSTs.

(2) Drawer number in SST Storage System.

Application Installation

The Navigation Programs Installer should be installed on one or more of the dealership's TIS Techstream units, the TIS workstation, or any equivalent service department PC.

Minimum PC requirements for the application to operate properly include:

Download and Install Navigation Programs Installer

  1. Turn on TIS Techstream.
  2. Log into TIS (http://tis.toyota.com).
  3. Download the Navigation Programs Installer  from TIS.

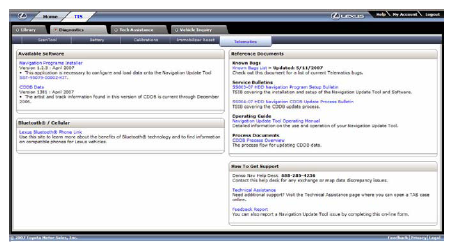

    Fig 1: View Of Technical Information System Display
    G05443945Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
    1. Click on the TIS  tab.
    2. Click on the Diagnostics  tab.
    3. Click on the Telematics tab.
    4. Click on the Navigation Programs Installer under Available Software.
    NOTE: If the TIS division preference is NOT set to Lexus (under the My Account  area), the Telematics tab will NOT display. Telematics is a Lexus ONLY TIS option at this time.
  4. Click Run  to begin download.

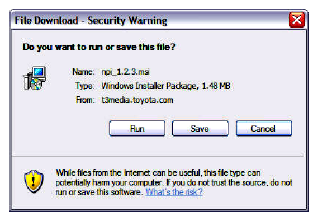

    Fig 2: View Of Navigation Programs Installer File Download Screen
    G05443946Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
  5. Click Run  to install program onto PC.

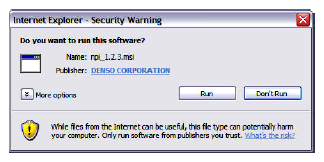

    Fig 3: View Of Navigation Programs Installer Run Screen
    G05443947Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
  6. Click Next.
    Fig 4: View Of Navigation Programs Installer Display - Next
    G05443948Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
  7. Ensure the "Everyone" radio button is selected and click Next.
    NOTE: If "Everyone" is NOT selected, future installation errors could occur.
    Fig 5: View Of Navigation Programs Installer Display - Everyone
    G05443949Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
  8. Click Next.
    Fig 6: View Of Navigation Programs Installer Display - Next
    G05443950Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
  9. Click Close.
Fig 7: View Of Navigation Programs Installer Display - Close
G05443951Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

Tool Setup

Perform Initial Setup for Navigation Update Tool

WARNING: Do NOT perform setup if you have key files loaded onto the Navigation Update Tool with an older version; otherwise, the key files could be erased and key files CANNOT be recovered. Call the Navigation Help Desk for assistance.
NOTE:
  • In order to perform the following procedure, the PC being used MUST be put in ADMINISTRATOR MODE. Software will NOT complete setup if this is not met.
  • Before performing this procedure, disconnect all other USB peripheral and external storage devices (i.e., USB thumb drives, hard drives, cameras, mice, etc.).

Setup ONLY needs to be completed once for each Navigation Update Tool.

  1. Open the Navigation Programs Installer  by clicking the icon on of the desktop.
    Fig 8: Identifying Navigation Programs Installer Icon
    G05443952Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
  2. Click Setup.
    Fig 9: View Of Navigation Programs Installer Display - Navigation Update Tool Main Menu
    G05443953Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
  3. Connect the Navigation Update Tool and press Continue.

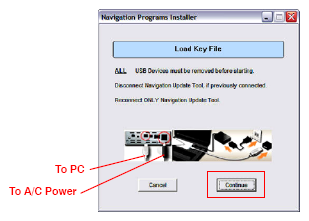

    Fig 10: View Of Navigation Programs Installer Display - Continue
    G05443954Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
    1. Make sure the USB cable is secured in both the PC and the Navigation Update Tool USB ports.
    2. Connect A/C power supply.
    3. Turn power ON and press Continue.
  4. Click the desired default language radio button and click Save and Continue Setup.
    Fig 11: View Of Navigation Programs Installer Display - Save And Continue Setup
    G05443955Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
  5. Allow Setup to complete (it requires about 1 hour).
    Fig 12: View Of Navigation Programs Installer Display - Setup
    G05443956Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
    NOTE: Do NOT turn the PC or Navigation Update Tool OFF during Setup.
  6. Verify Setup is complete.
    Fig 13: View Of Navigation Programs Installer Display - Setup
    G05443957Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
