Front Seat Inner Belt Assembly: Installation

INSTALL FRONT SEAT INNER BELT ASSEMBLY
1. Install the front seat inner belt assembly with the nut.
  Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

  NOTE: Do not allow the anchor part of the front seat inner belt assembly to overlap the protruding parts of the front seat adjuster.

  Fig 1: Identifying Front Seat Inner Belt Assembly With Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. for Driver Seat:
  Connect the 3 connectors and attach the 5 clamps.
3. for Passenger Seat:
  Connect the 2 connectors and attach the clamp.

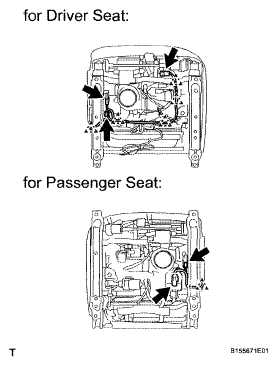

  Fig 2: Identifying Connectors And Clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
INSTALL FRONT SEAT ASSEMBLY (See INSTALLATION )
INSTALL COWL TOP VENTILATOR LOUVER RH (See INSTALLATION )
CONNECT FRONT SEAT OUTER BELT ASSEMBLY (See INSTALLATION )
PERFORM INITIALIZATION
1. Perform initialization (see INITIALIZATION ).
  NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
CHECK SRS WARNING LIGHT
1. Check the SRS warning light (see DIAGNOSIS SYSTEM ).
