Repair and Diagnosis
>>
Restraints
>>
Restraints Control Systems
>>
Seat Belt
>>
Seat Belt Warning System
>>
System Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System Diagram

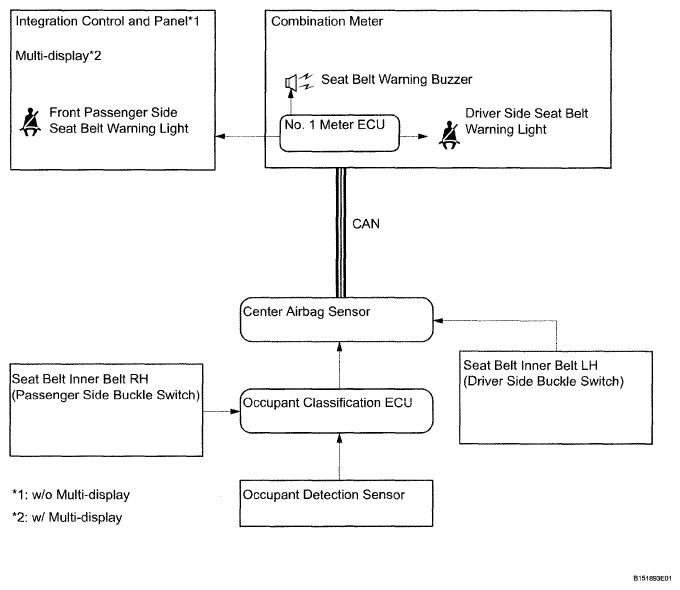

Fig 1: Seat Belt Warning - System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Communication table:
COMMUNICATION CHART
Sender
Receiver
Signal
Line
Center Airbag Sensor
No. 1 meter ECU
Front seat inner belt switch signal (for passenger side)
Front seat inner belt switch signal (for driver side)
Occupant detection signal
CAN
