Dc / Dc Converter: Components

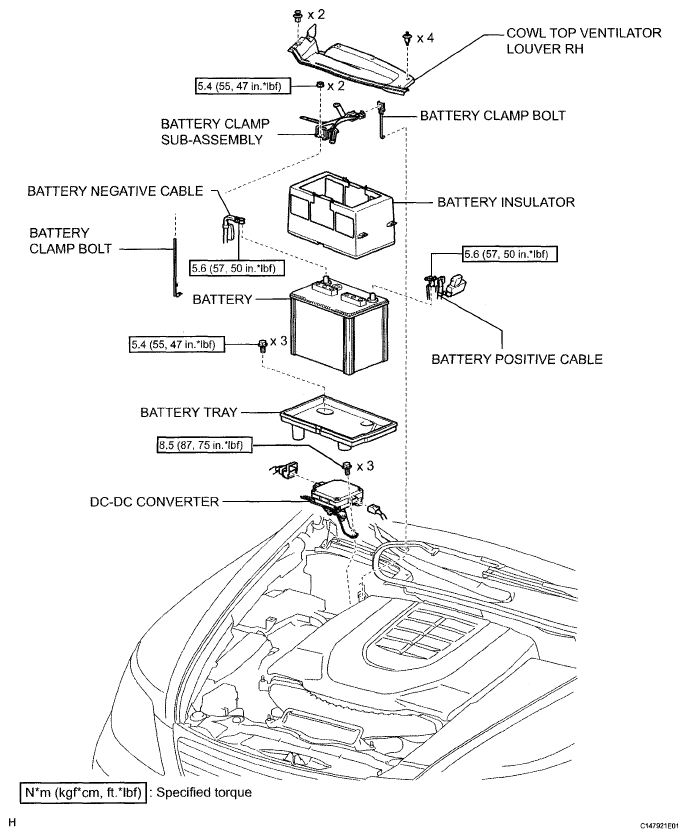

Fig 1: DC / DC Converter Replacement Components With Torque Specifications
G04944398Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
