ABSORBER CONTROL ACTUATOR (for Front Side): Components

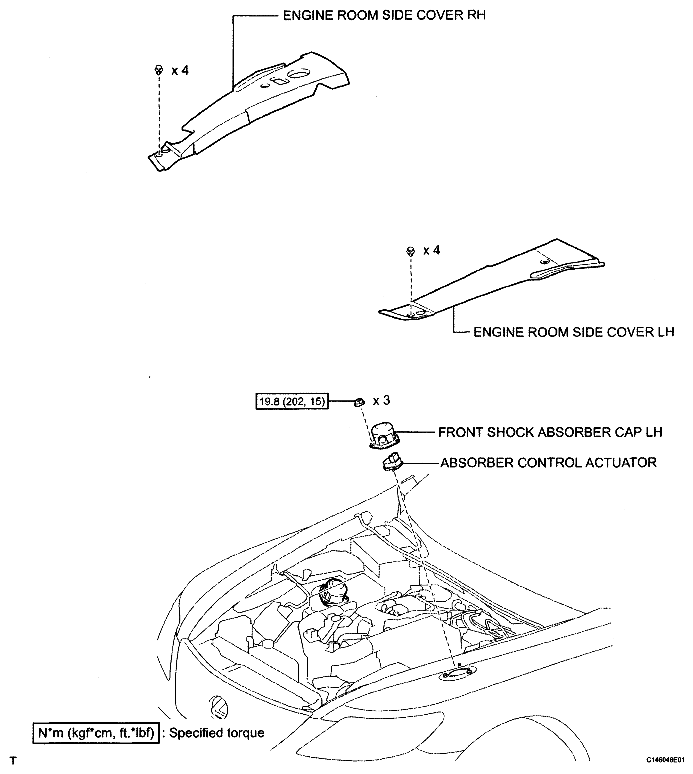

Fig 1: Absorber Control Actuator (For Front Side) Replacement Components With Torque Specifications
G04944243Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
