Operation Check

CHECK ABSORBER CONTROL ACTUATOR OPERATION

Remove the actuator with its connectors still connected.
Turn the engine switch off.
Using SST, connect the terminals 12 (TS) and 4 (CG) of the DLC3.
SST 09843-18040

Fig 1: Identifying DLC3 Connector Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Start the engine.

Check that the absorber control indicator light "SPORT" is blinking in test mode.

Fig 2: Identifying Blinking Pattern

G04944108

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

If the absorber control indicator light does not blink, inspect the indicator circuit and TS and CG terminal circuit.

TROUBLE AREA CHART

Trouble Area	See procedure
Indicator circuit	INDICATOR CIRCUIT
TS and CG terminal circuit	TS AND CG TERMINAL CIRCUIT

Fig 3: Identifying DLC3 Connector Terminals

G04944107

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Check absorber control actuator operation:

Fig 4: Identifying Shift Range Angle
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Starting from the above mentioned position, as the brake pedal is depressed, the absorber control actuator position will increase by 2 steps (1 (SOFT) → 3 --> 5 --> 7 --> 9 --> 11 --> 13 --> 15 --> 17 (HARD)). At this time, bounce the vehicle and check that the shock absorber is becoming harder.
  HINT:
  - Every time the brake pedal is depressed, the absorber control actuator rotates in the hard to soft direction in 15° intervals up to a maximum angle of 120°.
  - To hold the absorber control actuator at a specific position, adjust it using the above mentioned procedure, then increase the vehicle speed to 5 km/h (3 mph). After that, the absorber control actuator position does not change until the engine switch is turned off.
  - If the absorber control actuator does not operate, inspect the absorber control actuator circuit and absorber control actuator installation condition.

CHECK CONNECTIONS OF TUBES FOR AIR LEAKAGE
1. Set the height control switch in the "HEIGHT HIGH" position and raise the vehicle height.
2. Stop the engine.
3. Apply soapy water to the connections of the tubes and check if there is any air leakage.

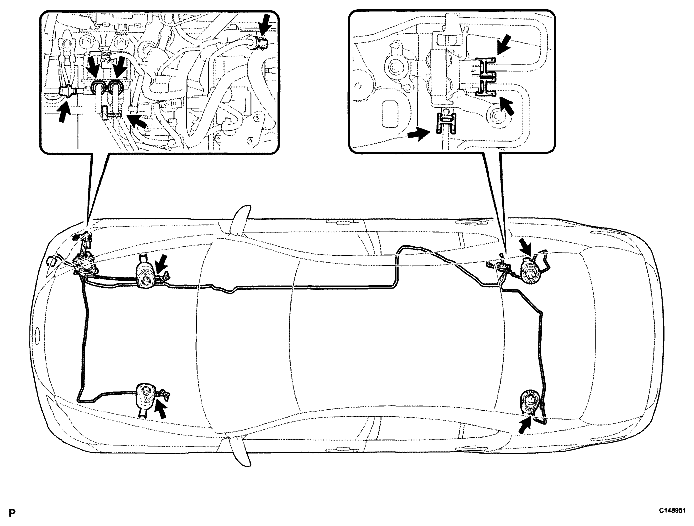

  Fig 5: Identifying Connections Of Tubes
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
