Keyless Entry Transmitter: Service and Repair

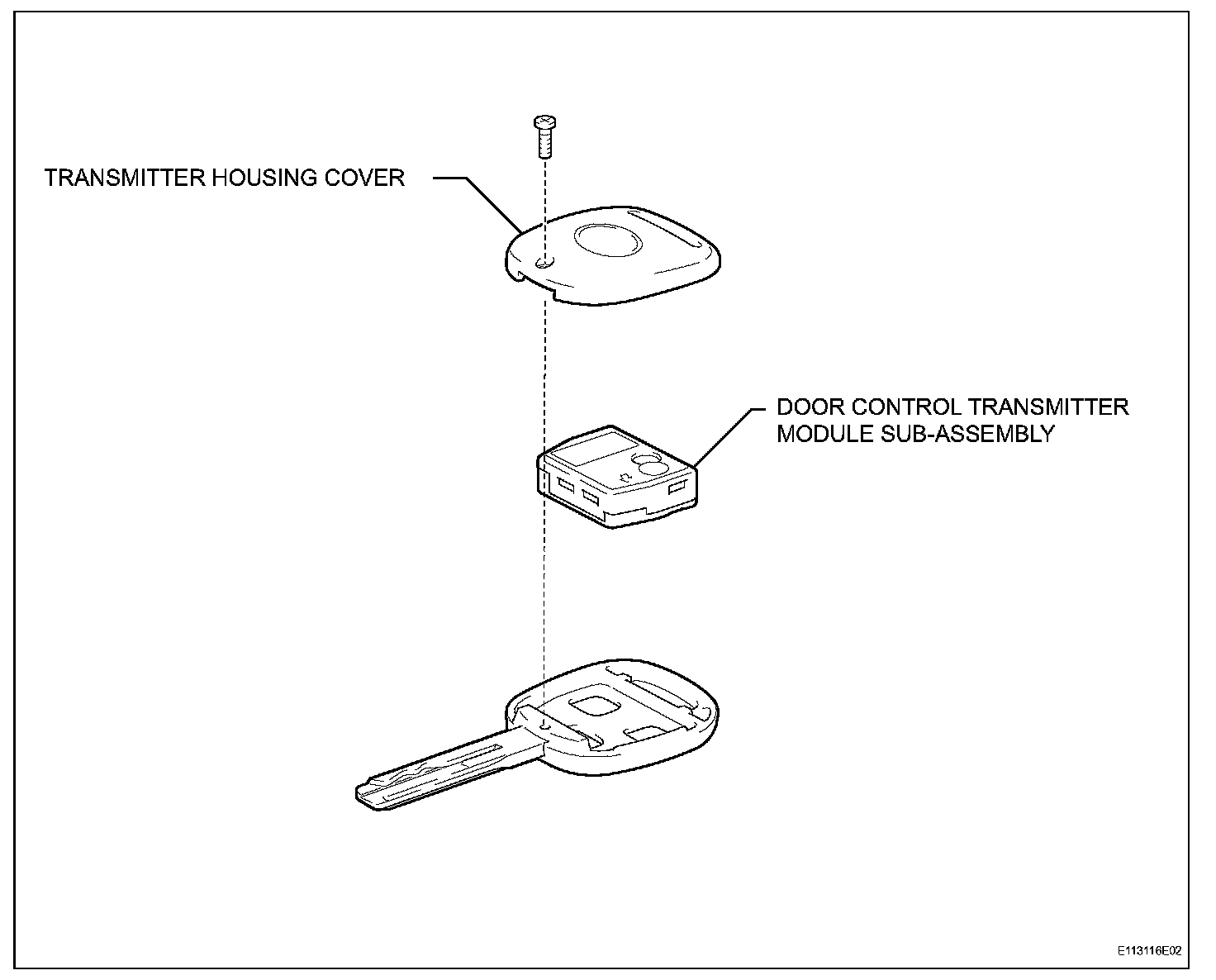

Door Control Transmitter Module:





REMOVAL

1. REMOVE TRANSMITTER HOUSING COVER
2. REMOVE DOOR CONTROL TRANSMITTER MODULE SUB-ASSEMBLY

INSTALLATION

1. INSTALL DOOR CONTROL TRANSMITTER MODULE SUB-ASSEMBLY
2. INSTALL TRANSMITTER HOUSING COVER
