Control Module HVAC

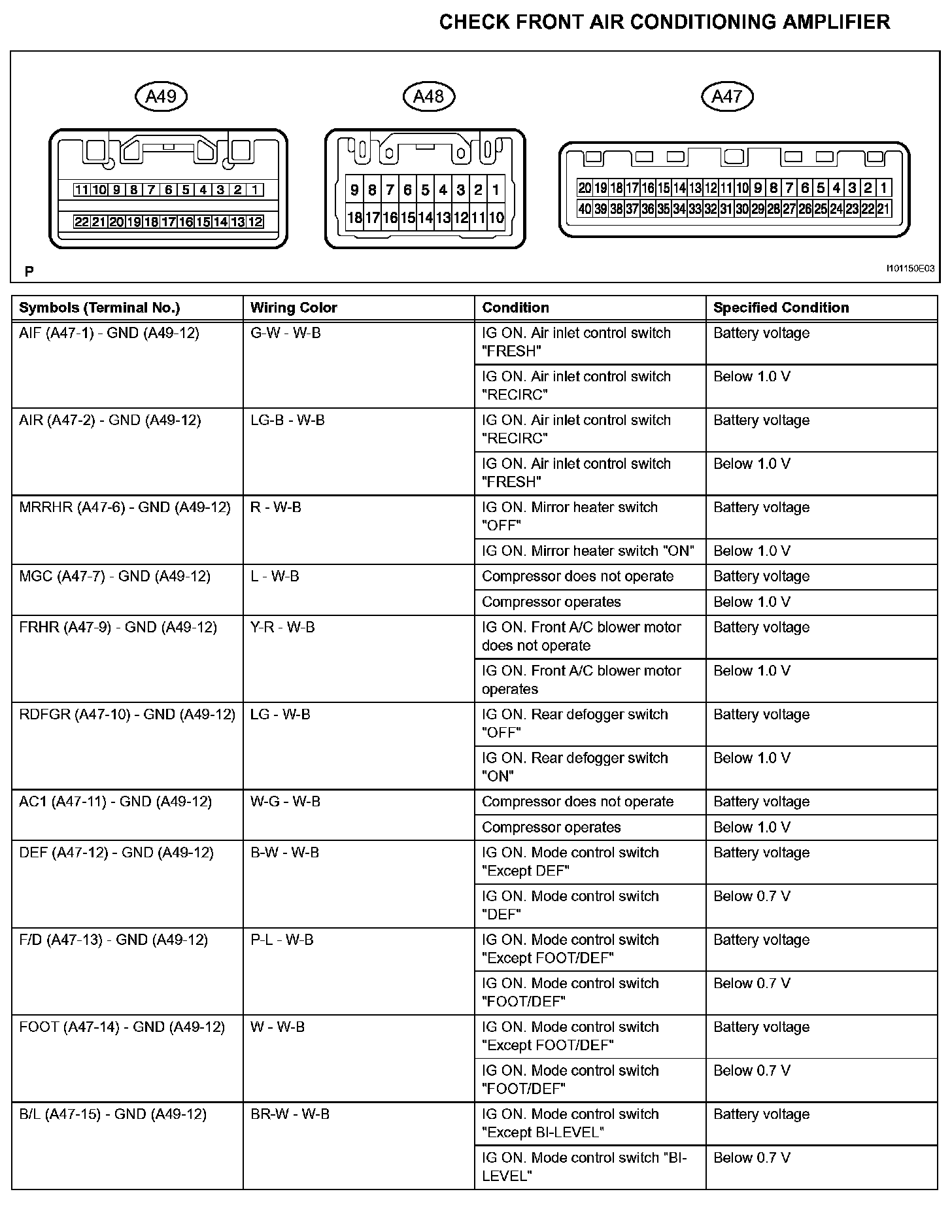

Terminal Of Control Module/Pinouts (Part 1):

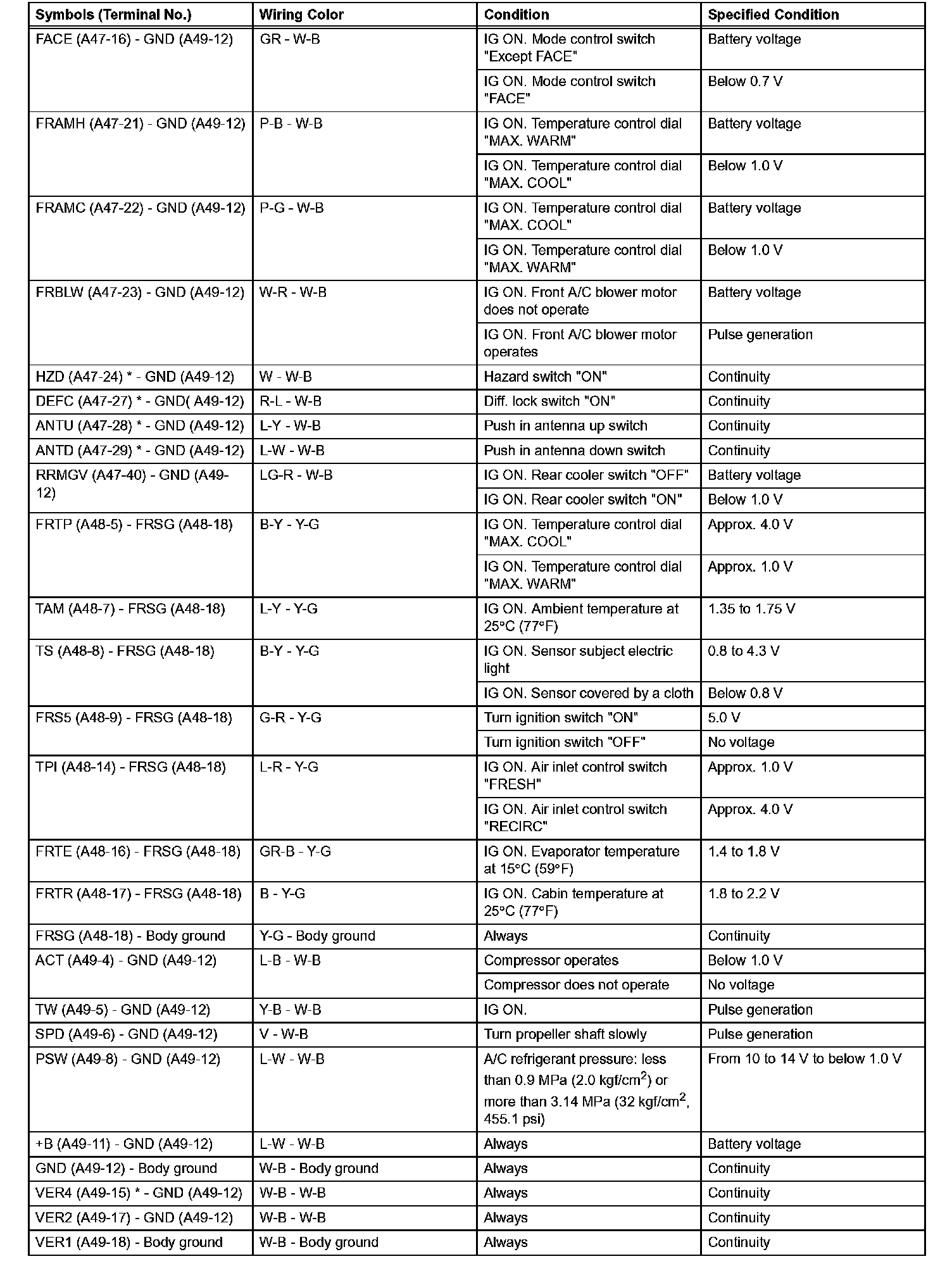

Terminals Of Control Module/Pinouts (Part 2):

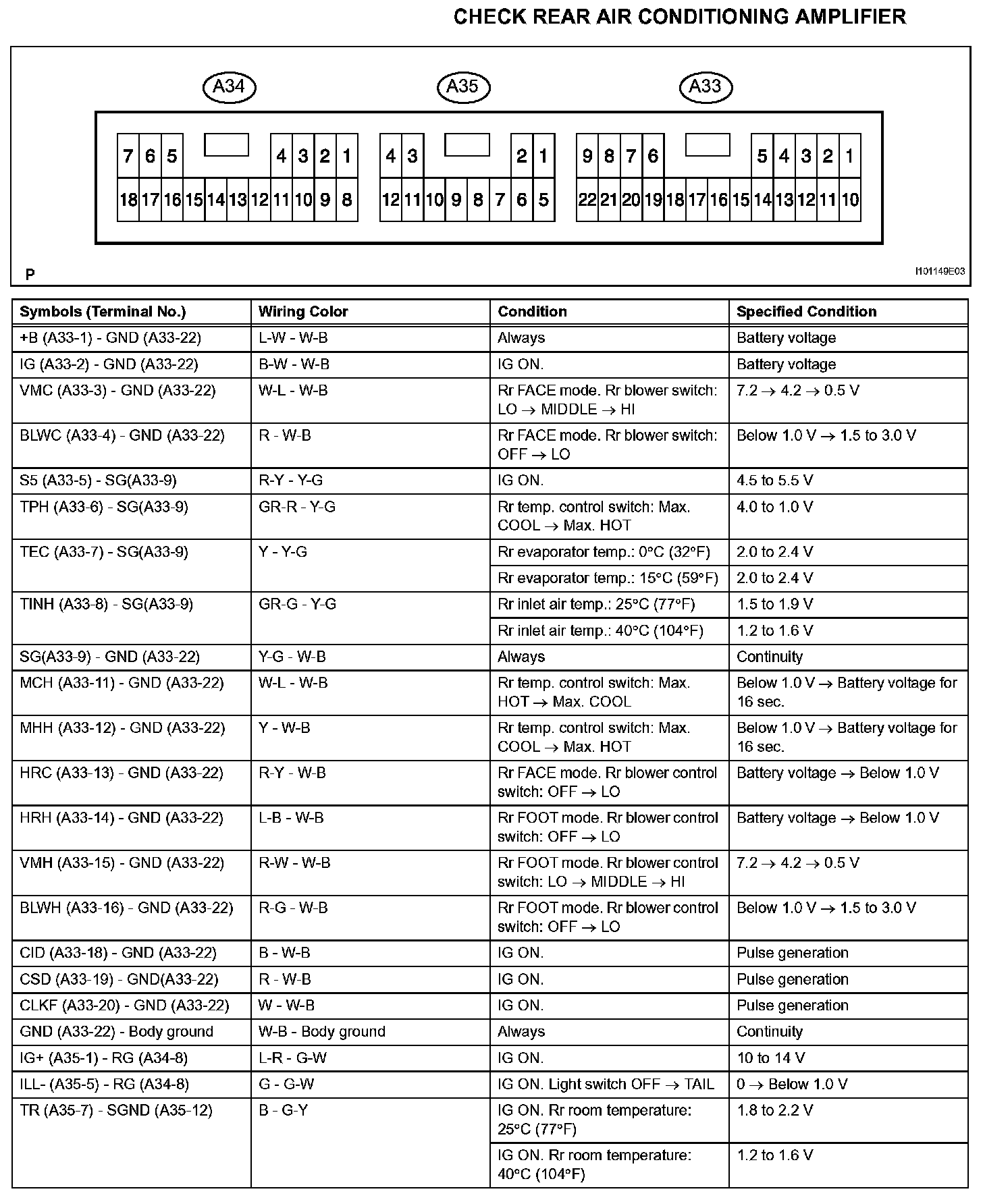

Terminals Of Control Module/Pinouts (Part 3):

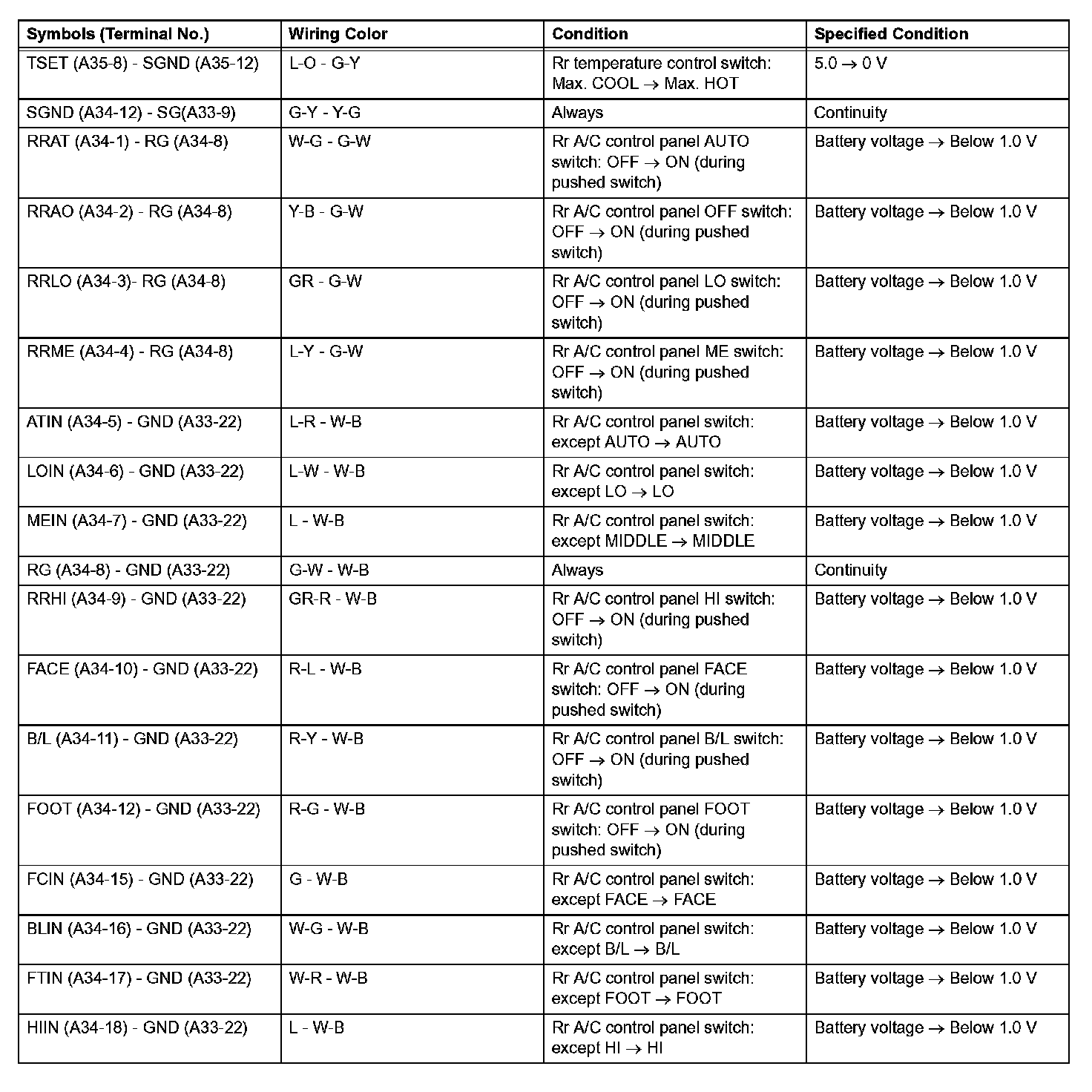

Terminal Of Control Module/Pinouts (Part 1):

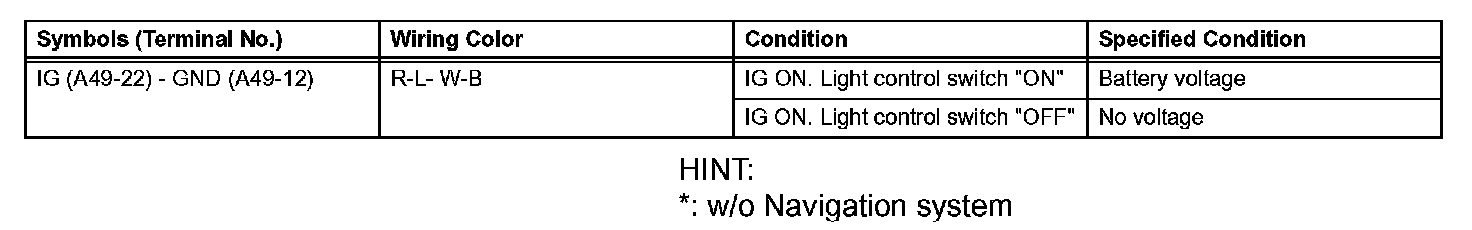

Terminal Of Control Module/Pinouts (Part 2):
