Circuit Opening Relay

ON-VEHICLE INSPECTION

1. REMOVE CIRCUIT OPENING RELAY (Marking: C/ OPN)
a. Remove the engine room relay block cover.
b. Remove the relay from the engine room relay block.

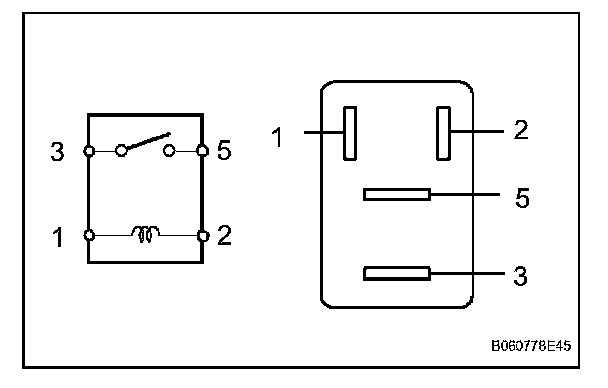

2. CHECK CIRCUIT OPENING RELAY




a. Measure the resistance of the relay.

If the result is not as specified, replace the relay.

3. INSTALL CIRCUIT OPENING RELAY
