EFI Relay

ON-VEHICLE INSPECTION

1. REMOVE EFI RELAY (Marking: EFI)
a. Remove the engine room relay block cover.
b. Remove the relay from the engine room relay block.




2. CHECK EFI RELAY

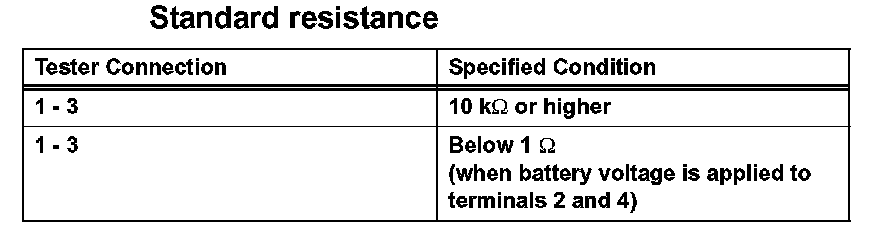

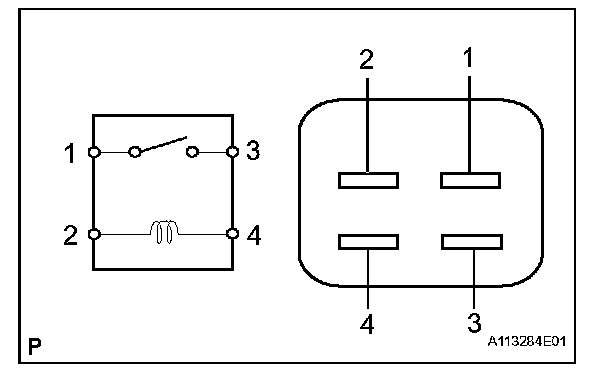

a. Measure the resistance of the relay.

If the result is not as specified, replace the relay.

3. INSTALL EFI RELAY
