Control Valve Assembly: Components

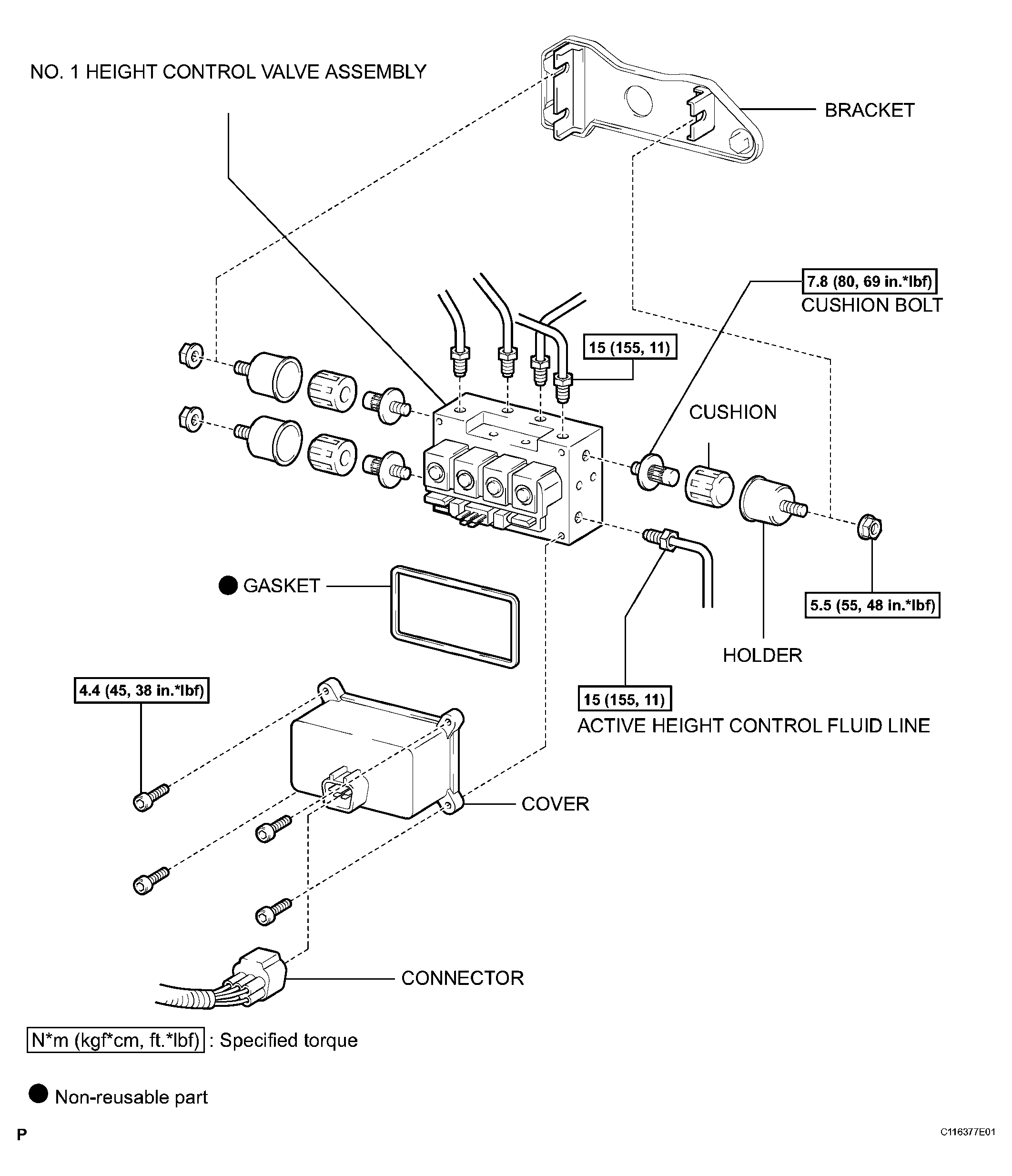

Fig 1: Exploded View Of Control Valve Assembly Components With Torque Specifications
G04063617Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
