Height Control Sensor: Components

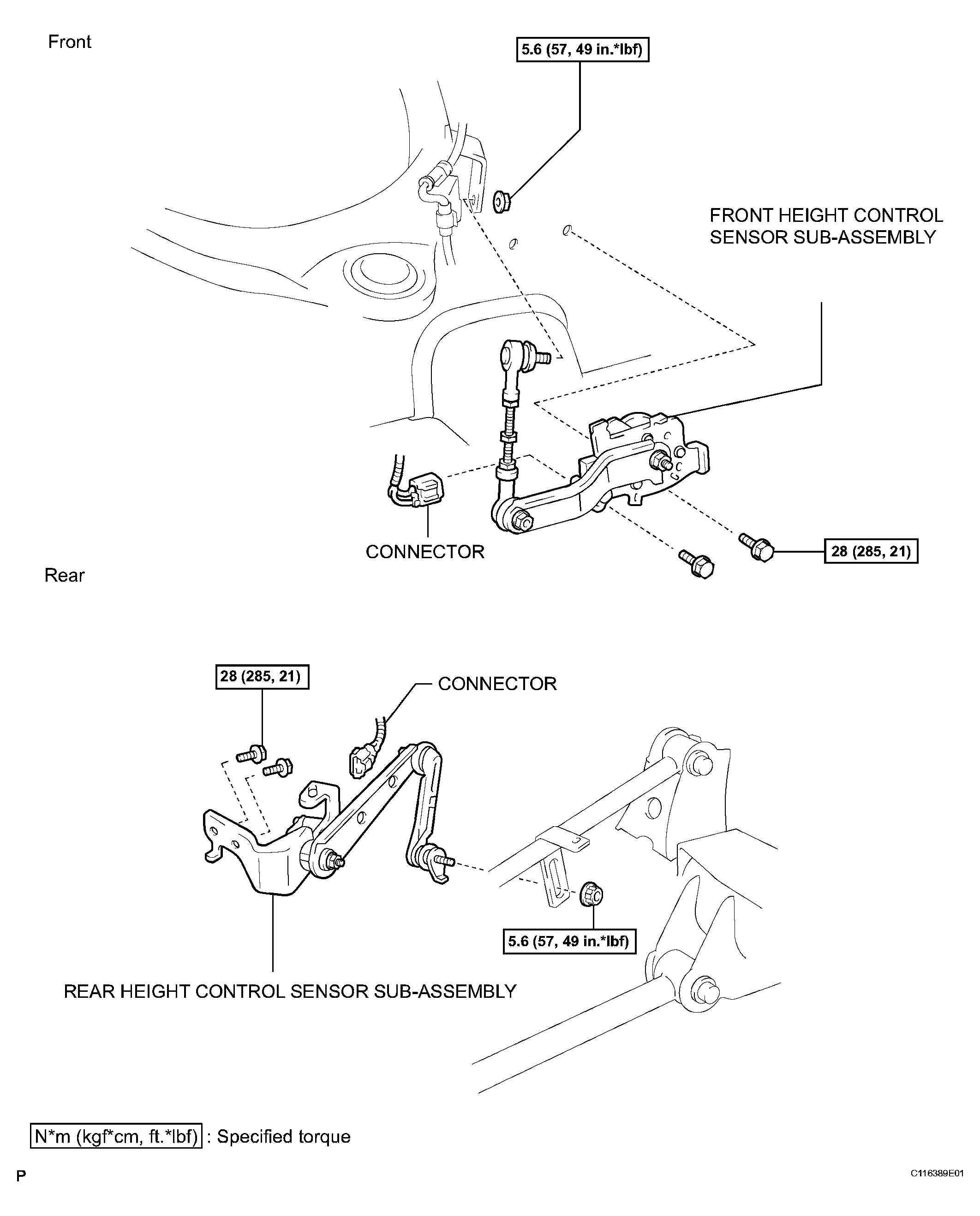

Fig 1: Exploded View Of Height Control Sensor Components With Torque Specifications
G04063637Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
