Driver Side Power Window Motor Circuit: Wiring Diagram

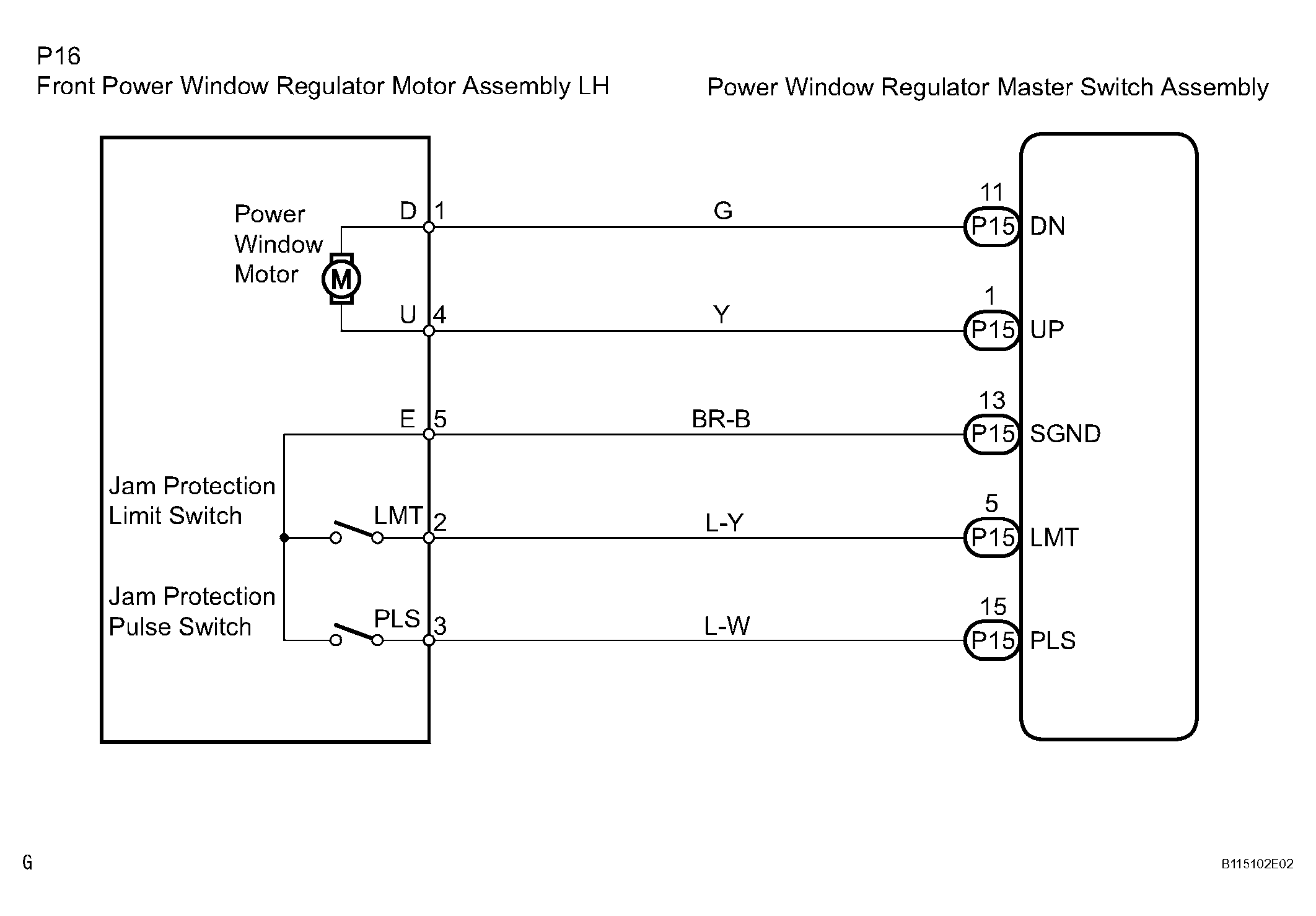

Fig 1: Driver Side Power Window Motor Circuit - Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

When using the intelligent tester, start from *1. When not using the intelligent tester, start from *2.

1. PERFORM ACTIVE TEST BY INTELLIGENT TESTER (POWER WINDOW OPERATION) *1
   1. Connect the intelligent tester (with CAN VIM) to the DLC3.
   2. Check that the power window operation can operate in the ACTIVE TEST (See DATA LIST / ACTIVE TEST  ).

   OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN ON PROBLEM SYMPTOMS TABLE

   NG: Go To Next Step

2. INSPECT FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY LH (POWER WINDOW MOTOR) *2
   1. Refer to motor inspection (see POWER WINDOW REGULATOR MOTOR  ).

   NG: REPLACE FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY LH

   OK: Go To Next Step

3. CHECK WIRE HARNESS (POWER WINDOW REGULATOR MASTER SWITCH - POWER WINDOW MOTOR)
   1. Refer to inspection (see INSPECTION  ).

   NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

   OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN ON PROBLEM SYMPTOMS TABLE
