Rear Jam Protection Limit / Pulse Switch RH Circuit: Wiring Diagram

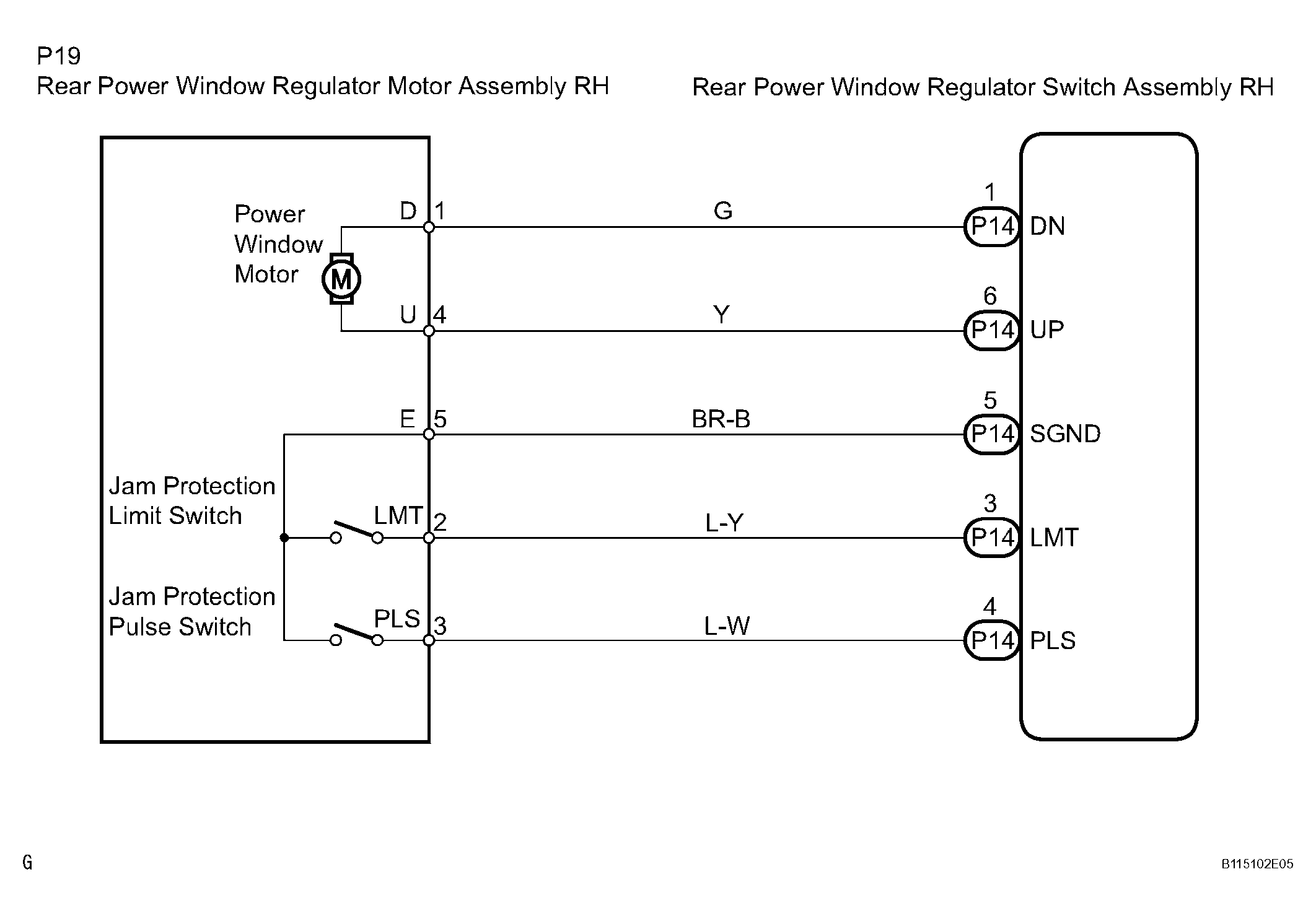

Fig 1: Rear Jam Protection Limit/Pulse Switch RH Circuit - Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

When using the intelligent tester, start from *1. When not using the intelligent tester, start from *2.

1. PERFORM ACTIVE TEST BY INTELLIGENT TESTER (POWER WINDOW OPERATION) *1
   1. Connect the intelligent tester (with CAN VIM) to the DLC3.
   2. Check that the power window operation can operate in the ACTIVE TEST (see DATA LIST / ACTIVE TEST  ).

   OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN ON PROBLEM SYMPTOMS TABLE

   NG: Go To Next Step

2. INSPECT REAR POWER WINDOW REGULATOR MOTOR ASSEMBLY RH (JAM PROTECTION LIMIT SWITCH AND JAM PROTECTION PULSE SWITCH) *2
   1. Refer to motor inspection (see POWER WINDOW REGULATOR MOTOR  ).

   NG: REPLACE REAR POWER WINDOW REGULATOR MOTOR ASSEMBLY RH

   OK: Go To Next Step

3. CHECK WIRE HARNESS (POWER WINDOW REGULATOR SWITCH - LIMIT SWITCH AND PULSE SWITCH) (POWER WINDOW SWITCH - LIMIT SWITCH AND PULSE SWITCH)
   1. Refer to inspection (see INSPECTION  ).

   NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

   OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN ON PROBLEM SYMPTOMS TABLE
