Windshield Glass: Adjustment

1. Prepare a thick white paper.
2. Prepare a screen for adjustment as shown in the illustration.

1. The vehicle is parked on a level surface.
2. Tire inflation pressure is the specified value.
3. A driver is in the driver's seat and vehicle is in a state ready for driving (with a tank full).
4. Turn the height control switch to the normal position.

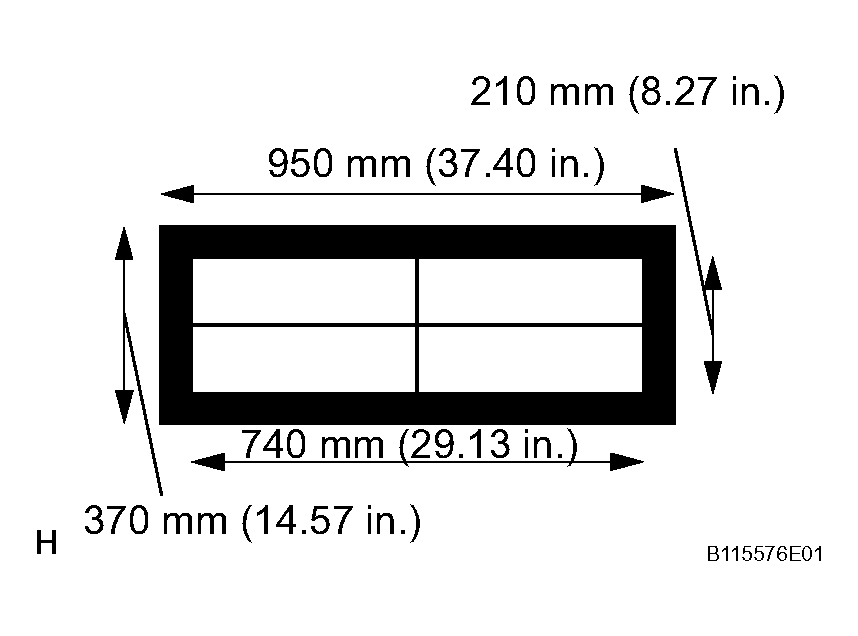

   Fig 1: Identifying White Paper Screen Dimensions For Adjustment Of Camera

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Check whether the vehicle height is correct. (see FRONT WHEEL ALIGNMENT )
6. The vehicle has been bounced several times.

1. Stand the paper perpendicular to the ground at the position 1 m (3.28 ft.) away from the front to bumper.
2. Place the paper so that it is parallel to the front of the vehicle.
3. Make sure that the center line of the paper is 95mm (3.74 in.) to the right of the center line of the vehicle.

1. Switch to Inspection Mode (see OPERATION CHECK ).

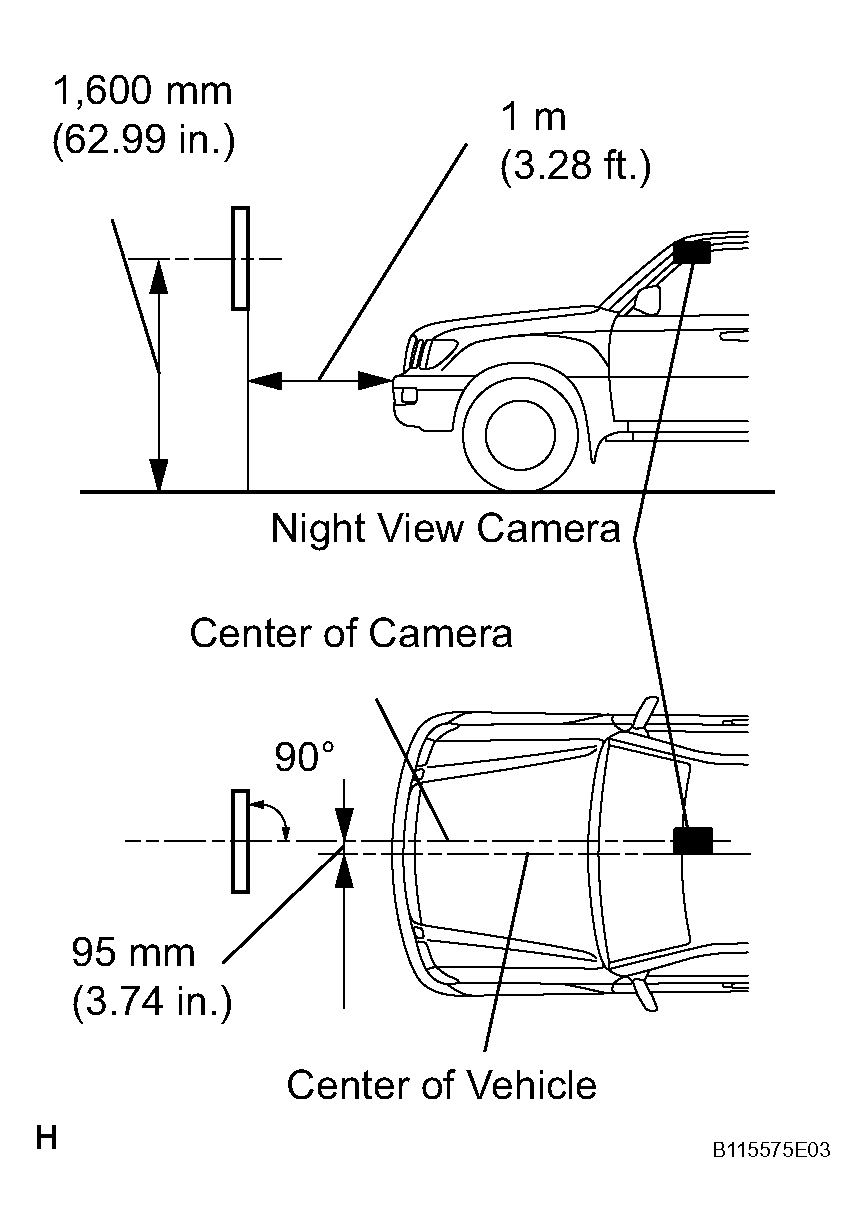

   Fig 2: Checking Night View Camera Aiming

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Check whether the image is displayed correctly on the night view display.

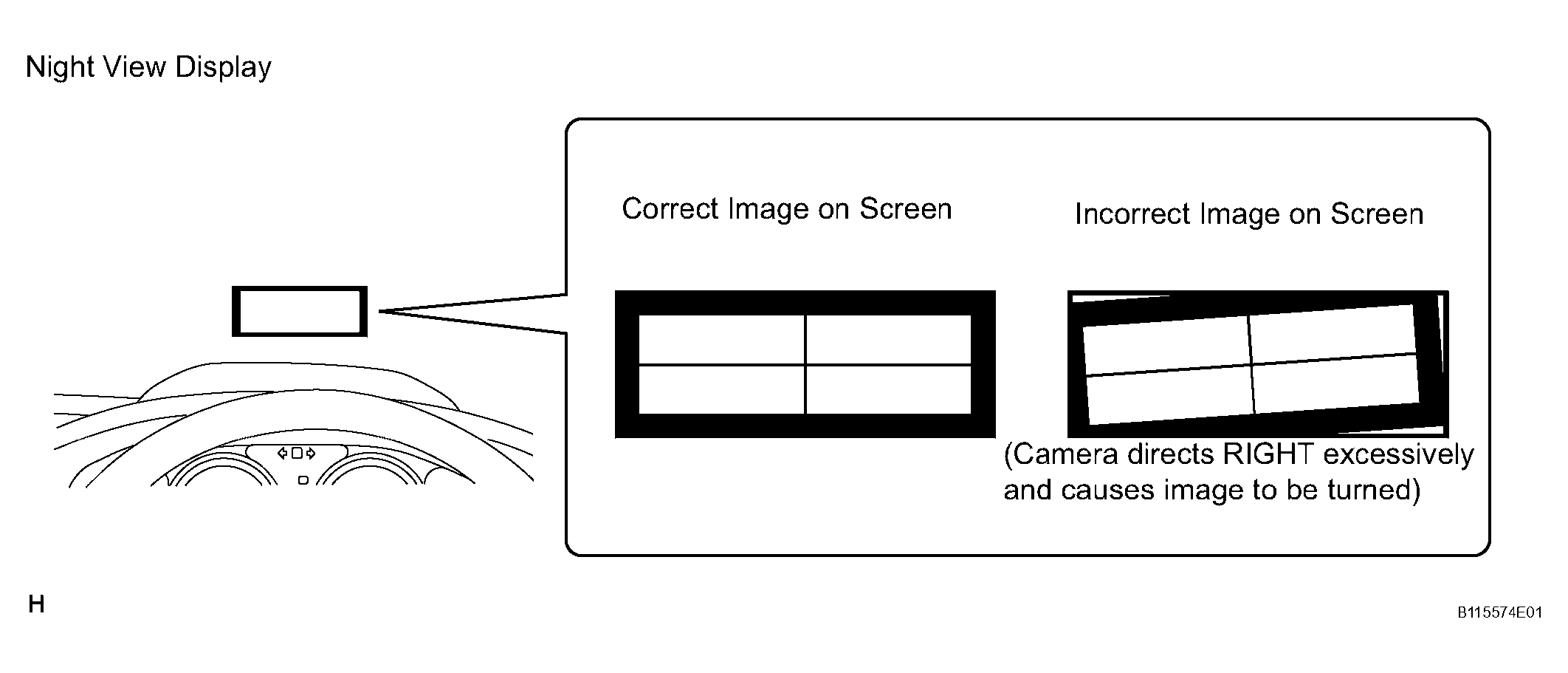

Fig 3: Identifying Night View Display Image

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

There are approximately 3° of toleration in each direction (horizontal, vertical and rotational).

1. Remove the nut and night view camera cover from the night view display.
2. Using a 5.5 mm socket driver or wrench, loosen the fixing screws.
3. Using a 5.5 mm socket driver or wrench, turn the adjusting screws to adjust the night view display screen's image so that it is correctly displayed.

   HINT:

   When adjusting in all 3 directions, follow this order: right and left ("A"), up and down ("B"), and rotating ("C").

4. After the adjustment, using a 5.5 mm socket driver or wrench, tighten the fixing screws to fix the camera in place.
   NIGHT VIEW CAMERA ADJUSTMENT REFERENCE



   Adjusting Direction	Adjusting Method	Adjusting Angle
   Right and Left ("A")	When turning the aiming bolt clockwise, camera moves to right (Target of Display moves to left) and when turning counterclockwise, it moves to left (Target of Display moves to right).	It moves approx. 2.14° per revolution.
   Up and Down ("B")	When turning the aiming bolt clockwise, camera moves down (Target of Display moves p) and when turning counterclockwise, it moves up (Target of Display moves down).	It moves approx. 3° per revolution.
   Rotating direction ("C")	When turning the aiming bolt clockwise, camera moves counterclockwise Rotating direction ("C") (Target of Display moves clockwise) and when turning counterclockwise, it moves clockwise (Target of Display moves counterclockwise).	It moves approx. 2.74° per revolution.

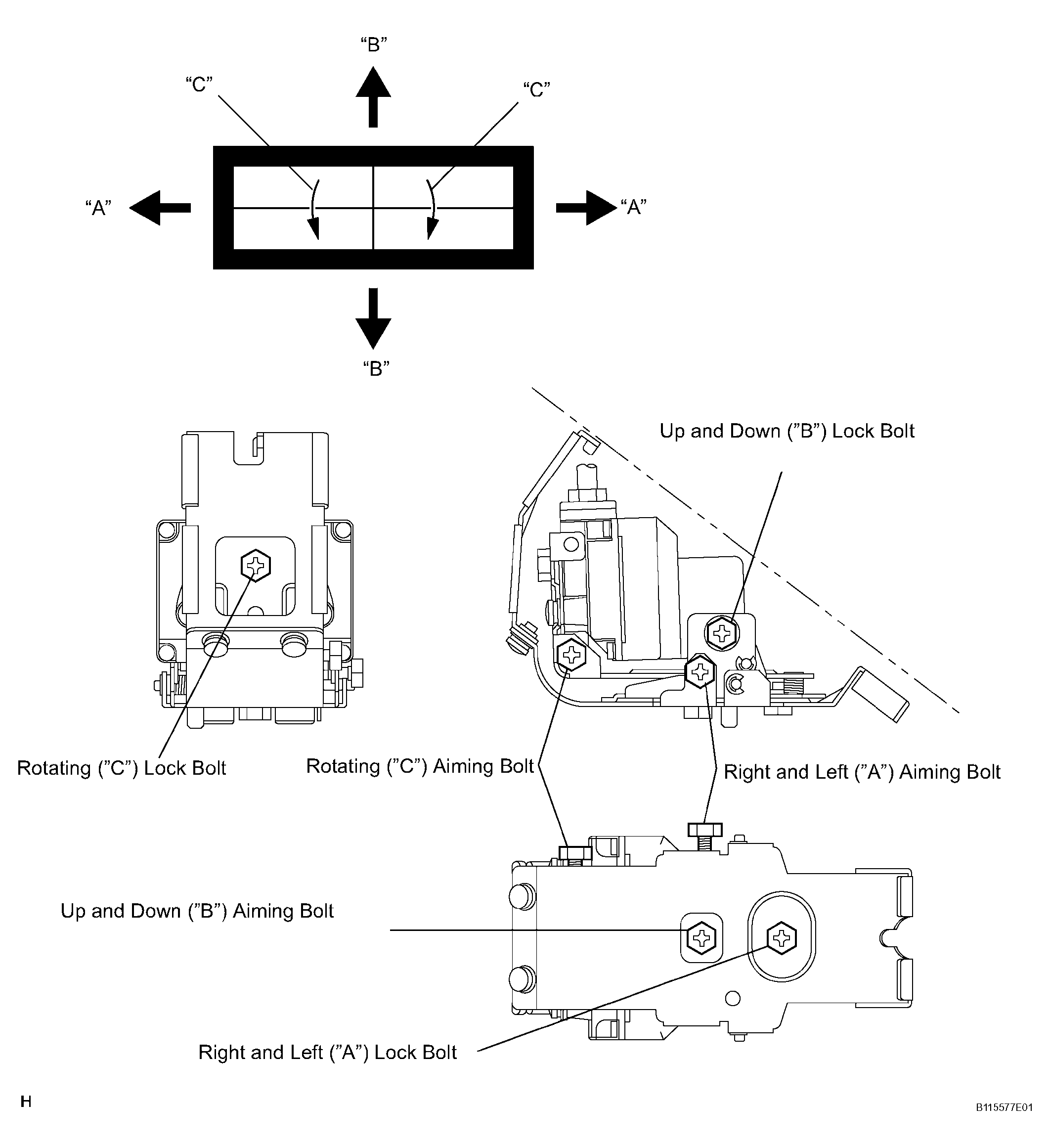

   Fig 4: Identifying Night View Camera Adjustment

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Install the nut and night view camera cover to the night view display.
