TRAC Indicator Light Circuit: Wiring Diagram

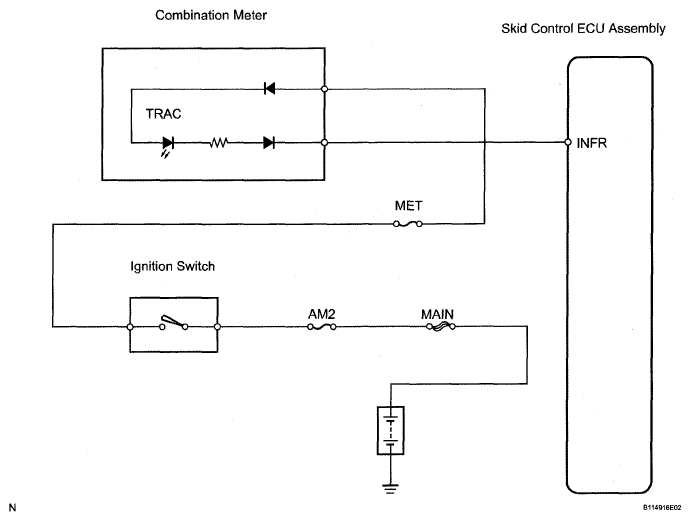

Fig 1: TRAC Indicator Light - Wiring Diagram
G05197672Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
