ABS, TRAC and VSC: Notes — 2007 Lexus LX 470 Service Manual ~ LEMON Manuals

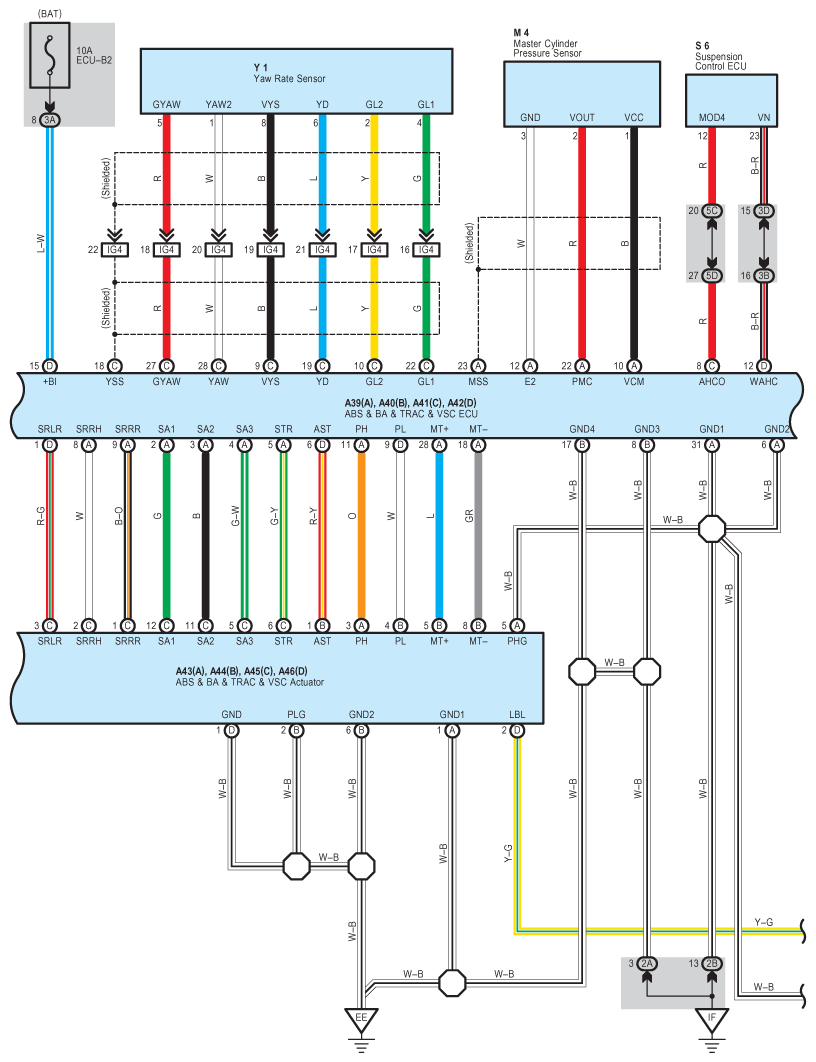

Fig 1: ABS, TRAC And VSC - Wiring Diagram (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

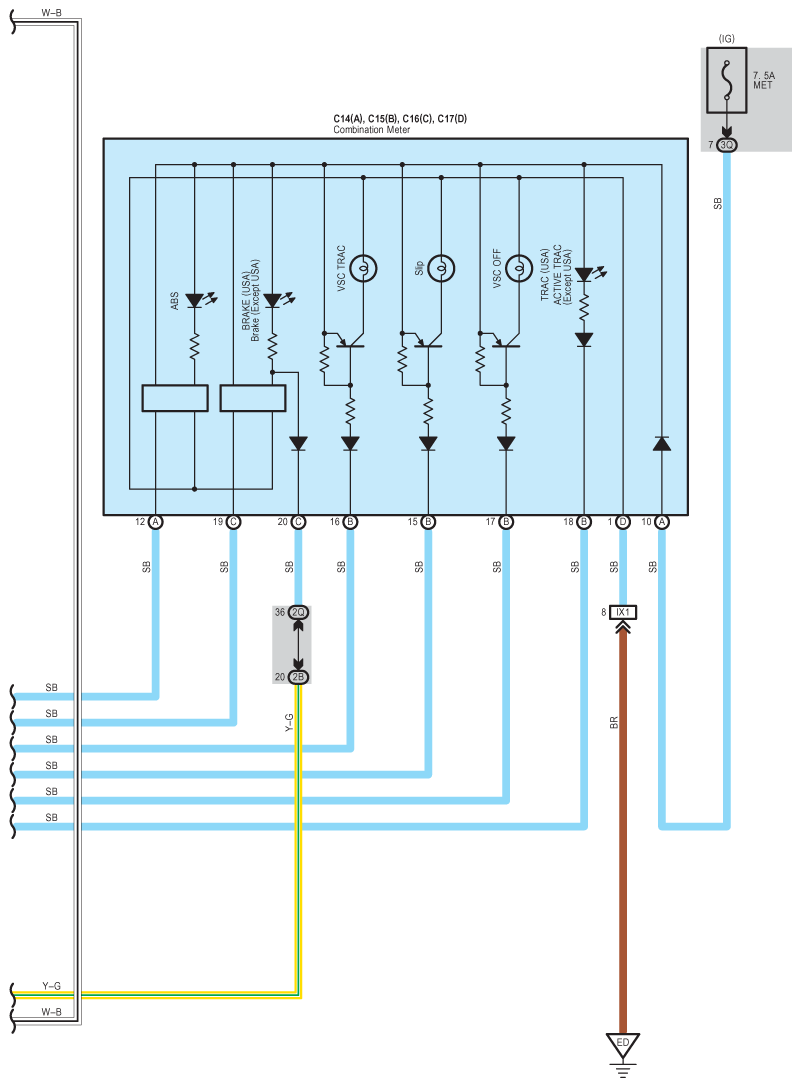

Fig 2: ABS, TRAC And VSC - Wiring Diagram (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

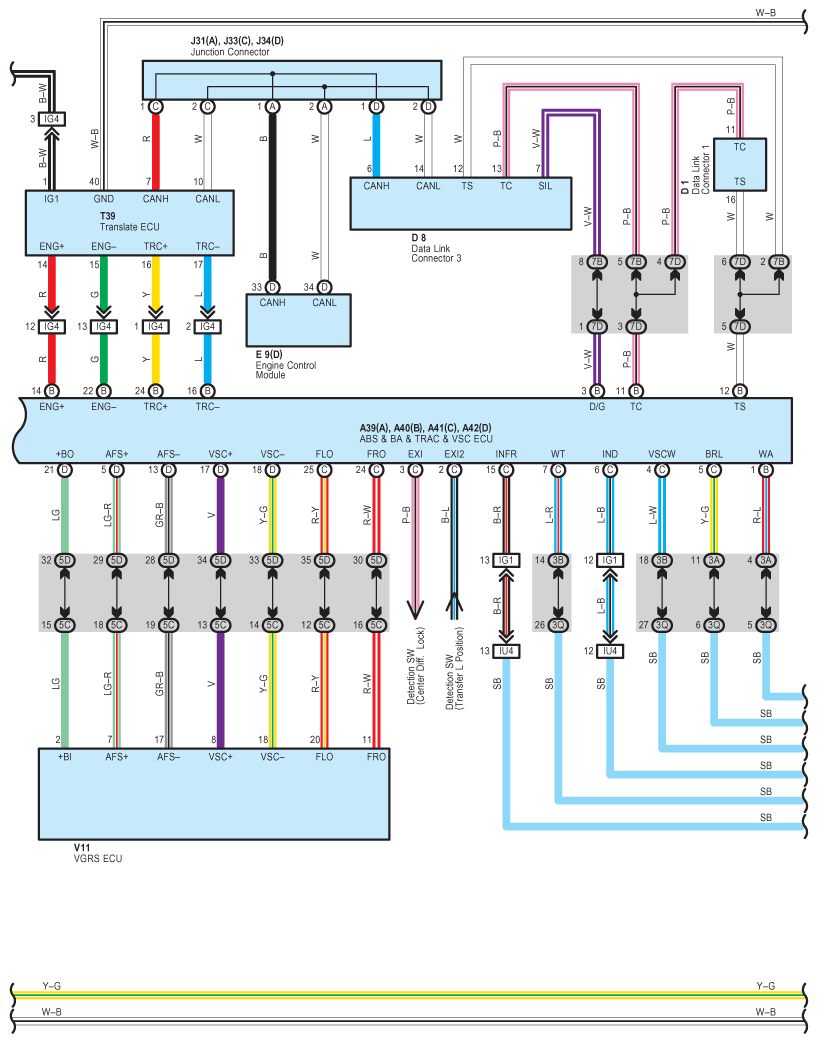

Fig 3: ABS, TRAC And VSC - Wiring Diagram (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

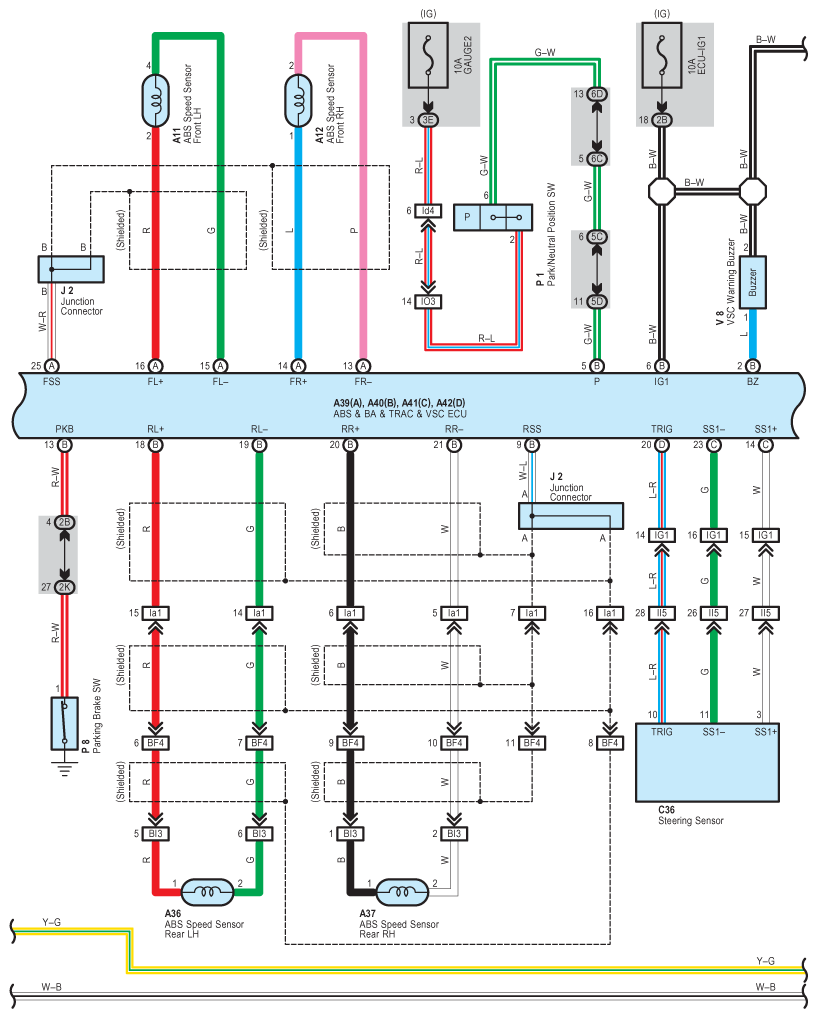

Fig 4: ABS, TRAC And VSC - Wiring Diagram (4 Of 5)

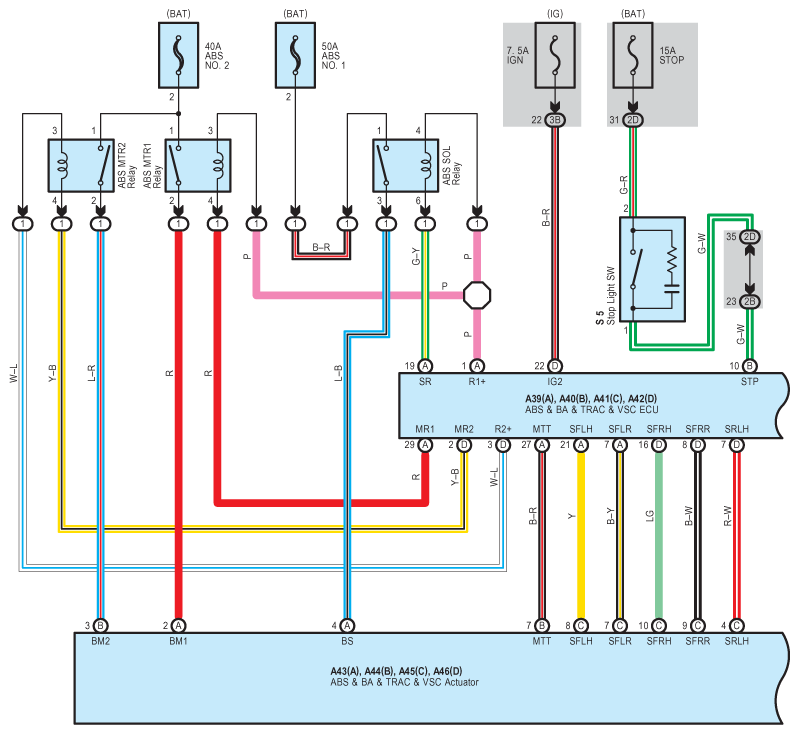

Fig 5: ABS, TRAC And VSC - Wiring Diagram (5 Of 5)
