AHC and Adaptive Variable Suspension: Notes

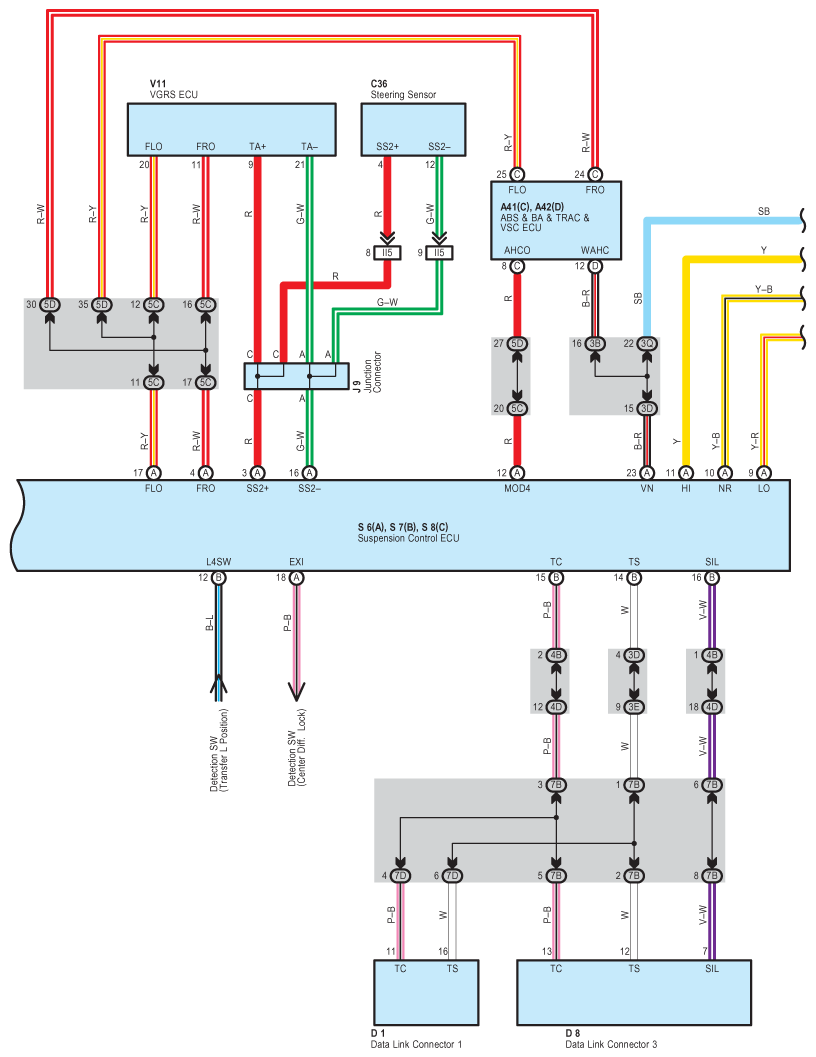

Fig 1: AHC And Adaptive Variable Suspension - Wiring Diagram (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

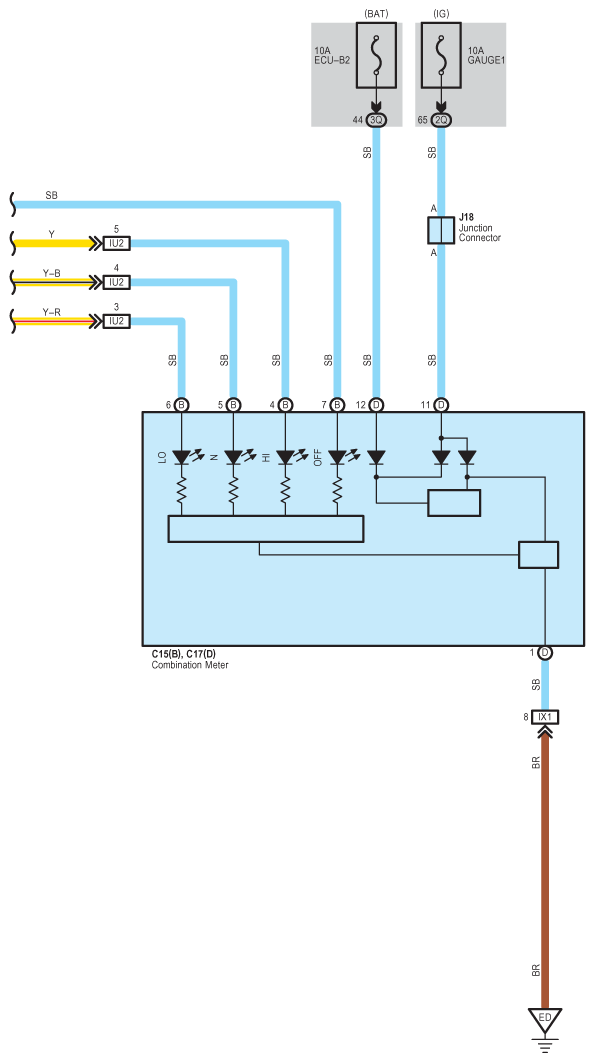

Fig 2: AHC And Adaptive Variable Suspension - Wiring Diagram (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

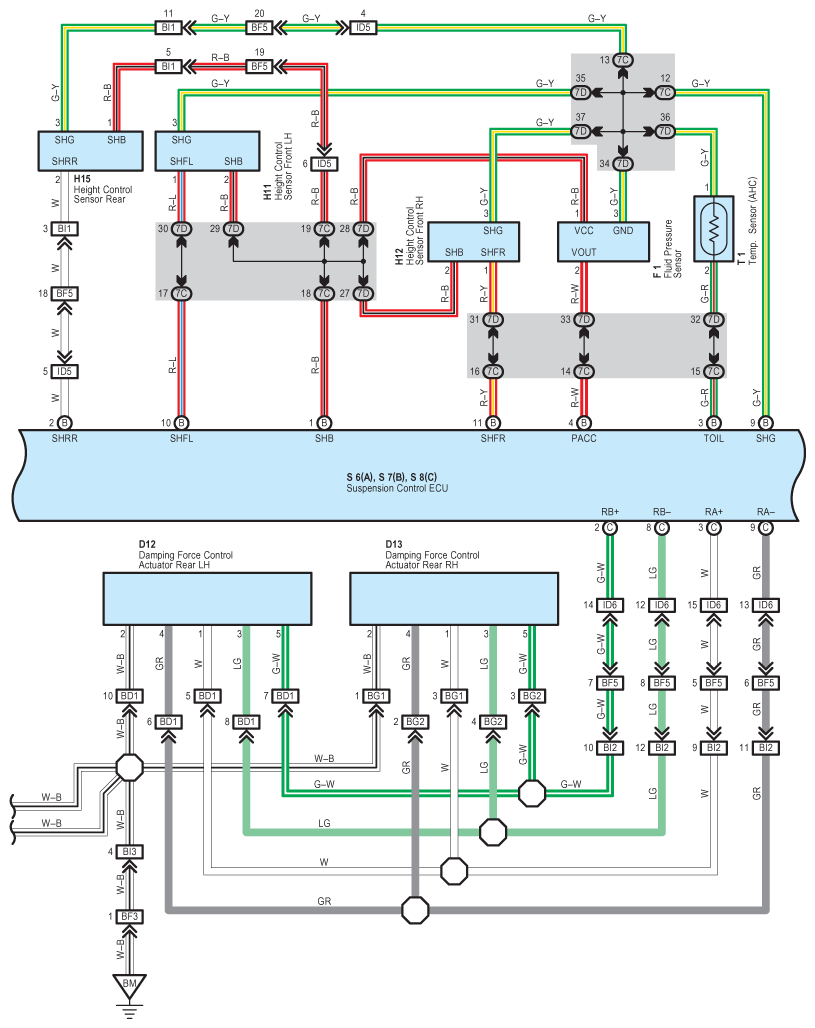

Fig 3: AHC And Adaptive Variable Suspension - Wiring Diagram (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

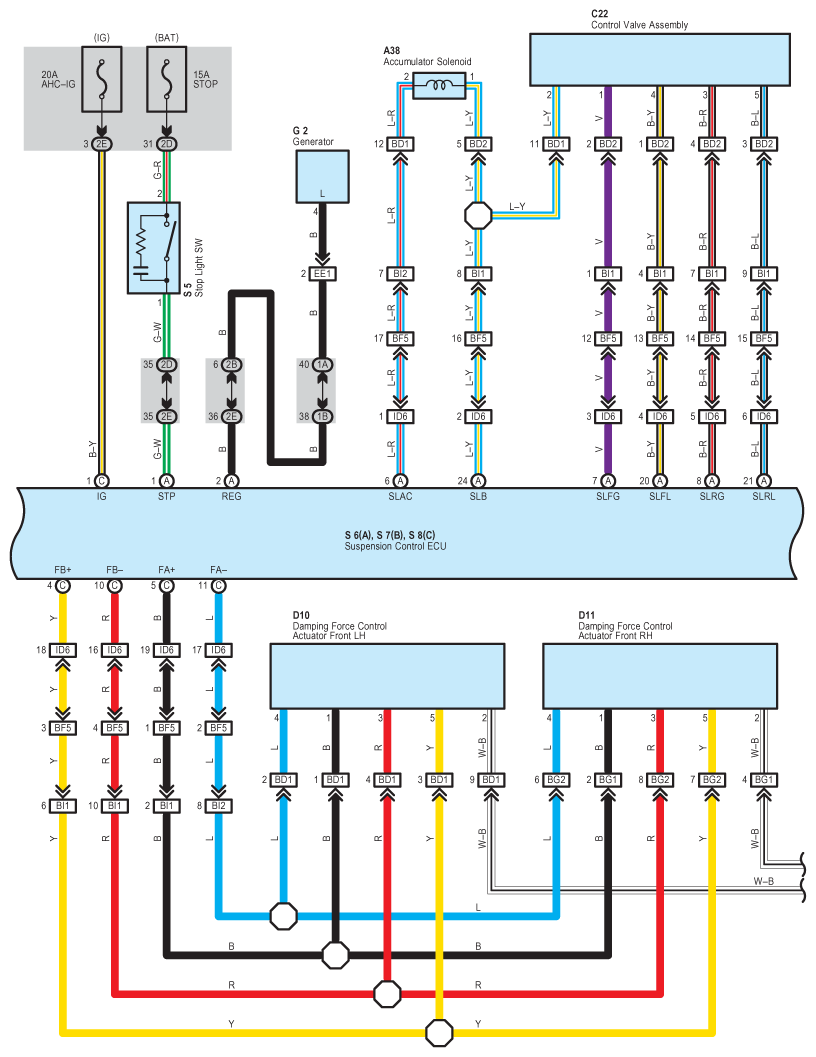

Fig 4: AHC And Adaptive Variable Suspension - Wiring Diagram (4 Of 5)

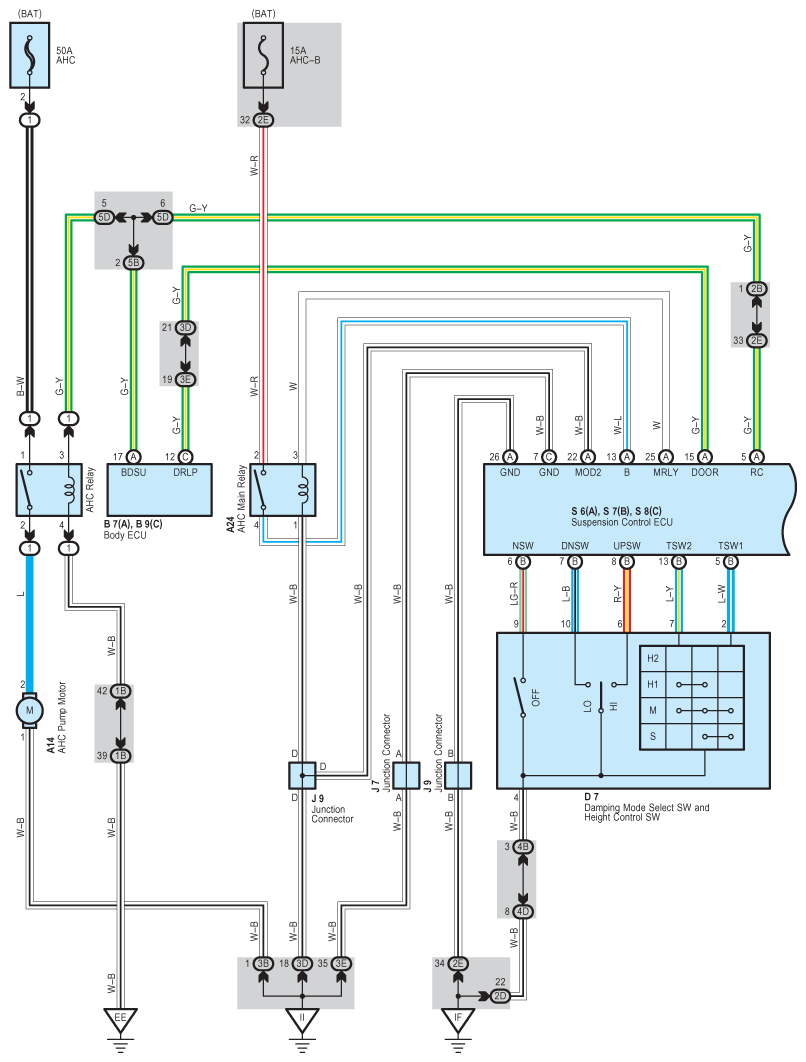

Fig 5: AHC And Adaptive Variable Suspension - Wiring Diagram (5 Of 5)
