Air Conditioning (Rear): Notes

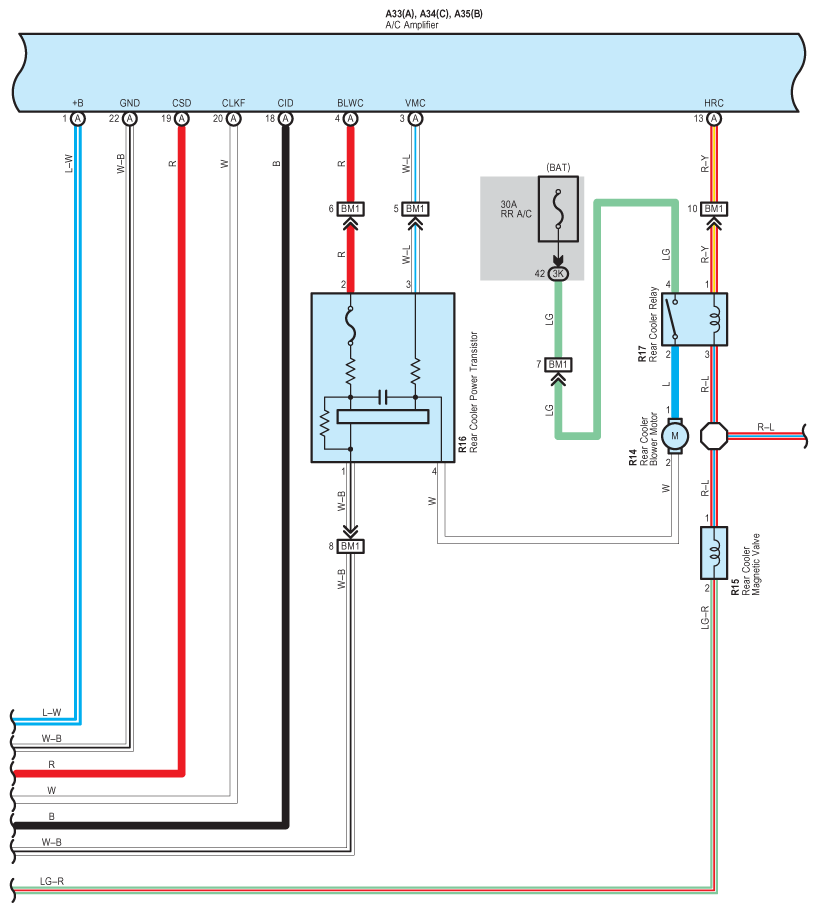

Fig 1: Air Conditioning (Rear) - Wiring Diagram (1 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

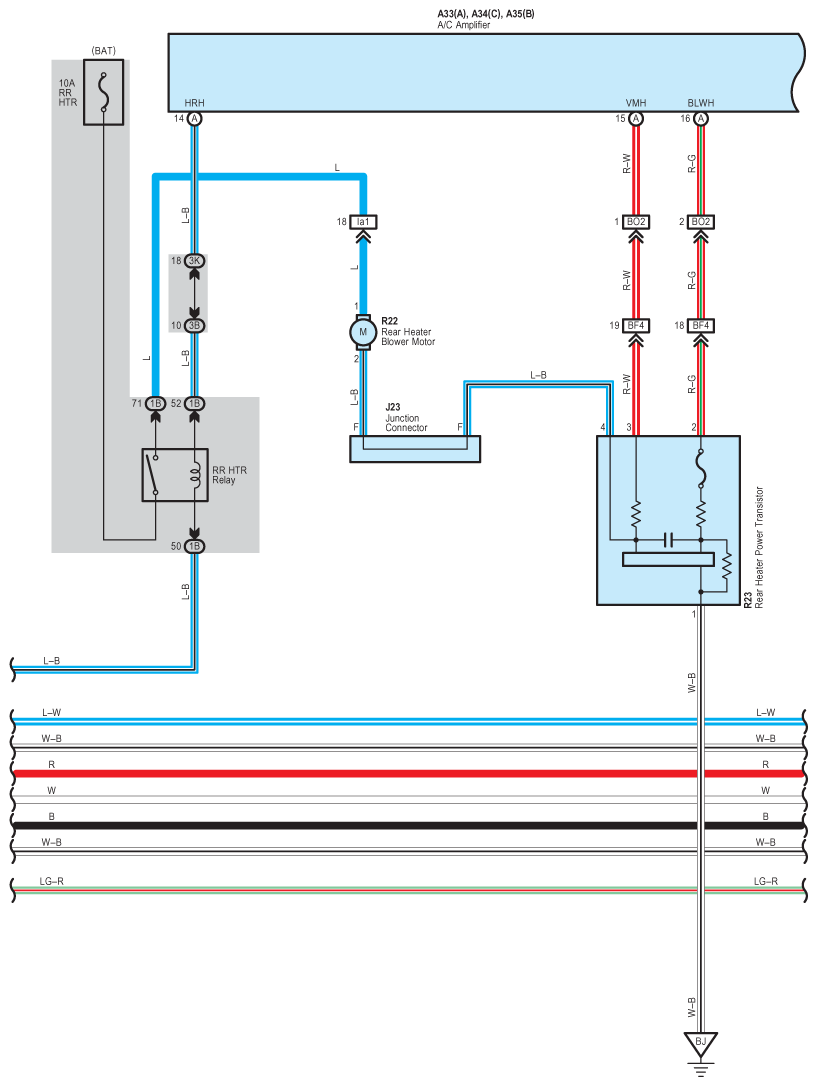

Fig 2: Air Conditioning (Rear) - Wiring Diagram (2 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

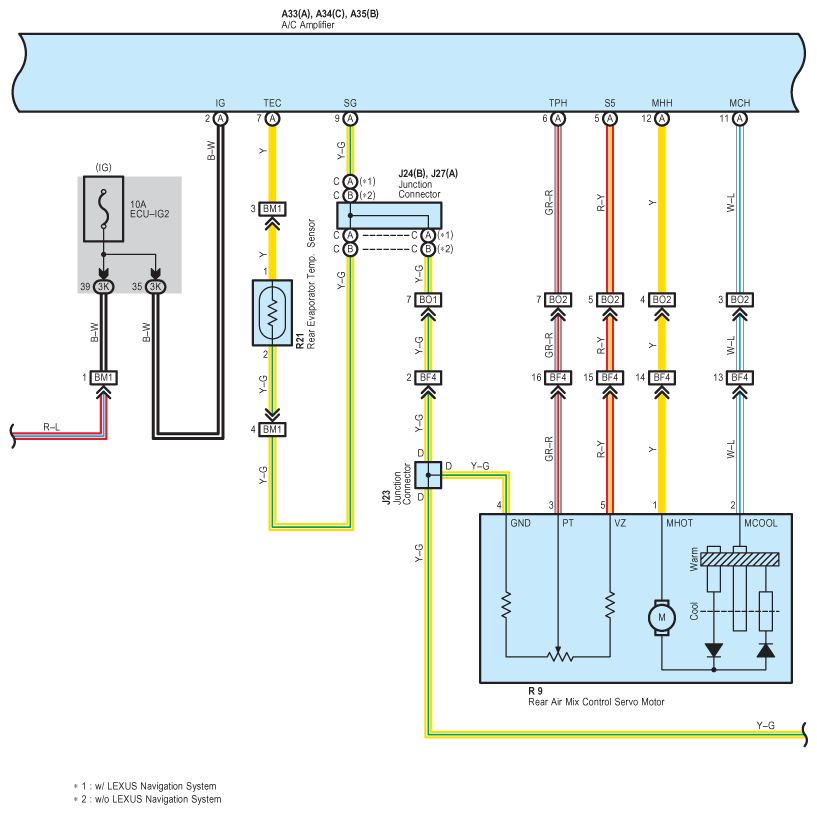

Fig 3: Air Conditioning (Rear) - Wiring Diagram (3 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

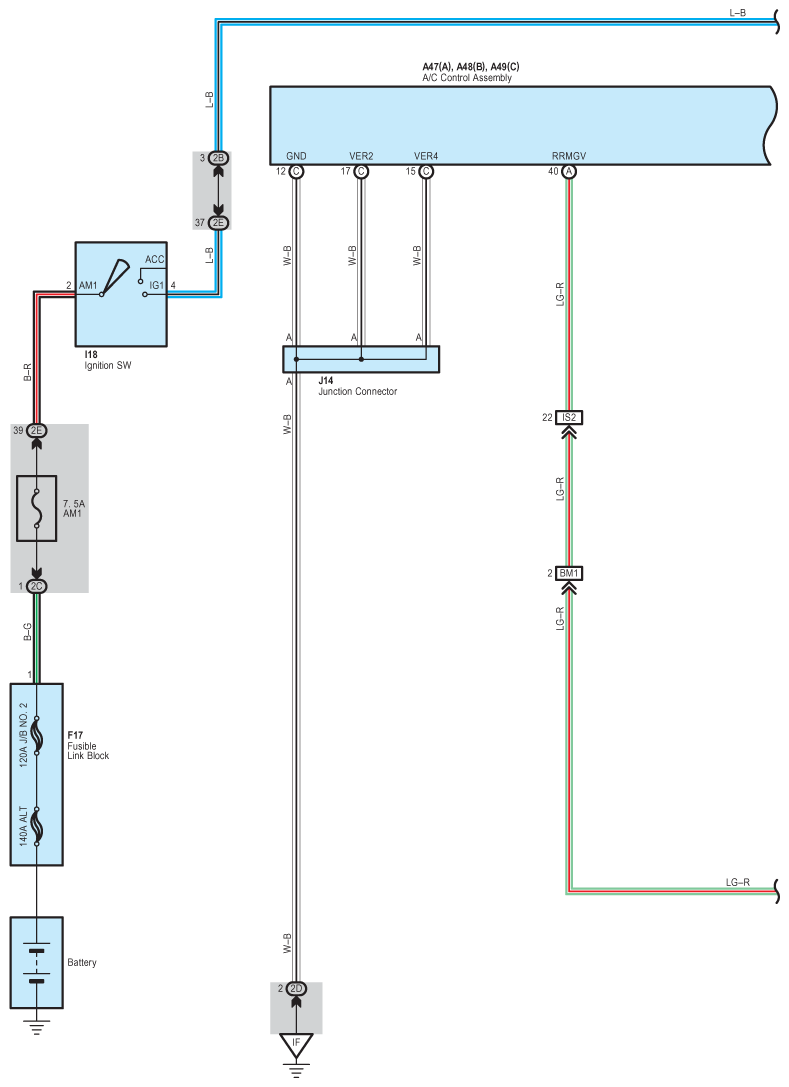

Fig 4: Air Conditioning (Rear) - Wiring Diagram (4 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

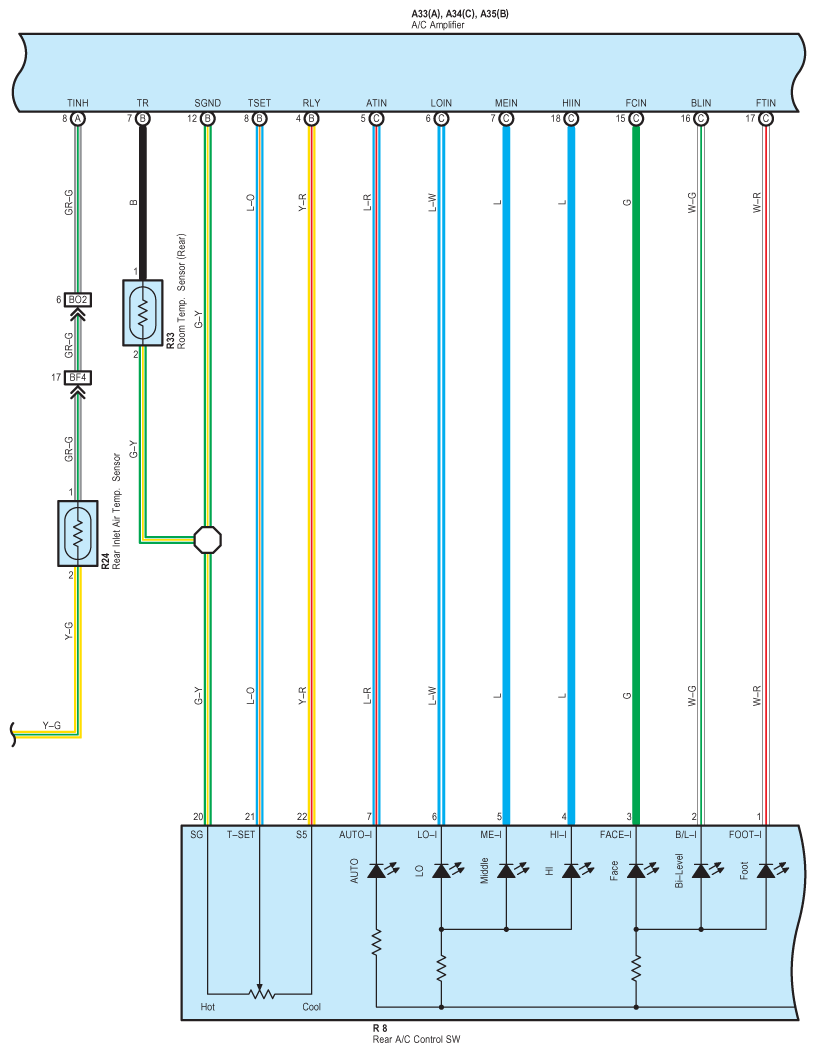

Fig 5: Air Conditioning (Rear) - Wiring Diagram (5 Of 7)

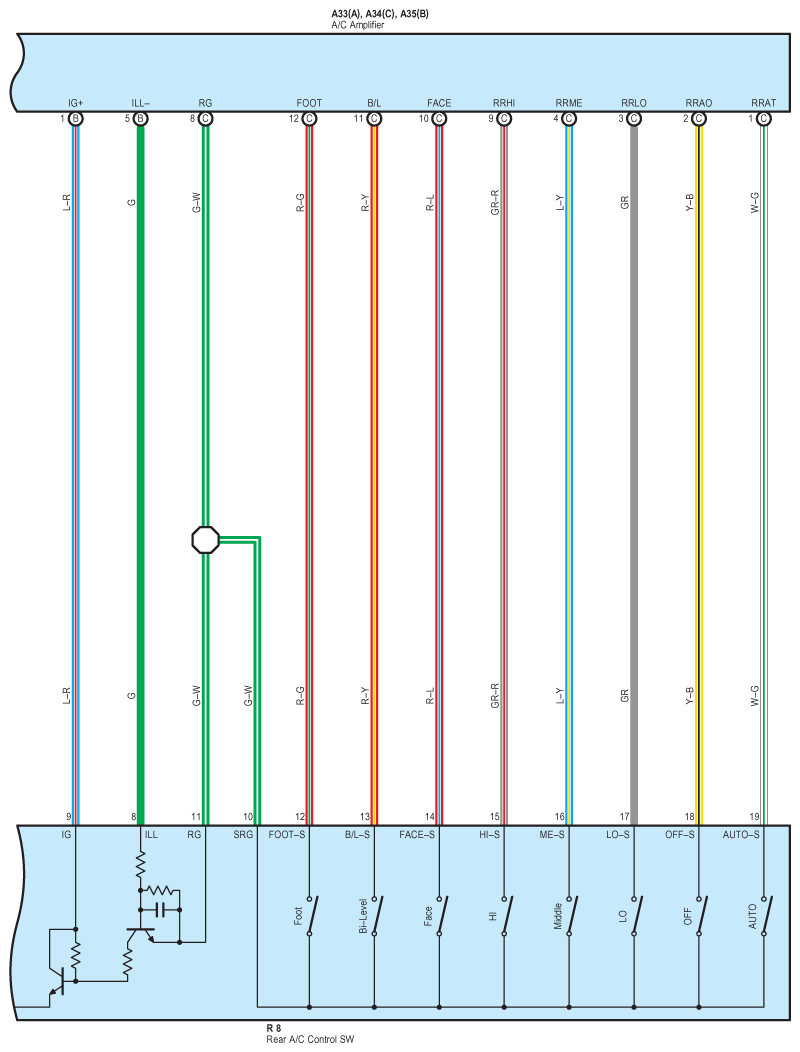

Fig 6: Air Conditioning (Rear) - Wiring Diagram (6 Of 7)

Fig 7: Air Conditioning (Rear) - Wiring Diagram (7 Of 7)
