Center Differential Lock: Notes

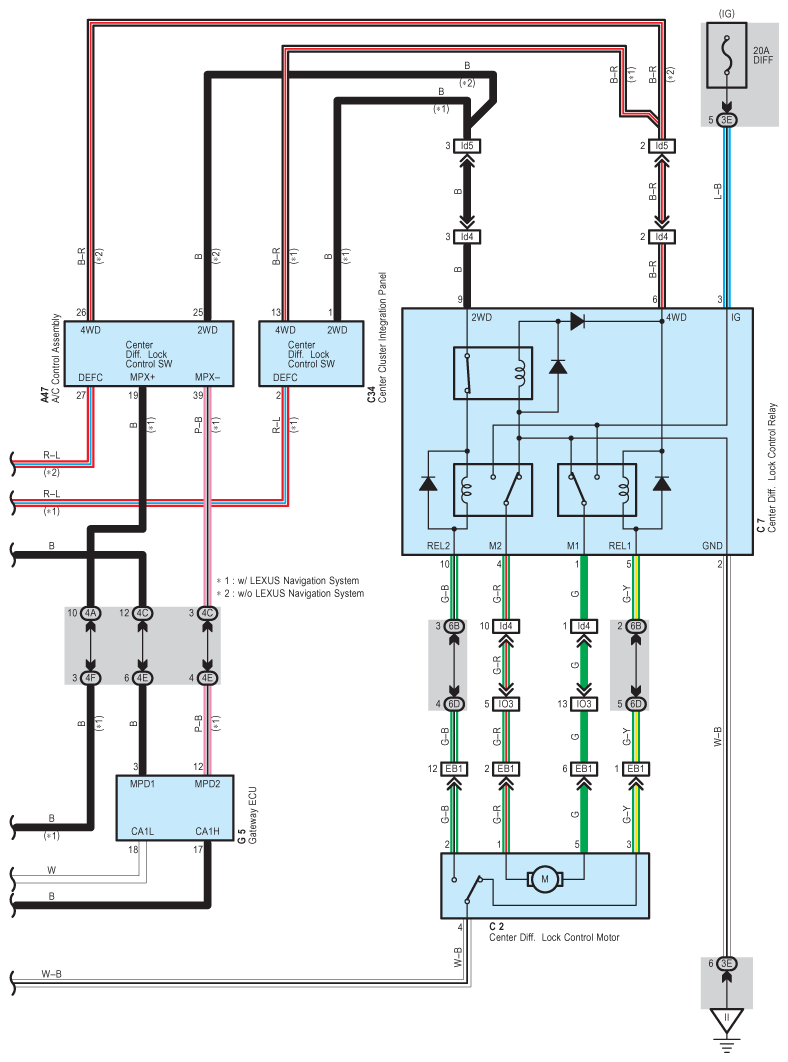

Fig 1: Center Differential Lock - Wiring Diagram (1 Of 3)
G08922833Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

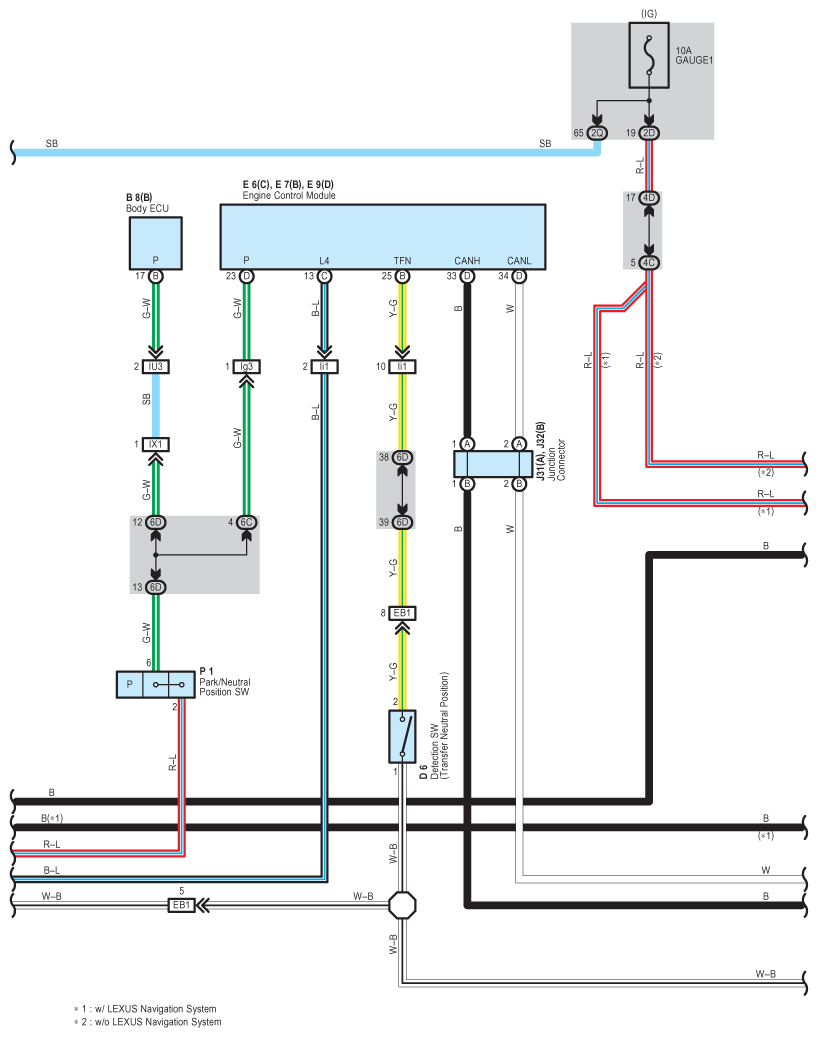

Fig 2: Center Differential Lock - Wiring Diagram (2 Of 3)
G08922834Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

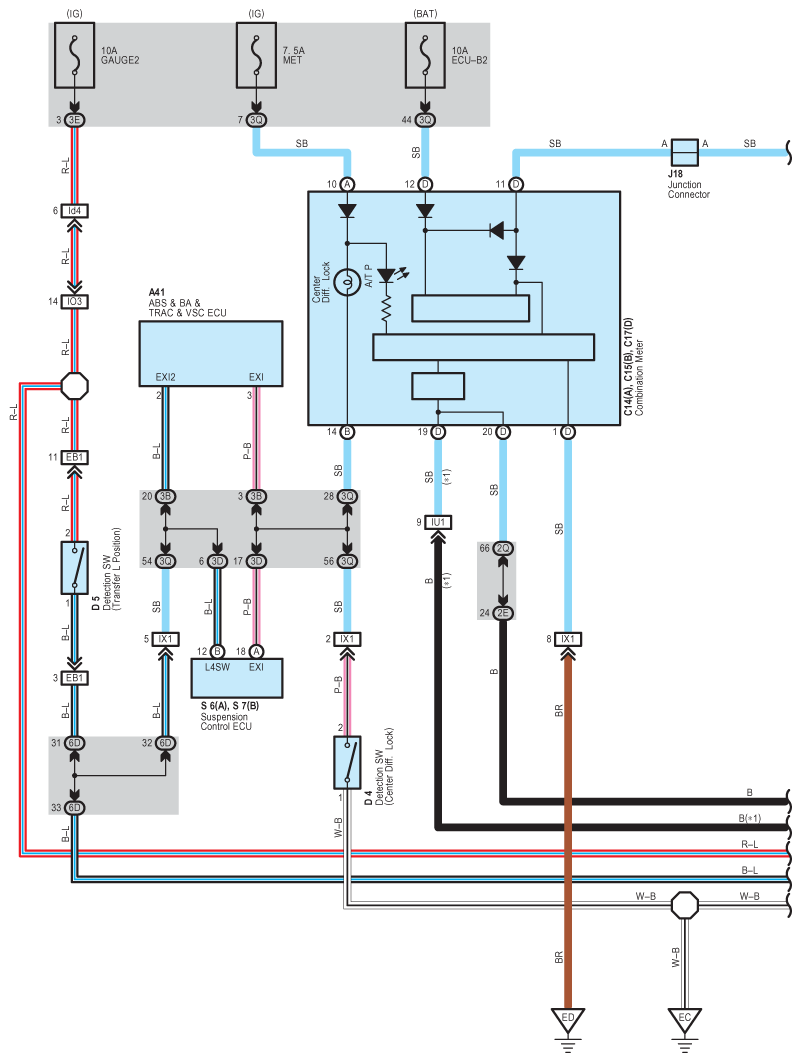

Fig 3: Center Differential Lock - Wiring Diagram (3 Of 3)
G08922835Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
