Engine Immobilizer System: Notes

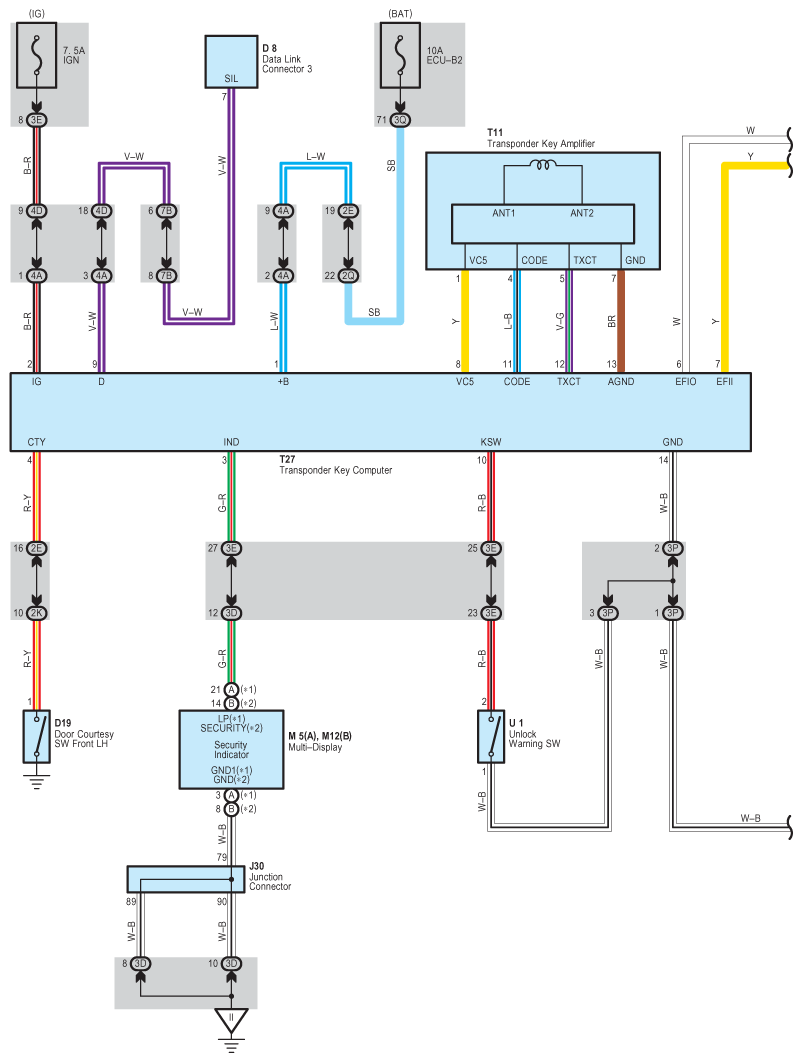

Fig 1: Engine Immobilizer System - Wiring Diagram (1 Of 2)
G08922724Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

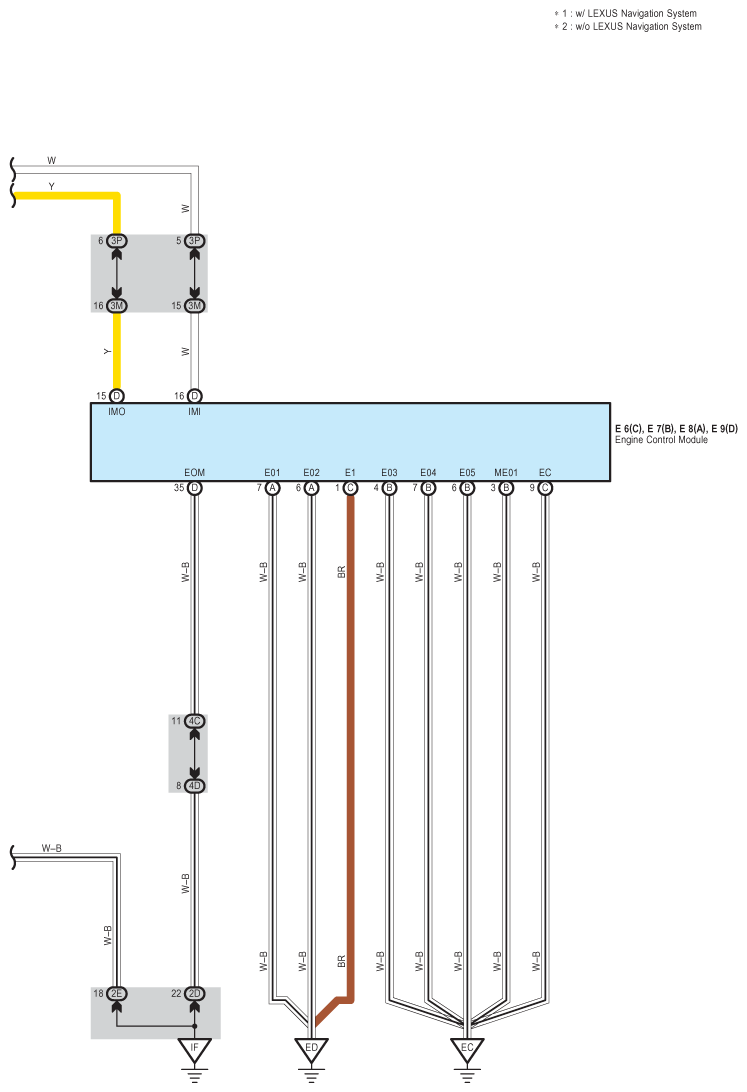

Fig 2: Engine Immobilizer System - Wiring Diagram (2 Of 2)
G08922725Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
