Front Wiper and Washer: Notes

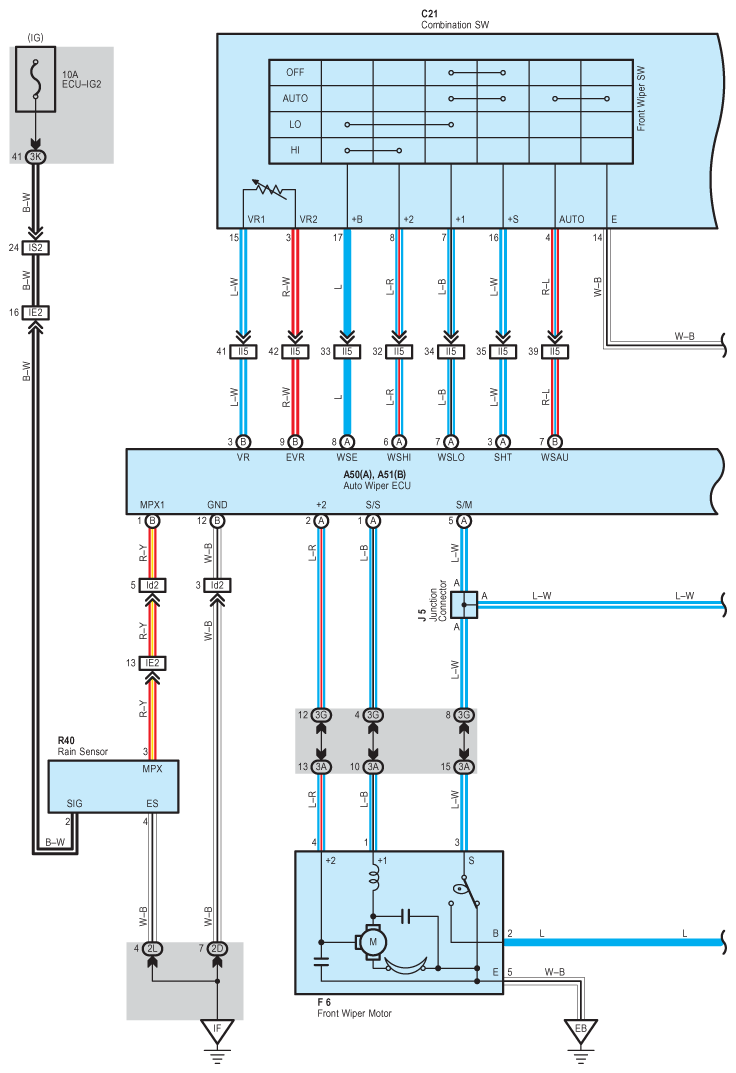

Fig 1: Front Wiper And Washer - Wiring Diagram (1 Of 4)
G08922790Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

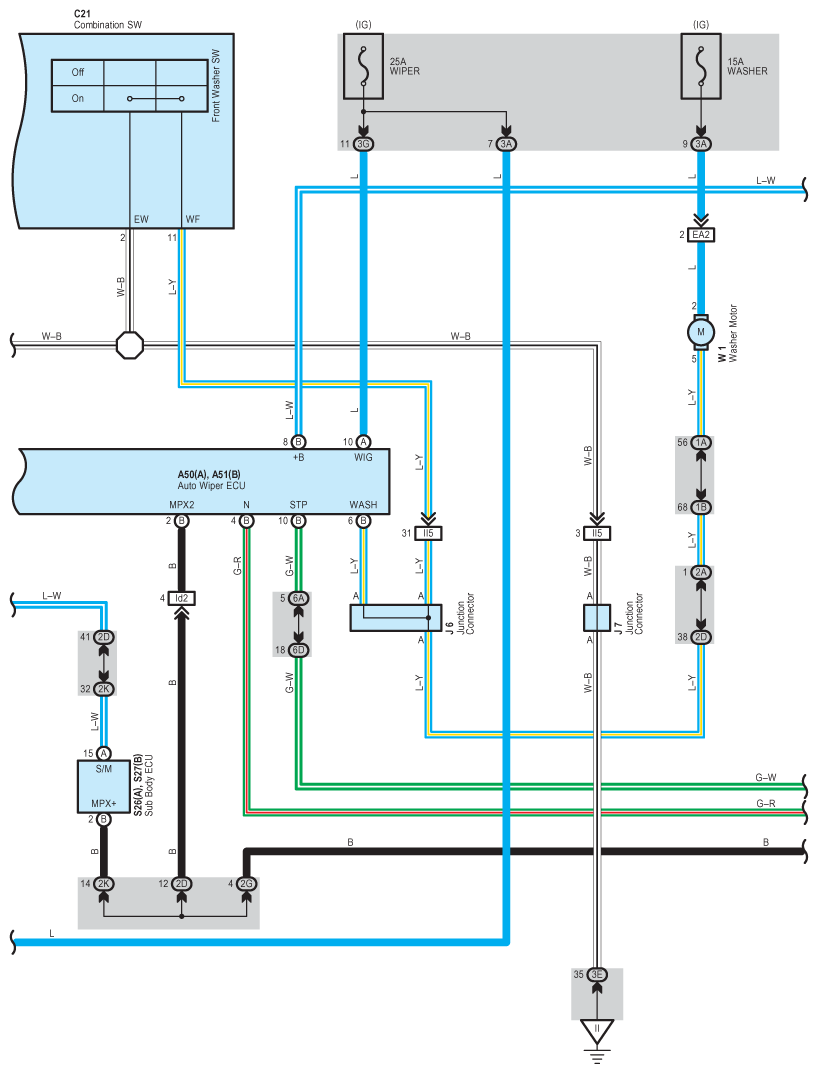

Fig 2: Front Wiper And Washer - Wiring Diagram (2 Of 4)
G08922791Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Front Wiper And Washer - Wiring Diagram (3 Of 4)
G08922792Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Front Wiper And Washer - Wiring Diagram (4 Of 4)
G08922793Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
