Power Rear Quarter Window: Notes

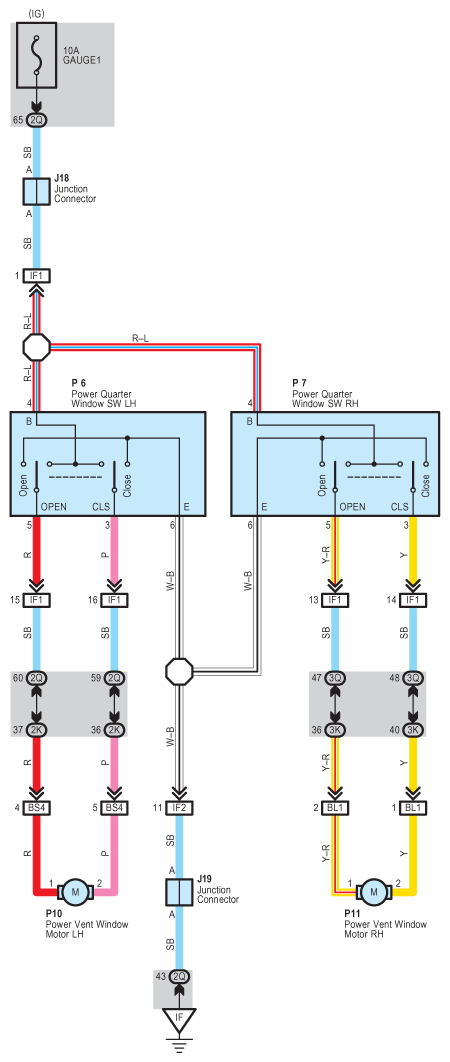

Fig 1: Power Rear Quarter Window - Circuit Diagram
G08922871Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
