Instrument Panel Safety Pad: Components

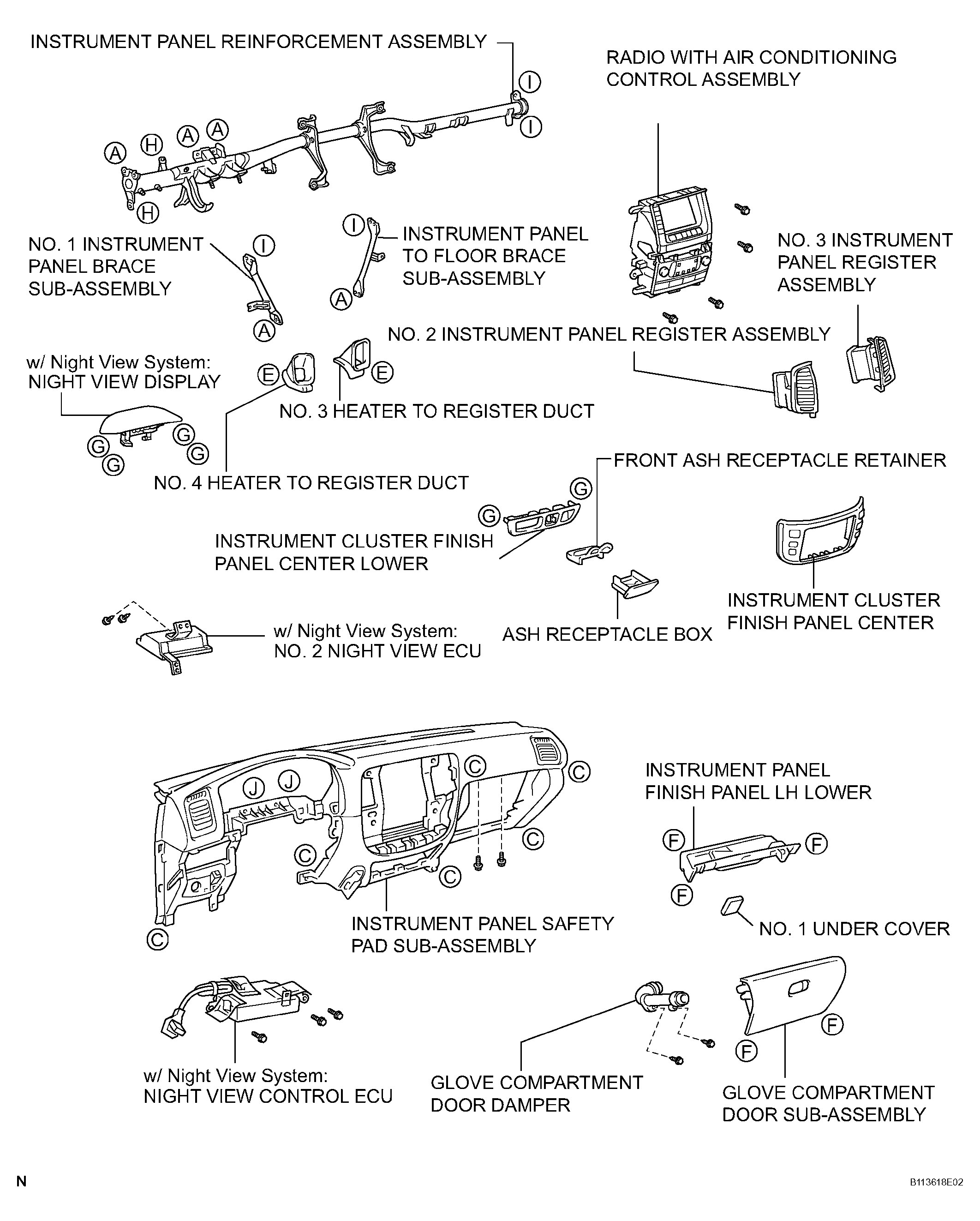

Fig 1: Identifying Instrument Panel Safety Pad Components (1 Of 5)
G04065804Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

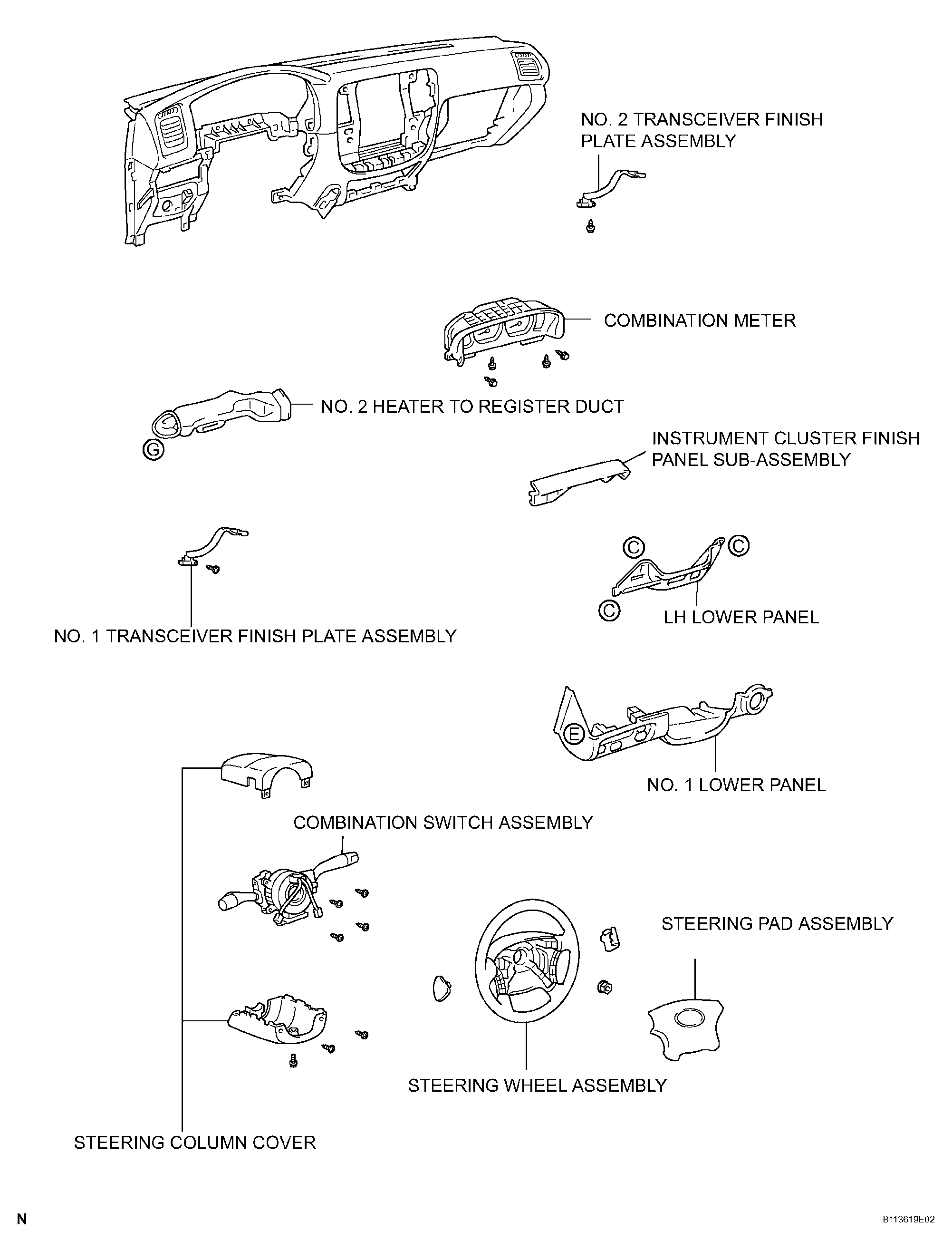

Fig 2: Identifying Instrument Panel Safety Pad Components (2 Of 5)
G04065805Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

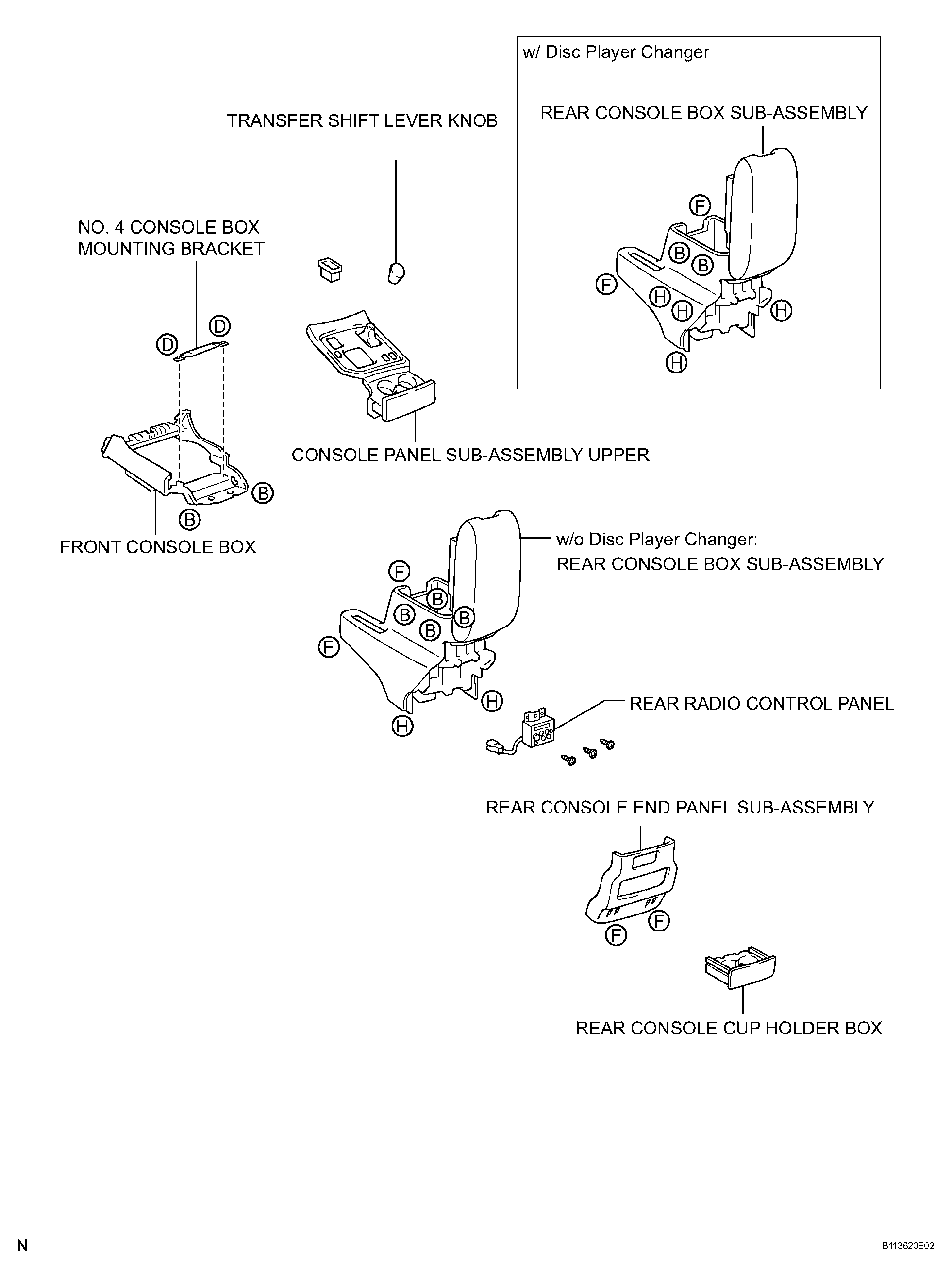

Fig 3: Identifying Instrument Panel Safety Pad Components (3 Of 5)
G04065806Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

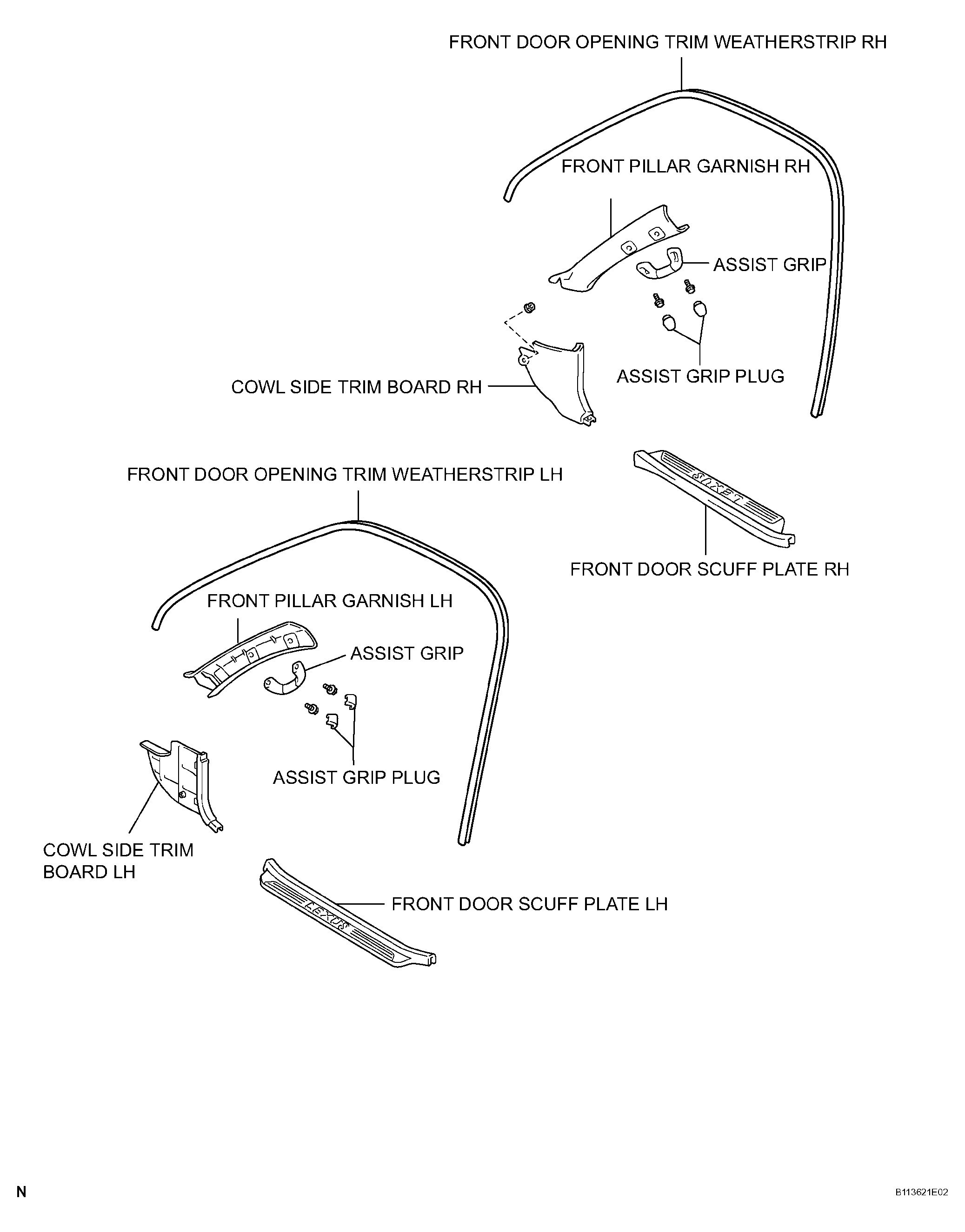

Fig 4: Identifying Instrument Panel Safety Pad Components (4 Of 5)
G04065807Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

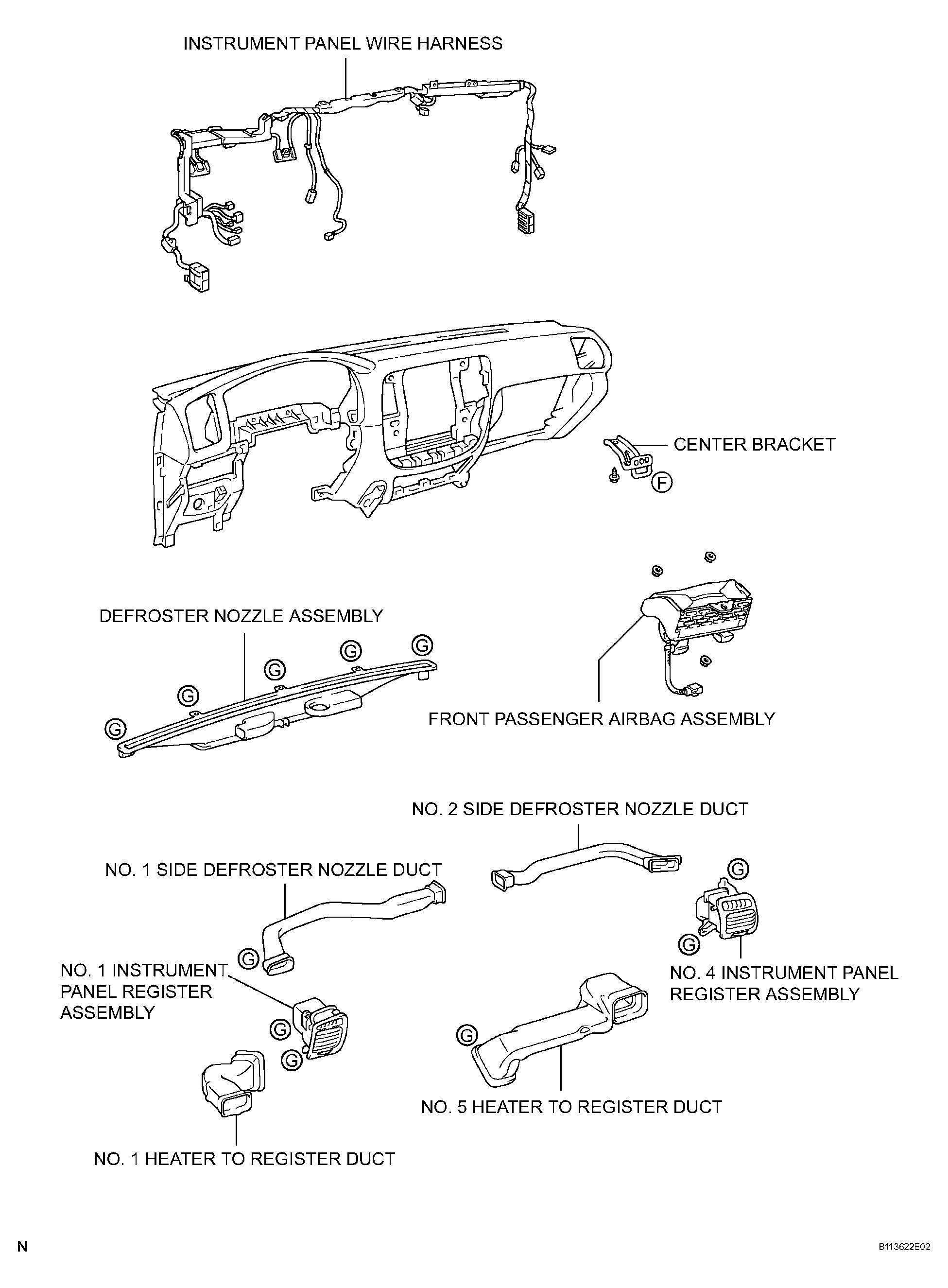

Fig 5: Identifying Instrument Panel Safety Pad Components (5 Of 5)
G04065808Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 6: Identifying Screw Shapes And Sizes
G04065809Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
