ECM Power Source Circuit: Wiring Diagram

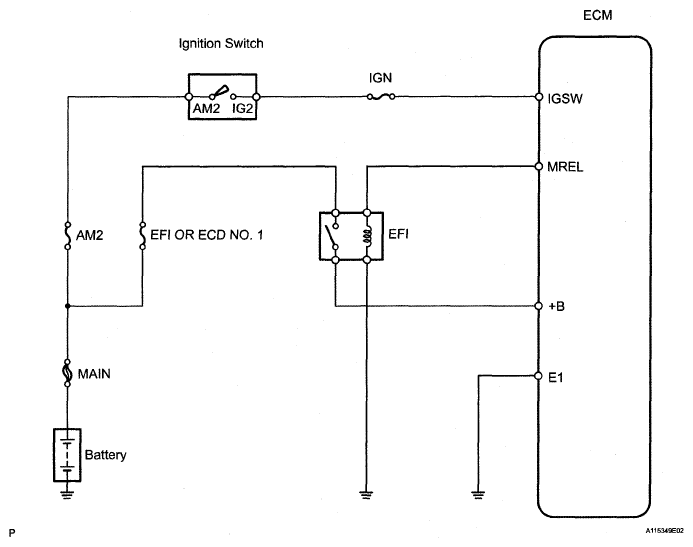

Fig 1: Ignition Switch - Wiring Diagram

G05196866

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
