Fuel Pump: Components

Fig 1: Replacement Components Fuel Pump With Torque Specifications (1 Of 3)
G04062155Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

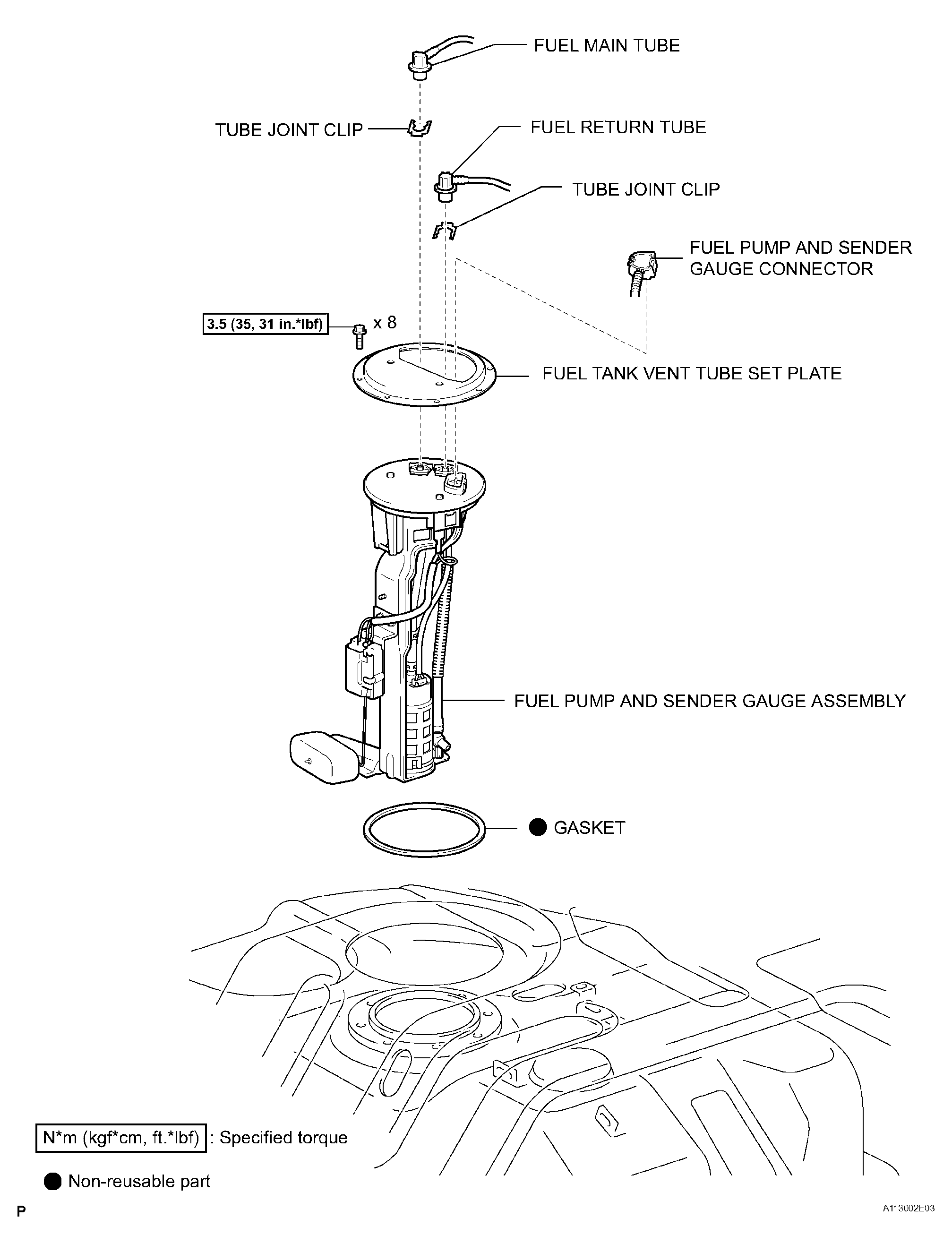

Fig 2: Replacement Components Fuel Pump With Torque Specifications (2 Of 3)
G04062156Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

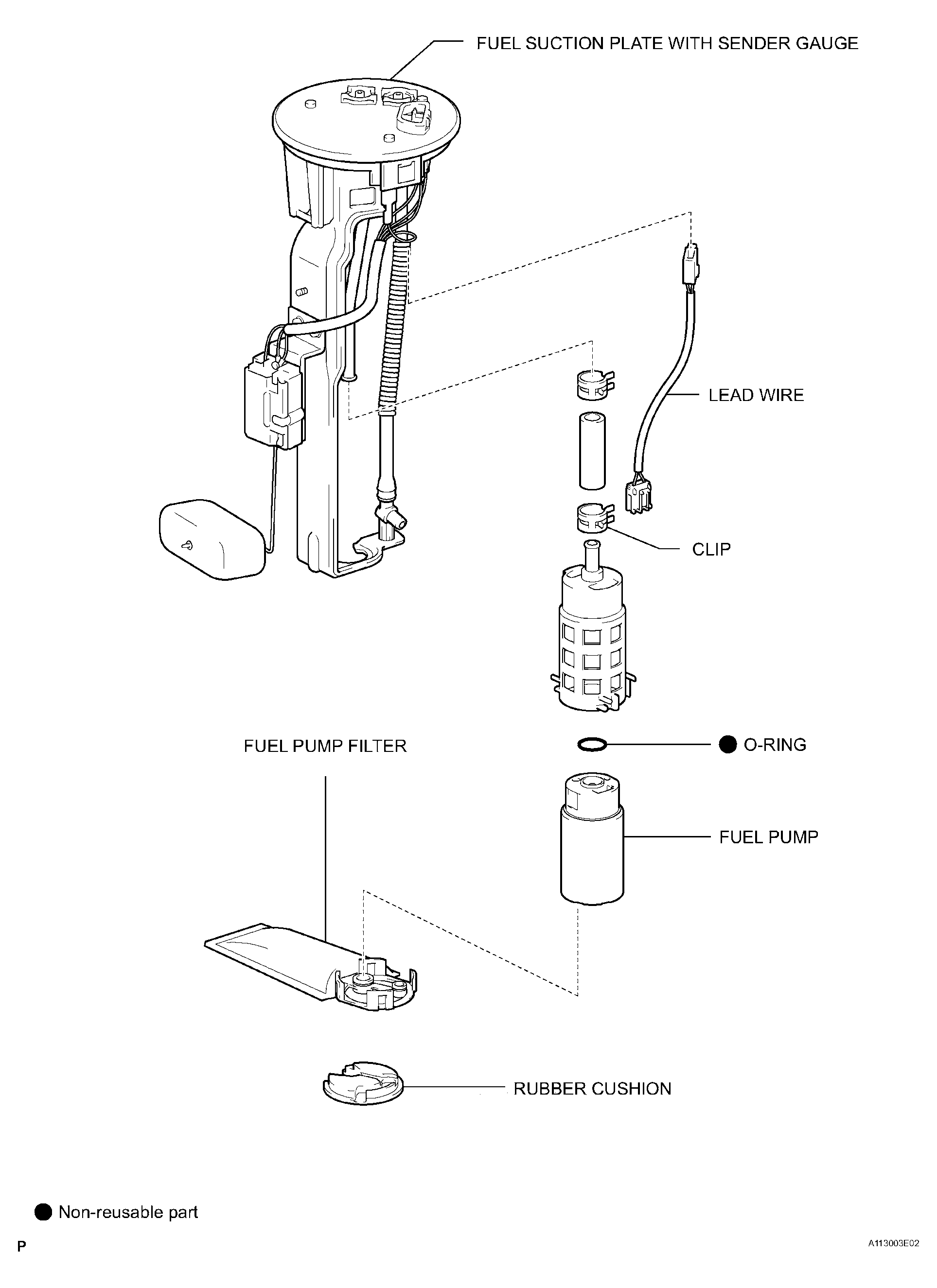

Fig 3: Replacement Components Fuel Pump With Torque Specifications (3 Of 3)
G04062157Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
