Ignition Coil: Installation

  1. INSTALL IGNITION COIL ASSEMBLY
    1. Install the ignition coil with the bolt.

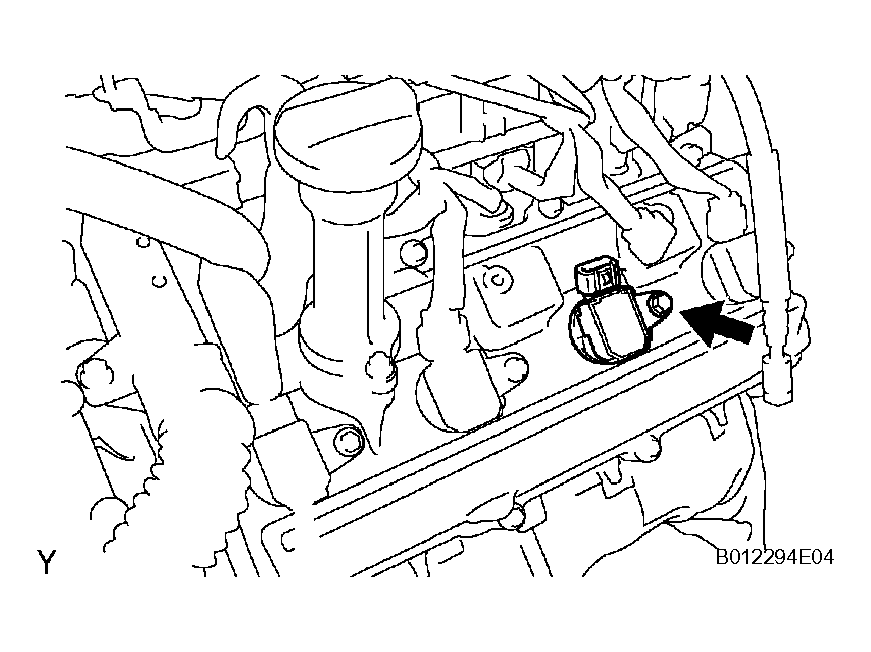

      Fig 1: Identifying Ignition Coil Bolt
      G04062457Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 7.5 N*m (76 kgf*cm, 66 in.*lbf)

    2. Connect the connector.
  2. CONNECT ENGINE WIRE
    1. Connect the 2 engine wire clamps to the cylinder head cover LH side.
  3. INSTALL INTAKE AIR CONNECTOR PIPE (See  INSTALLATION  )
  4. INSTALL V-BANK COVER SUB-ASSEMBLY (See  INSTALLATION  )
  5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  6. PERFORM INITIALIZATION
    1. Perform initialization (See INITIALIZATION ).
    NOTE: Certain systems need to be initialized after disconnecting the cable from the negative (-) battery terminal.
