Short Pin Installation During PDS (PD061-06)
Publication date: 2006-08-18Reference number: PD061-06
SHORT PIN INSTALLATION DURING PDS
TECHNICAL SERVICE BULLETIN
Reference Number(s): PD061-06, Date of Issue:
August 18, 2006
| LEXUS: | 2007 LX 470 |
| Section: | PRE-DELIVERY SERVICE |
| COPYRIGHT: | © 2018 Lexus, a division of Toyota Motor Sales, USA License Agreement TMS1002 |
Introduction
To minimize battery discharge during transportation and storage, the Short Pin has been removed at the assembly plant and temporarily stored in the engine compartment Junction Block. During Pre-Delivery Service (PDS), the Short Pin needs to be reinstalled into its original location.
Applicable Vehicles
- 2007 model year LX 470 vehicles.
Installation Procedure

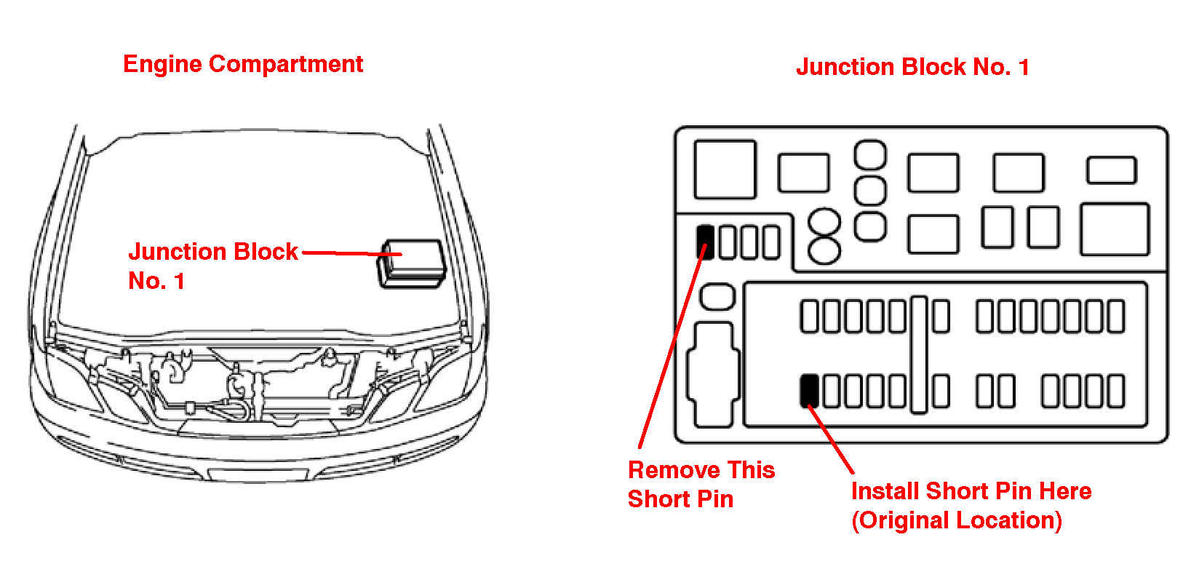

The Short Pin is stored in the blank space of Junction Block No. 1 in the engine compartment. Install the Short Pin in the Junction Block as shown.
NOTE:
- Removing the Short Pin cuts off power sources relating to the TEL, AMP, BAT, RADIO, ECU-B2, and DOME fuses.
- The Short Pin does NOT function as a fuse, so install it only in the position shown.
- If the vehicle is stored in the dealership for a long period of time after PDS, disconnect the negative (-) battery terminal to prevent battery discharge. Refer to TSIB No. PG001-06, BATTERY MAINTENANCE FOR IN-STOCK VEHICLES & PRE-DELIVERY for battery maintenance information.
Warranty Information
WARRANTY INFORMATION
| OP CODE | DESCRIPTION | TIME | OFP | T1 | T2 |
|---|---|---|---|---|---|
| N/A | Not Applicable to Warranty | - | - | - | - |
