Control Valve Assembly: Removal

1. Using SST, disconnect the 5 active height control lines.

SST 09023-00101

Torque: 15 N*m (155 kgf*cm, 11 ft.*lbf)

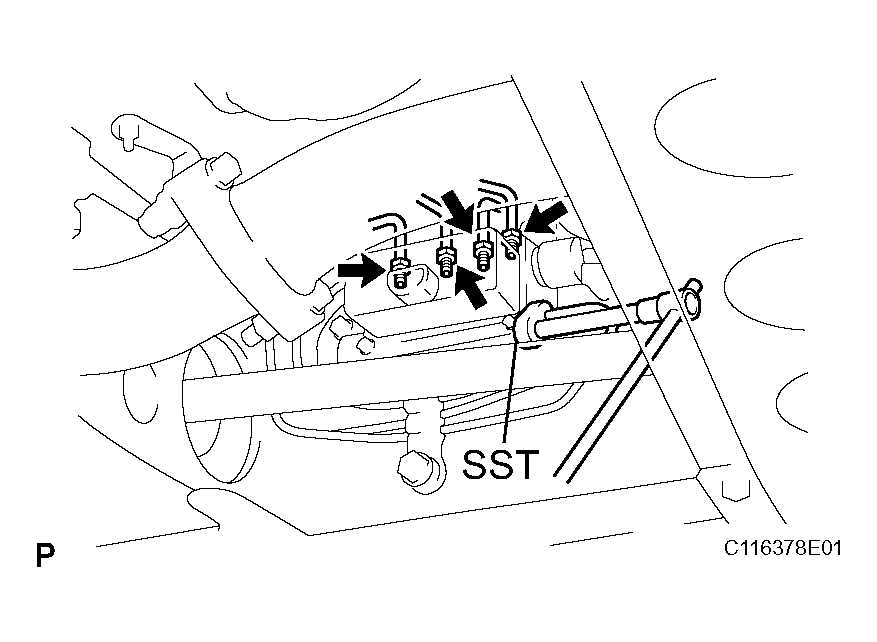

Fig 1: Disconnecting Active Height Control Lines Using SST

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the 3 nuts and control valve assembly.

   Torque: 5.5 N*m (55 kgf*cm, 48 in.*lbf)

2. Remove the 3 holders, 3 cushions and 3 cushion bolts from the control valve assembly.

   Torque: 7.8 N*m (80 kgf*cm, 69 in.*lbf)

3. Remove the 4 bolts and cover.

   Torque: 4.4 N*m (45 kgf*cm, 38 in.*lbf)

4. Remove the gasket.

HINT:

At the time of installation, replace the used gasket with a new one.
