Height Control Accumulator: Inspection

  1. INSPECT HEIGHT CONTROL ACCUMULATOR SOLENOID
    1. Disconnect the accumulator solenoid connector from the height control accumulator.
    2. Check continuity between terminals 1 and 2 of the accumulator solenoid connector.

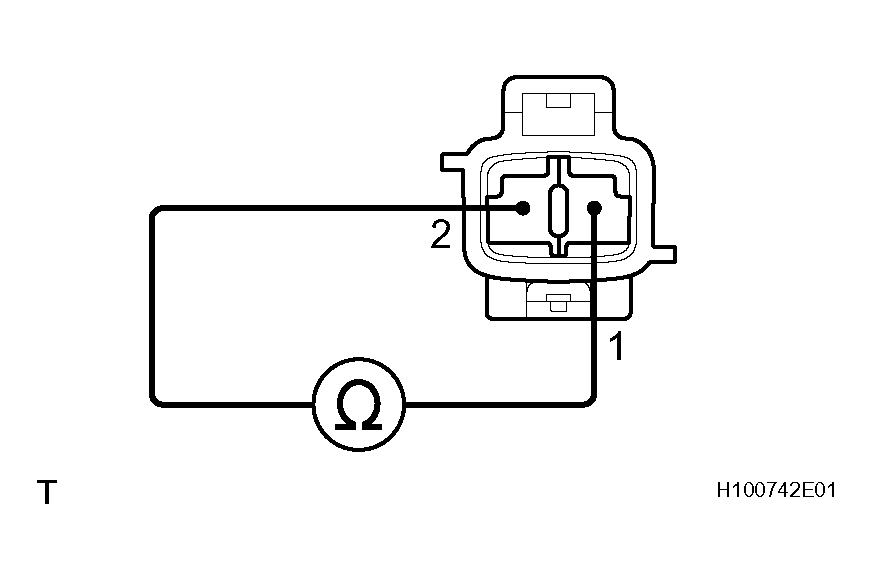

    Fig 1: Checking Continuity Between Terminals 1 And 2 Of Accumulator Solenoid Connector
    G04063624Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
