Height Control Sensor: Removal

1. REMOVE FRONT HEIGHT CONTROL SENSOR SUBASSEMBLY
   1. Remove the front wheel.

      Torque: 131 N*m (1,340 kgf*cm, 97 ft.*lbf)

   2. Disconnect the connector.
   3. Remove the front height control sensor.
      1. Place matchmarks on the height control sensor link and front upper suspension arm.
      2. Remove the nut and disconnect the height control sensor link.

         Torque: 5.6 N*m (57 kgf*cm, 49 in.*lbf)

      3. Remove the 2 bolts and height control sensor.

   Torque: 28 N*m (285 kgf*cm, 21 ft.*lbf)

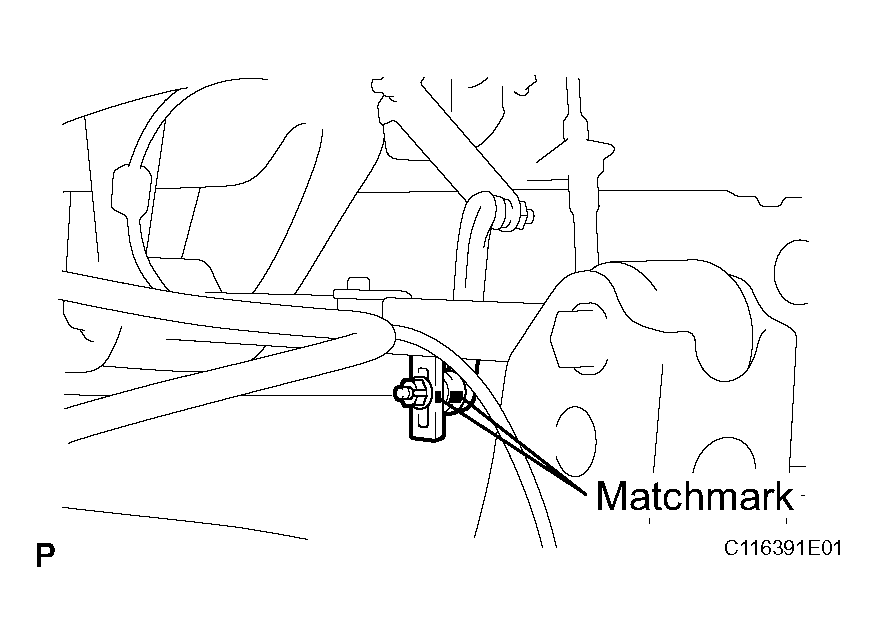

   Fig 1: Placing Matchmarks On Height Control Sensor Link And Front Upper Suspension Arm

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. REMOVE REAR HEIGHT CONTROL SENSOR SUBASSEMBLY
   1. Remove the rear wheel.

      Torque: 131 N*m (1,340 kgf*cm, 97 ft.*lbf)

   2. Disconnect the connector.
   3. Remove the rear height control sensor.
   1. Place matchmarks on the height control sensor link and rear upper control arm.
   2. Remove the nut and disconnect the height control sensor link from the rear upper arm.

      Torque: 5.6 N*m (57 kgf*cm, 49 in.*lbf)

   3. Remove the 2 bolts and height control sensor.

Torque: 28 N*m (285 kgf*cm, 21 ft.*lbf)

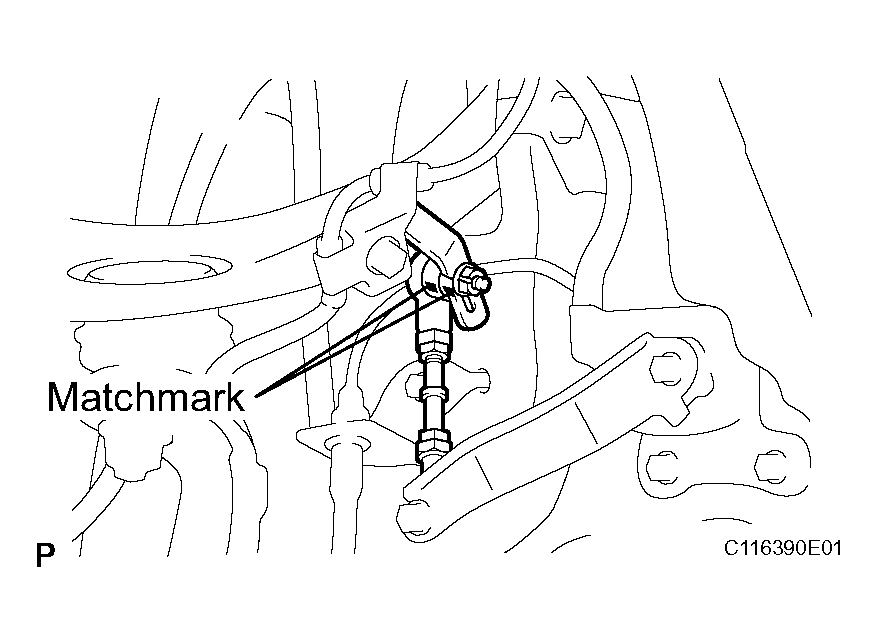

Fig 2: Placing Matchmarks On Height Control Sensor Link And Rear Upper Control

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
