Air Cooled Oil Cooler: Components

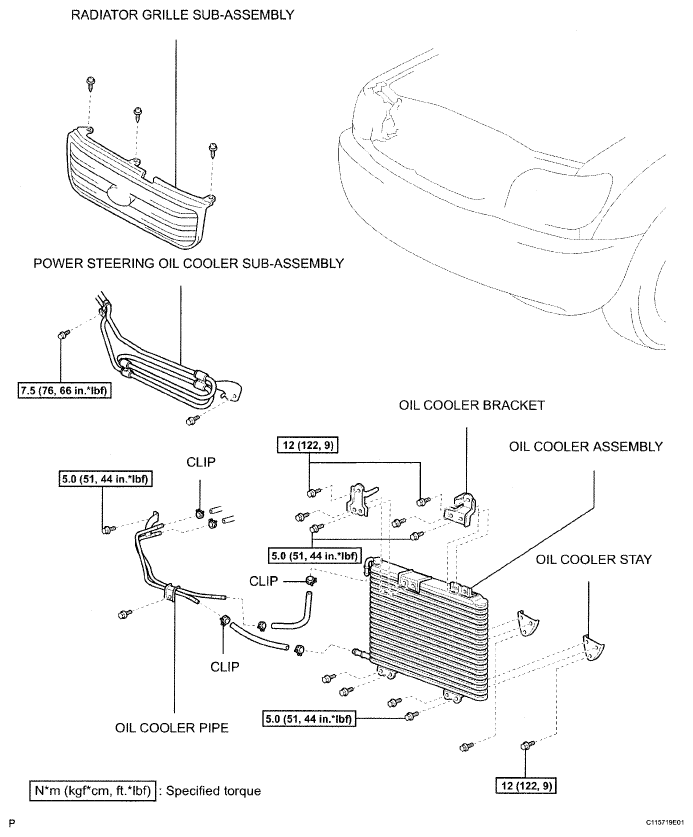

Fig 1: Air Cooled Oil Cooler Replacement Components With Torque Specifications
G05282779Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
