Pattern Select Switch 2nd Start Mode Circuit: Wiring Diagram

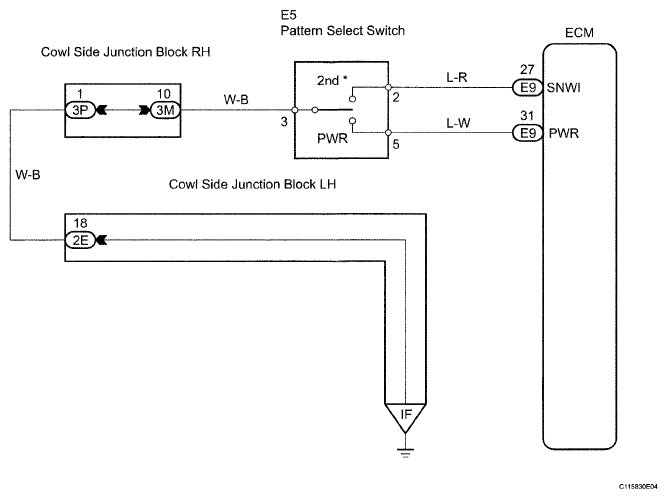

Fig 1: Pattern Select Switch 2nd Start Mode - Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

*: Pattern select switch (2nd start switch)

When the 2nd start switch is pushed, the switch contact is made and the 2nd mode is selected. To cancel the 2nd start, push the 2nd start switch once again.
